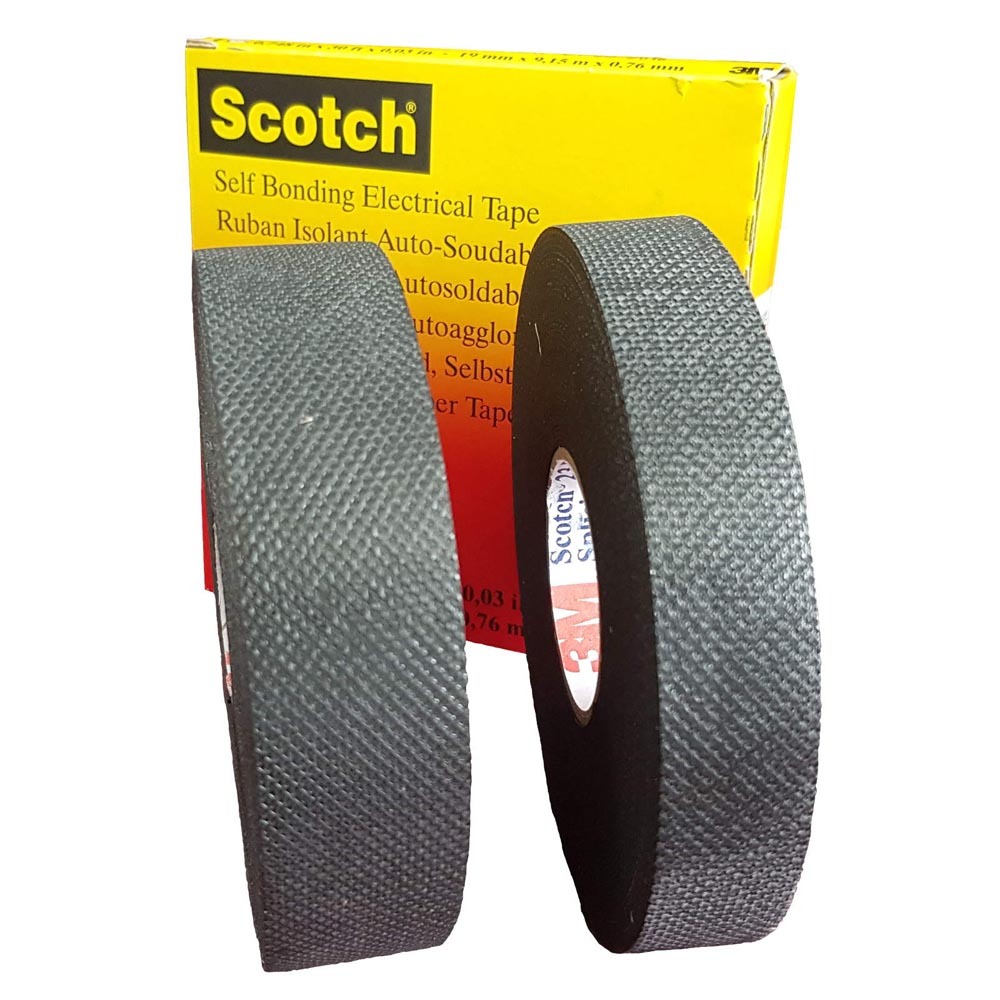

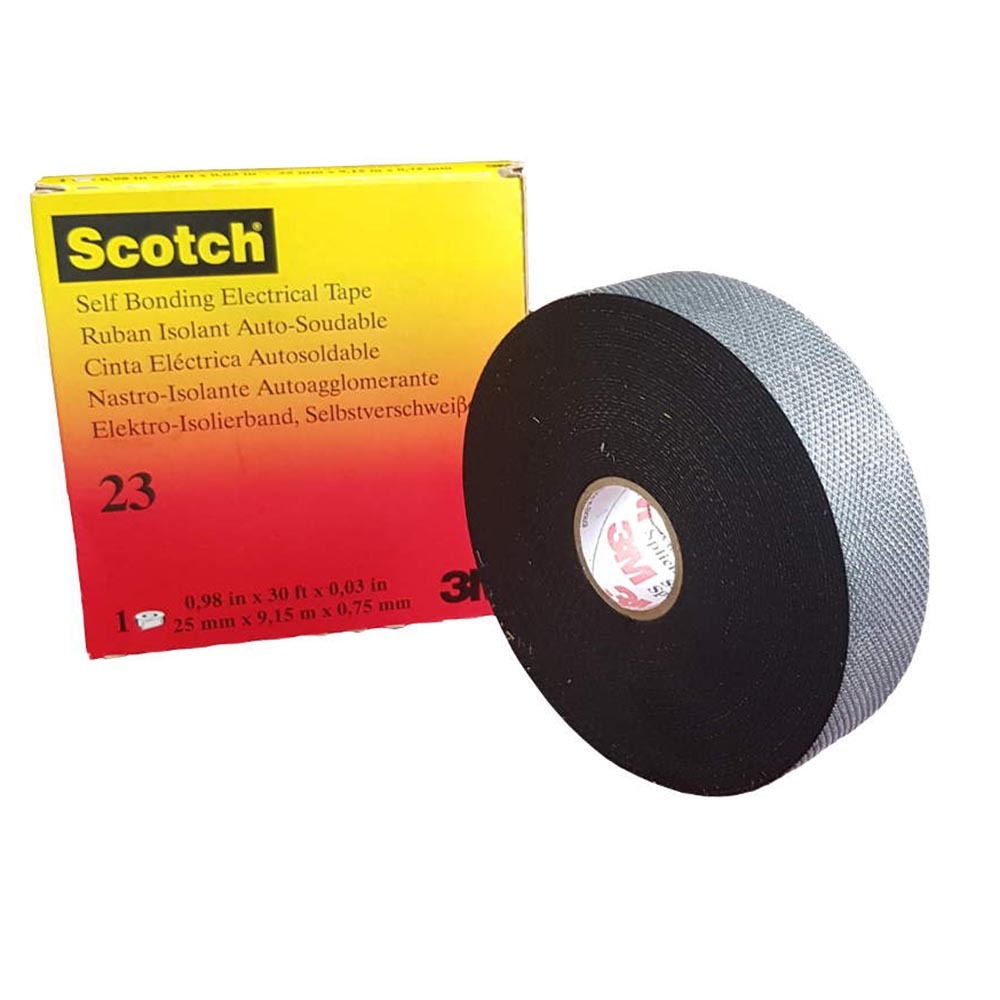

3M Scotch 23 Rubber Splicing Electrical Tape is a highly conformable, self-fusing EPR (Ethylene Propylene Rubber) based, high voltage splicing tape. It is a non-vulcanizing, shelf-stable tape with excellent electrical properties. The tape can be used as an insulation for low-voltage application as well as an insulation for splices up to 69,000 volts.
The tape is rated up to 90°C continuous operating temperature with a short term emergency operating temperature of 130°C. Applications include primary insulation for splicing all solid dielectric cables up to 69 kV , moisture sealing electrical connections and jacketing on high voltage splices and terminations. Elongation is 1000%.
Benefits
- Highly conformable
- Self-fusing
- Shelf-stable
- Excellent electrical properties
- Can be used as an insulation for low-voltage application as well as an insulation for splices up to 69,000 volts
Features
- Rated up to 90°C continuous operating temperature with a short term emergency operating temperature of 130°C
- Elongation is 1000%
- Mechanical and electrical properties unaffected by degree of stretch.
Uses & Applications
- Primary insulation for splicing all solid dielectric cables up to 69 kV
- Moisture sealing electrical connections
- Jacketing on high voltage splices and terminations
- Scotch 23 Electrical Tape is compatible with all solid dielectric cable insulation types
3M Scotch 23 Electrical Splicing Tape is a great choice for those who need a reliable and durable tape that can withstand harsh environments. It is highly conformable which makes it easy to use in tight spaces and is also self-fusing which means that it will bond to itself without the need for any additional adhesive. This makes it ideal for use in areas where there may be moisture or other contaminants present.
The tape is shelf-stable which means that it can be stored for long periods of time without losing any of its properties and is a viable option for keeping on hand for use in emergency situations where you may need to quickly repair or splice cables.
In addition to its excellent electrical properties, the tape is also rated up to 90°C continuous operating temperature with a short term emergency operating temperature of 130°C.
Overall, 3M Scotch 23 Rubber Splicing Electrical Tape is a great choice for anyone who needs a reliable and durable tape that can withstand harsh environments. Its excellent electrical properties, high conformability, self-fusing properties and shelf-stability make it ideal for use in a wide range of applications.
3M Scotch 23 Tape Key Feature Summary.
| ✔ | Highly Conformable & Easy to Work With | |
| ✔ | Excellent Electrical Insulation Strength | |
| ✔ | Self-Fusing | |
| ✔ | Shelf-Stable | |
| ✔ | Available in Two Sizes (Widths) | |
