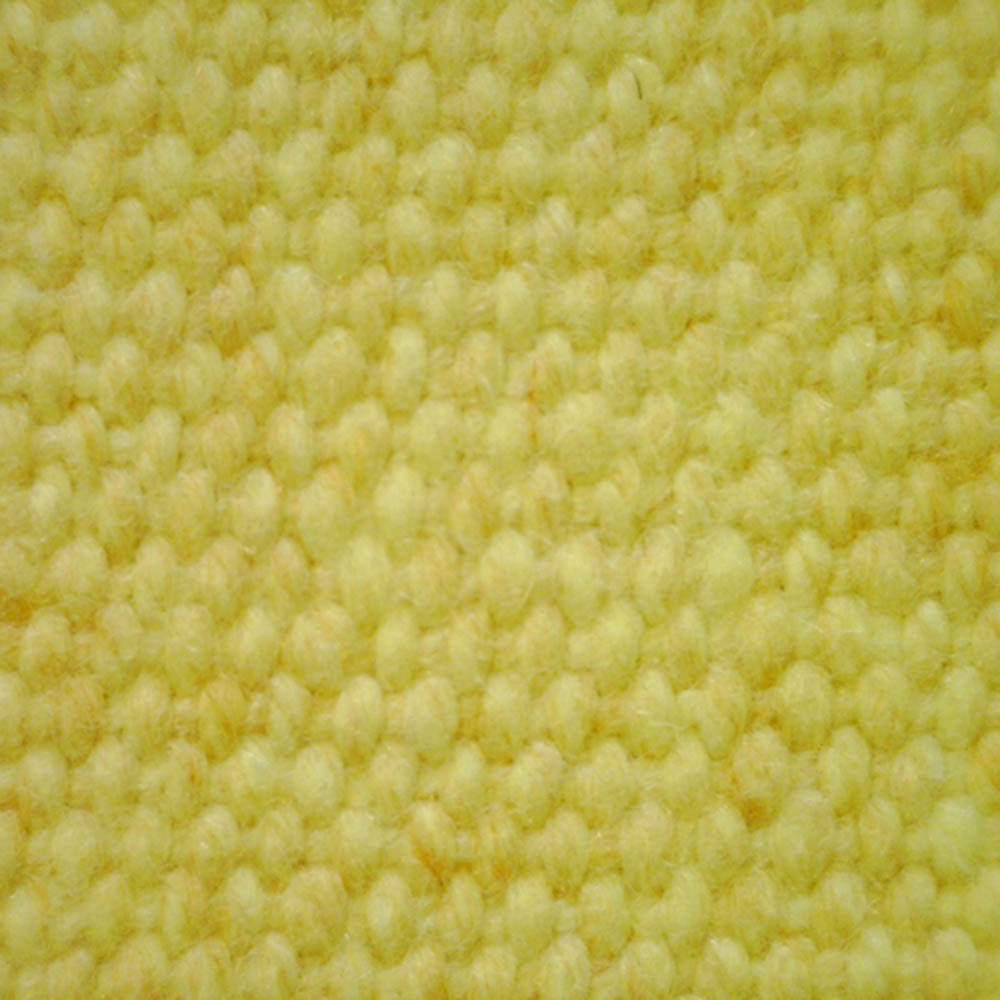

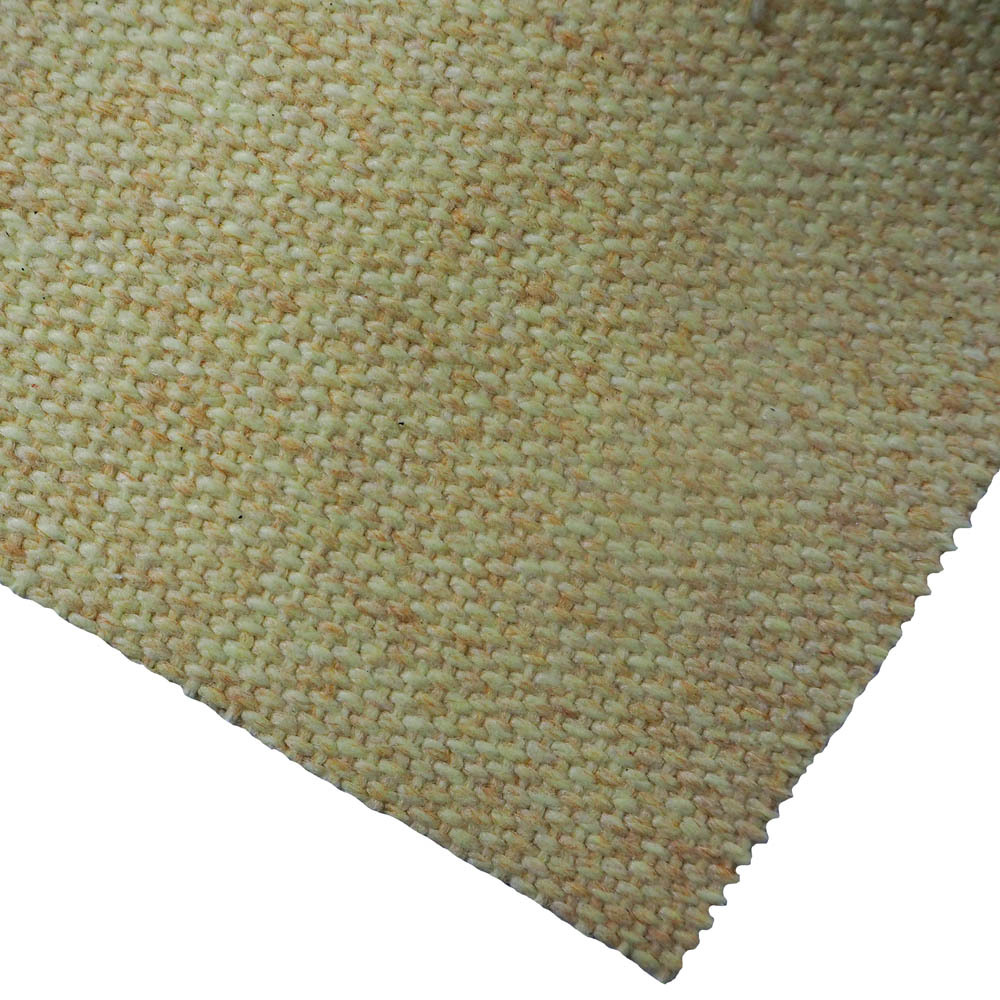

Aramid Insulation Cloth - 1.5mm Thick x 1500mm Wide, Per Metre

SKU: SWM000455B01V0001
MPN: 22PT30-60
Availability: Available for Fast Dispatch.
$111.42
INC. GST
$101.29
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 14 and pay only $99.24 each
Buy 15 or above and pay only $96.83 each
  • Extremely strong, abrasion resistant insulation fabric.
  • Withstands temperatures up to 340°C.
  • Manufactured in the USA from an Aramid Fibre blend applied over a fibreglass core.
  • Versatile heat insulation fabric used for applications that demand good physical strength, heat resistance and longevity.

Our Aramid Insulation Cloth is a high-quality thermal insulation textile manufactured in the USA. This cloth is produced using an Aramid fibre blend that is spun over a fibreglass core. These textiles are the woven into a cloth which exhibits excellent physical strength, abrasion and tear resistance.

Aramid Cloth is available be the linear metre and is a flexible, easy to work with fabric that can be wrapped, sewn or folded with ease. More information on this heat resistant fabrics properties and common uses is included below:

Aramid Cloth Heat Resistance.

Our Aramid Cloth is able to withstand continuous exposure to temperatures up to 340°C. It can also handle low temperature applications quite well. Limit is -46°C.

Physical Strength, Tear & Cut Resistance Properties.

Fabric Weight (Average) 577 gm/m²
Warp Strength 136 Kg/2.54 cm
Fill Strength 85 Kg/2.54 cm
Abrasion Resistance Very Good
Level 4 (ANSI/ISEA 105-2011)
Cut Resistance Level A7 (ANSI/ISEA 105-2016)
Cut Resistance Level 5 (EN388:2016)

Chemical and Environmental Resistance.

Our Aramid Cloth has good resistance to mildew. It also withstands attack from most chemicals and is only slightly weakened by most acid and alkali solutions.

Like most aramid fibres, our Aramid fabric is UV sensitive and is not recommended for long term use outdoors.

Popular Applications for Woven Aramid Insulation Cloth.

This tough, medium-temperature insulation cloth is used in a variety of thermal and mechanical applications throughout industry. Some of the more common ones we see include:

  • As a cut resistant fabric.
  • As a substrate / carrier fabric for silicone coating and other rubber coatings.
  • Plant and equipment protection covers, blankets and shields.
  • The manufacture of temperature resistant gasket and seals.
  • Flange and valve covers.
  • As a layer in expansion joints.
  • Manufacturing sleeves for robotic arms and production equipment.
  • Heat curtains and heat shields.
  • Pipe lagging.

How to Buy Aramid Cloth Online.

We are very pleased to offer this quality heat insulation cloth by the metre. To buy, simply follow these steps.

  1. Select the number of metres required.
  2. Add to cart and proceed through check-out.

For orders up to and including 45 metres, we will supply in a single, continuous roll. For orders over this amount, at least two rolls will be necessary as maximum length is 45.7 metres.

In addition to offering this quality cloth by the metre, we can also provide all sorts of custom made heat protection and insulation components. Sewn bellows, expansion joints, pipe wraps, pump covers, welding blankets and more are all available using one (or more) of our large range of thermal insulation materials. For more information on this service, please do contact us.

Thickness 1.5mm
Base Fabric Aramid & Fibreglass
Weave Style Plain
Coating None
Colour Yellow / Mustard
Fabric Weight (Average) 577 gm/m²
Fabric Thickness 1.54mm
Warp Strength 136 Kg/2.54 cm
Fill Strength 85 Kg/2.54 cm
Abrasion Resistance Very Good
Level 4 (ANSI/ISEA 105-2011)
Cut Resistance Level A7 (ANSI/ISEA 105-2016)
Cut Resistance Level 5 (EN388:2016)
Temperature Tolerance for
Continuous Use.
-46°C to +340°C
Chemical Resistance Good
Solvent Resistance Good
Sunlight & Ageing Resistance Poor
Electrical Properties High Dielectric Strength and Low Constants
Roll Widths 1500mm (60")
Full Roll Length 45.7 Metres (50 Yards)
SKU SWM000455B01V0001
Model # 22PT30-60
Brand HeatProtect
