BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 5 or above | and pay only $5.00 each |
Description
- Made from quality tin plated copper tube for excellent electrical connection.
- Polyamide insulation colour coded (using the French system typically used in Australia) for conductor size identification.
- UL Listed ferrules.
- Available in a large range of sizes.

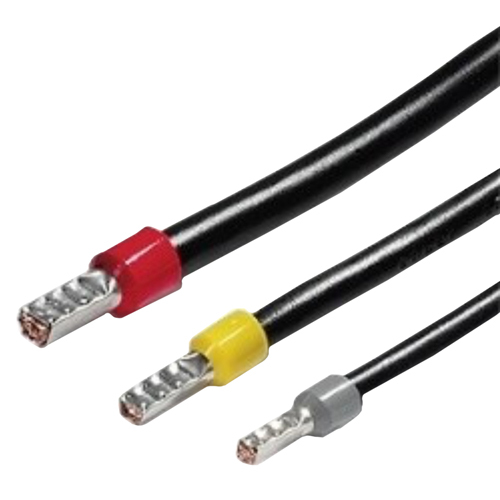

Our Single Conductor Bootlace Pin Terminals are a quality option for making electrical cable and wire connections. These pre-insulated pins are designed to be crimped to stranded copper conductors.
The tinned copper end sleeve contains the wire strands and protects the conductor prior to screw terminal insertion and fastening.

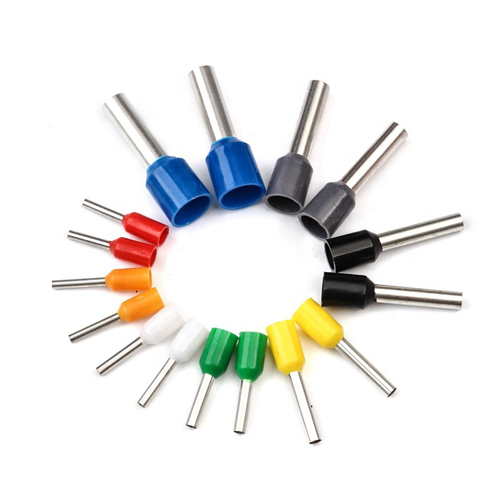

The polyamide insulation used on our ferrules is tapered to funnel the conductor strands into the pin and to protect the cable from adjacent conductors. This insulation is also colour coded using the French system which is the most common in Australia.
These high quality bootlace ferrules are UL Listed and manufactured for consistently high performance.
We are pleased to stock our Insulated Bootlace Pin Terminals in a wide range of sizes. The table below has all of our standard sizes which are available from this page.

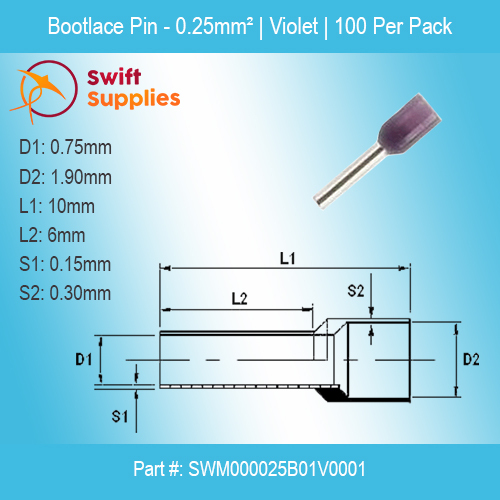

Please note: pack sizes do vary (e.g. 0.5mm² Pins are in packs of 100. 50mm² are in packs of 10). This is noted in the description for that size and the info image graphic (the picture with the blue background).

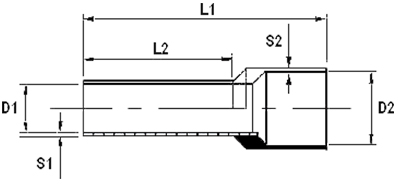

| Cable Size | All dimensions in mm. | Colour | SKU | |||||
| D1 | D2 | L1 | L2 | S1 | S2 | |||
| 0.25mm² | 0.75 | 1.90 | 10 | 6 | 0.15 | 0.30 | Violet | SWM000025B01V0001 |
| 0.34mm² | 0.80 | 1.90 | 10 | 6 | 0.15 | 0.30 | Pink | SWM000025B01V0002 |
| 0.50mm² | 1.00 | 2.60 | 14 | 8 | 0.15 | 0.30 | White | SWM000025B01V0003 |
| 0.75mm² | 1.20 | 2.80 | 14 | 8 | 0.15 | 0.30 | Blue | SWM000025B01V004 |
| 1.0mm² | 1.40 | 3.00 | 14 | 8 | 0.15 | 0.30 | Red | SWM000025B01V005 |
| 1.0mm² | 1.40 | 3.00 | 18 | 12 | 0.15 | 0.30 | Red | SWM000025B01V006 |
| 1.5mm² | 1.70 | 3.50 | 14 | 8 | 0.15 | 0.30 | Black | SWM000025B01V0007 |
| 1.5mm² | 1.70 | 3.50 | 24 | 18 | 0.15 | 0.30 | Black | SWM000025B01V0008 |
| 2.5mm² | 2.20 | 4.20 | 14 | 8 | 0.15 | 0.30 | Grey | SWM000025B01V0009 |
| 2.5mm² | 2.20 | 4.20 | 24 | 18 | 0.15 | 0.30 | Grey | SWM000025B01V0010 |
| 4mm² | 2.80 | 4.80 | 19 | 10 | 0.20 | 0.35 | Orange | SWM000025B01V0011 |
| 6mm² | 3.50 | 6.30 | 20 | 12 | 0.20 | 0.35 | Green | SWM000025B01V0012 |
| 6mm² | 3.50 | 6.30 | 26 | 18 | 0.20 | 0.35 | Green | SWM000025B01V0013 |
| 10mm² | 4.50 | 7.60 | 22 | 12 | 0.20 | 0.40 | Brown | SWM000025B01V0014 |
| 16mm² | 5.80 | 8.80 | 24 | 12 | 0.20 | 0.40 | Ivory | SWM000025B01V0015 |
| 25mm² | 7.30 | 11.20 | 28 | 16 | 0.20 | 0.40 | Black | SWM000025B01V0016 |
| 35mm² | 8.30 | 12.70 | 30 | 16 | 0.20 | 0.40 | Red | SWM000025B01V0017 |
| 50mm² | 10.30 | 15.00 | 36 | 20 | 0.30 | 0.50 | Blue | SWM000025B01V0018 |
| 70mm² | 13.50 | 16.00 | 37 | 21 | 0.40 | 0.60 | Yellow | SWM000025B01V0019 |
As with all our products, if you do have any questions, don’t hesitate to reach out and contact us. We’ll be happy to assist.
Specifications
| SKU | SWM000025B01 |
|---|---|
| Brand | VoltaStop |
