| Buy 10 - 24 | and pay only $11.40 each |
| Buy 25 or above | and pay only $10.76 each |
All our Copper Lugs are produced to suit the requirements of Australian and New Zealand standards for wall thickness and relative inside and outside diameters and suit Australian metric compression tools.

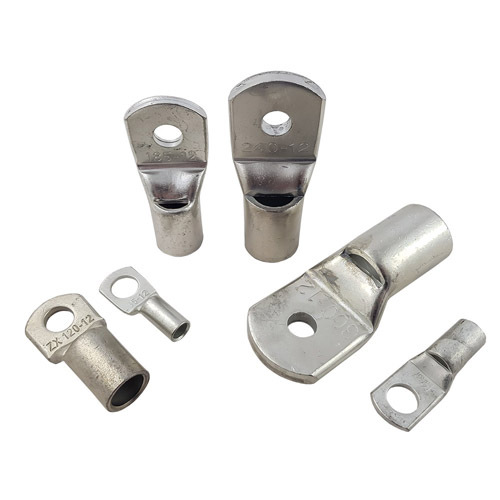

These cable lugs are produced from 99.9% pure copper extruded tube which is then cut, formed, annealed and electro tin plated. The resulting lug has its cable size and stud size pressed into the palm for easy identification.
Each of the Tinned Copper Cable Lugs in our range is available individually or in larger quantities depending on your needs.
Our range of Tinned Copper Cable Lugs are high quality, economical and stocked in over 50 sizes and variations. We stock cable lugs for the termination of cables from 1.5mm² to 300mm² with most sizes also available in a selection of stud sizes.
The lugs listed on this page are made to suit cables / wires with a 150mm² cross-section.
Swift Supplies stocks cable lugs to suit 16 sizes of cable, each with several stud size variations. Given the size of the range, we thought it prudent to include a Copper Lug Sizing Table to help you identify the right compression lug for your cable terminating job.
For more information on any size, or assistance in finding the right lugs, please do not hesitate to contact us. We’ll be happy to help.

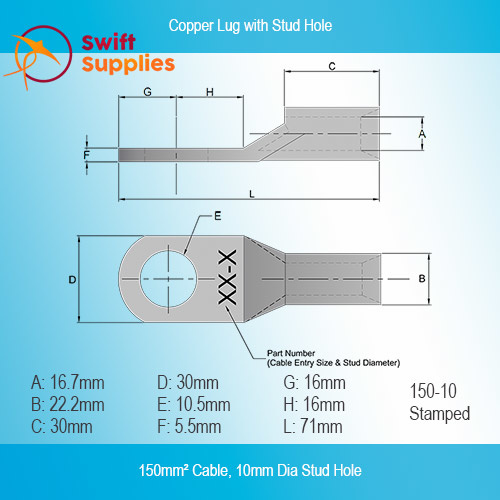

| Cable Size | Stud Ø | A | B | C | D | E | F | G | H | L | Part # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5mm² | 5 | 1.8 | 3.7 | 7.5 | 8 | 5.2 | 1 | 4 | 5 | 16 | 1.5-5 |
| 1.5mm² | 6 | 1.8 | 3.7 | 7.5 | 10 | 6.5 | 0.8 | 4 | 6 | 16 | 1.5-6 |
| 2.5mm² | 4 | 2.4 | 4 | 8 | 8 | 4.2 | 1 | 4 | 5 | 18 | 2.5-4 |
| 2.5mm² | 5 | 2.4 | 4 | 8 | 10 | 5.2 | 0.8 | 5 | 6 | 20 | 2.5-5 |
| 2.5mm² | 6 | 2.4 | 4 | 8 | 10 | 6.5 | 0.8 | 5 | 6 | 20 | 2.5-6 |
| 2.5mm² | 8 | 2.4 | 4 | 8 | 11 | 8.4 | 0.7 | 6 | 9 | 26 | 2.5-8 |
| 4mm² | 5 | 3.1 | 4.8 | 9 | 10 | 5.2 | 1 | 5 | 6 | 20 | 4-5 |
| 4mm² | 6 | 3.1 | 4.8 | 9 | 10 | 6.5 | 1 | 5 | 6 | 20 | 4-6 |
| 4mm² | 8 | 3.1 | 4.8 | 9 | 12 | 8.4 | 0.8 | 6 | 9 | 26 | 4-8 |
| 6mm² | 5 | 3.8 | 5.5 | 10 | 10 | 5.2 | 1.2 | 5 | 6 | 23 | 6-5 |
| 6mm² | 6 | 3.8 | 5.5 | 10 | 12 | 6.5 | 1 | 6 | 9 | 27 | 6-6 |
| 6mm² | 8 | 3.8 | 5.5 | 10 | 12 | 8.4 | 1 | 6 | 9 | 28 | 6-8 |
| 6mm² | 10 | 3.8 | 5.5 | 10 | 15 | 10.2 | 0.8 | 8 | 11 | 32 | 6-10 |
| 10mm² | 5 | 4.7 | 7.1 | 10 | 12 | 5.2 | 1.8 | 6 | 7 | 27 | 10-5 |
| 10mm² | 6 | 4.7 | 7.1 | 10 | 12 | 6.5 | 1.8 | 6 | 7 | 27 | 10-6 |
| 10mm² | 8 | 4.7 | 7.1 | 10 | 14 | 8.4 | 1.6 | 7 | 8 | 29 | 10-8 |
| 10mm² | 10 | 4.7 | 7.1 | 10 | 15 | 10.5 | 1.5 | 8 | 10 | 32 | 10-10 |
| 10mm² | 12 | 4.7 | 7.1 | 10 | 18 | 13 | 1 | 10 | 12 | 38 | 10-12 |
| 16mm² | 6 | 5.5 | 7.9 | 19 | 11 | 6.5 | 2.4 | 7 | 9 | 39 | 16-6 |
| 16mm² | 8 | 5.5 | 7.9 | 19 | 14 | 8.4 | 1.7 | 7 | 9 | 39 | 16-8 |
| 16mm² | 10 | 5.5 | 7.9 | 19 | 16 | 10.5 | 1.5 | 8 | 10 | 41 | 16-10 |
| 16mm² | 12 | 5.5 | 7.9 | 19 | 18 | 13 | 1.2 | 10 | 13 | 46 | 16-12 |
| 25mm² | 6 | 7.1 | 9.5 | 21 | 13.5 | 6.5 | 2.4 | 7 | 9 | 41 | 25-6 |
| 25mm² | 8 | 7.1 | 9.5 | 21 | 13.5 | 8.4 | 2.4 | 7 | 9 | 41 | 25-8 |
| 25mm² | 10 | 7.1 | 9.5 | 21 | 16 | 10.5 | 1.9 | 9 | 10 | 44 | 25-10 |
| 25mm² | 12 | 7.1 | 9.5 | 21 | 18 | 13 | 1.6 | 10 | 13 | 48 | 25-12 |
| 35mm² | 6 | 8.4 | 11.5 | 21 | 16 | 6.5 | 3 | 9 | 10 | 45 | 35-6 |
| 35mm² | 8 | 8.4 | 11.5 | 21 | 16 | 8.4 | 3 | 9 | 10 | 45 | 35-8 |
| 35mm² | 10 | 8.4 | 11.5 | 21 | 18 | 10.5 | 2.6 | 9 | 10 | 45 | 35-10 |
| 35mm² | 12 | 8.4 | 11.5 | 22 | 20 | 13 | 2.2 | 11 | 13 | 51 | 35-12 |
| 50mm² | 6 | 9.5 | 12.8 | 22 | 18 | 6.5 | 3.3 | 8 | 10 | 46 | 50-6 |
| 50mm² | 8 | 9.5 | 12.8 | 22 | 18 | 8.4 | 3.3 | 8 | 10 | 46 | 50-8 |
| 50mm² | 10 | 9.5 | 12.8 | 22 | 18 | 10.5 | 3.3 | 8 | 10 | 46 | 50-10 |
| 50mm² | 12 | 9.5 | 12.8 | 22 | 21 | 13 | 2.7 | 11 | 13 | 54 | 50-12 |
| 70mm² | 6 | 11.3 | 14.6 | 22 | 21 | 6.5 | 3.5 | 11 | 13 | 54 | 70-6 |
| 70mm² | 8 | 11.3 | 14.6 | 24 | 21 | 8.4 | 3.5 | 11 | 13 | 54 | 70-8 |
| 70mm² | 10 | 11.3 | 14.6 | 24 | 21 | 10.5 | 3.5 | 11 | 13 | 54 | 70-10 |
| 70mm² | 12 | 11.3 | 14.6 | 24 | 21 | 13 | 3.5 | 11 | 13 | 54 | 70-12 |
| 70mm² | 16 | 11.3 | 14.6 | 24 | 26 | 17 | 3 | 14 | 13 | 61 | 70-16 |
| 95mm² | 8 | 13.5 | 17.4 | 27 | 25 | 8.4 | 4 | 12 | 14 | 60 | 95-8 |
| 95mm² | 10 | 13.5 | 17.4 | 27 | 25 | 10.5 | 4 | 12 | 14 | 60 | 95-10 |
| 95mm² | 12 | 13.5 | 17.4 | 27 | 25 | 13 | 4 | 12 | 14 | 60 | 95-12 |
| 95mm² | 16 | 13.5 | 17.4 | 27 | 25 | 17 | 3.5 | 14 | 16 | 64 | 95-16 |
| 120mm² | 8 | 15.6 | 20.6 | 30 | 30 | 8.4 | 5 | 12 | 14 | 64 | 120-8 |
| 120mm² | 10 | 15.6 | 20.6 | 30 | 30 | 10.5 | 5 | 12 | 14 | 64 | 120-10 |
| 120mm² | 12 | 15.6 | 20.6 | 30 | 30 | 13 | 5 | 12 | 14 | 64 | 120-12 |
| 120mm² | 16 | 15.6 | 20.6 | 30 | 30 | 17 | 5 | 16 | 16 | 72 | 120-16 |
| 150mm² | 10 | 16.7 | 22.2 | 30 | 32 | 10.5 | 5.8 | 16 | 16 | 71 | 150-10 |
| 150mm² | 12 | 16.7 | 22.2 | 32 | 32 | 13 | 5.8 | 18 | 18 | 75 | 150-12 |
| 150mm² | 16 | 16.7 | 22.2 | 30 | 32 | 17 | 5.8 | 18 | 18 | 75 | 150-16 |
| 185mm² | 10 | 18.4 | 24.2 | 32 | 36 | 10.5 | 5.8 |
| SKU | SWM000319B01-150 |
|---|
