BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 3 or above | and pay only $326.31 each |
Description
- High dielectric strength.
- Easy to use and cures at room temperature.
- Solvent- less epoxy system.

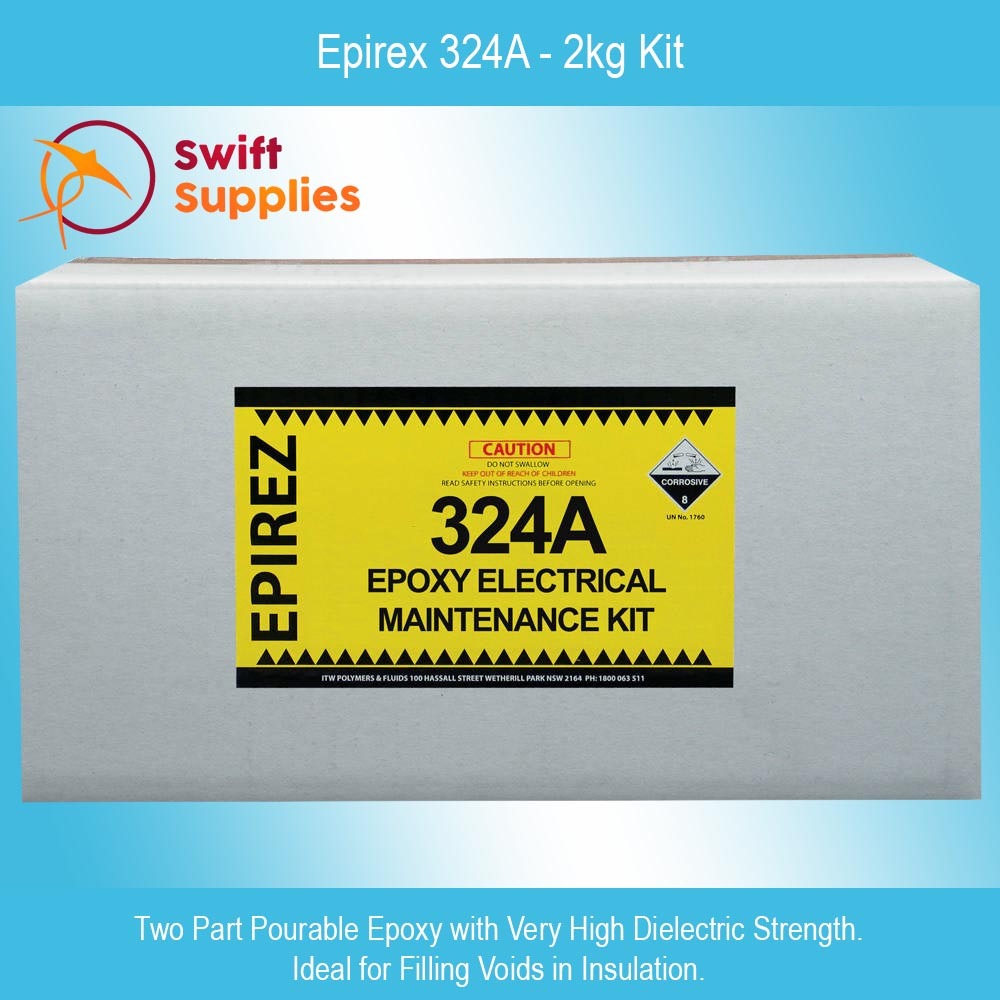

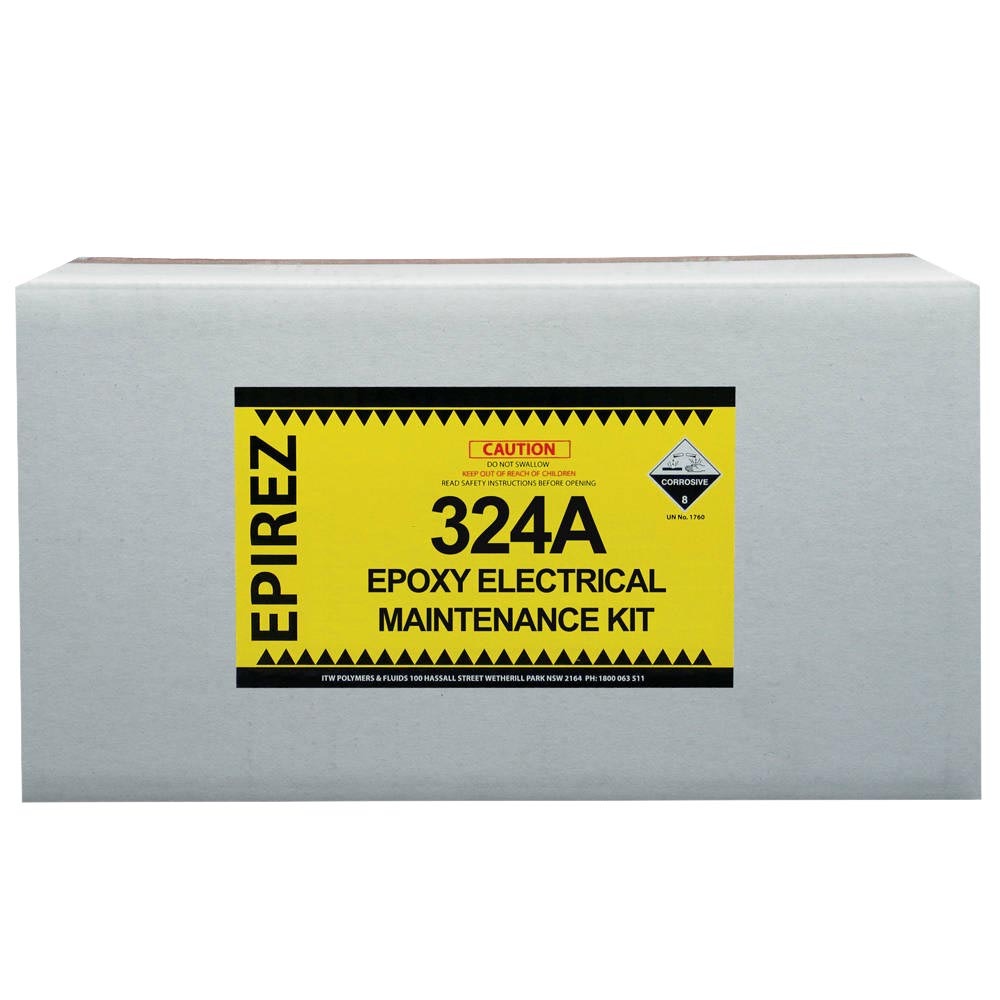

Epirez 324A is a versatile electrical epoxy that is used for encapsulating, protecting and splicing work. It is a two-part epoxy that is mixed and can be poured into voids or moulds. It then sets hard to form an insulating epoxy compound that has excellent dielectric strength.
Epirez 324A can be used in pour depths up to 20mm. Once it’s cured, it will have good impact strength and tensile strength. Typical cure time is 24 hours (@ 25°C) though this can be accelerated by heating (refer to the TDS for more information).
One of the benefits of the Epirez 324A Epoxy System is ease of use. The included mixing cups have depth markers. Simply pour the hardener up to the “H” mark in the selected column and then add the compound up to the “C” mark in the same column. Mix the two components together thoroughly.
Applications for Epirez 324A
Epirez 324A is typically used for electrical and electronic casting, protection and splicing.
Specifications
| Mixing Proportions by Volume | 3 Hardener to 4 Compound |
|---|---|
| Appearance When Mixed | Clear Liquid |
| Solids Content | 100% |
| Work Time | 30 Minutes at 25°C |
| Typical Cure Time | 24 Hours at 25°C |
| Maximum Casting Thickness | 20mm |
| Tensile Strength (Ultimate) | 63 MPa |
| Imact Strength (IZOD) | 0.7 Joule |
| Bond Strength | 17 MPa |
| Maximum Operating Temperature | 150°C |
| Volume Resistivity, 25°C | 1016 ohm.cm |
| Dielectric Strength | 315 kV/cm |
| Kit Size | 2kg (1.8ltrs) |
| Shelf Life | 2 Years |
| SKU | SWM000236B01V0001 |
|---|---|
| Brand | Epirez |
