BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 3 - 4 | and pay only $24.38 each |
| Buy 5 or above | and pay only $23.79 each |
Description
- Waterproof seals for cable entry to enclosures or bulkheads.
- High dielectric strength with good pressure resistance.
- Simple and easy to use with long lasting performance.
- Available in a variety of sizes to suit different cables.

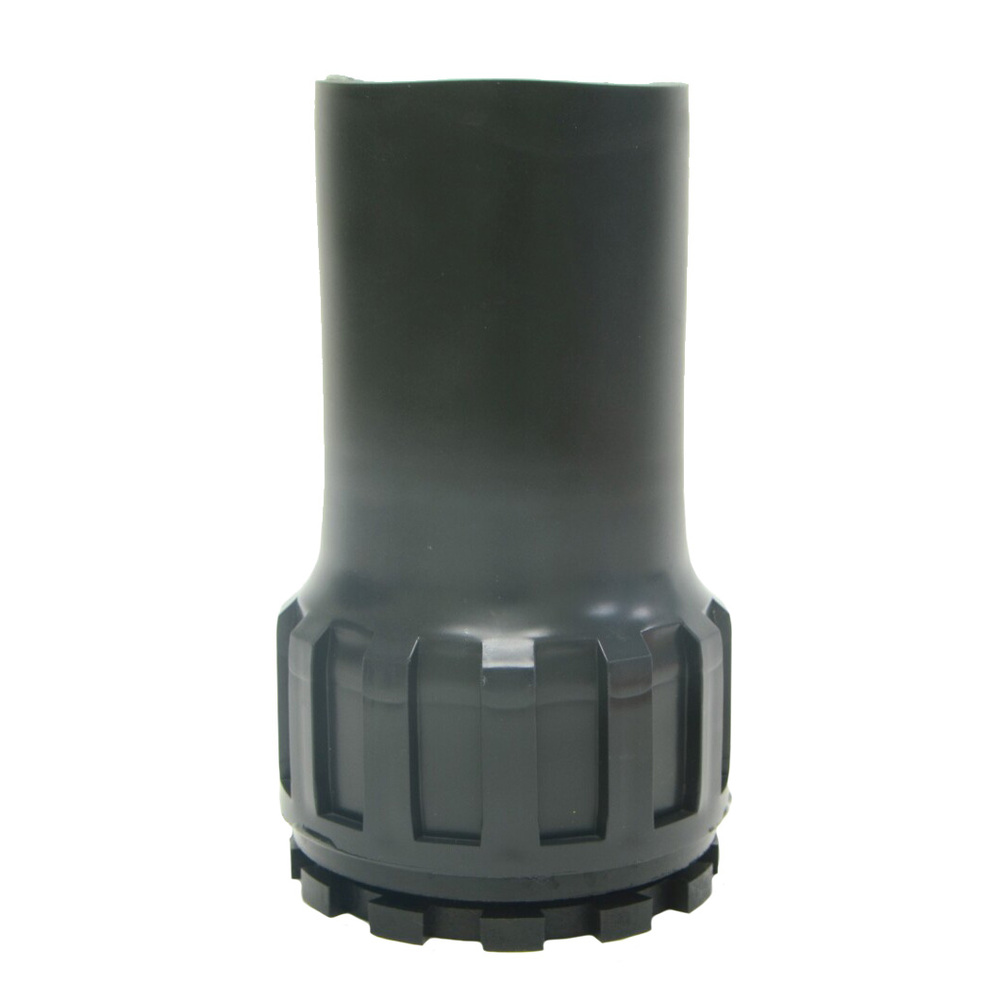

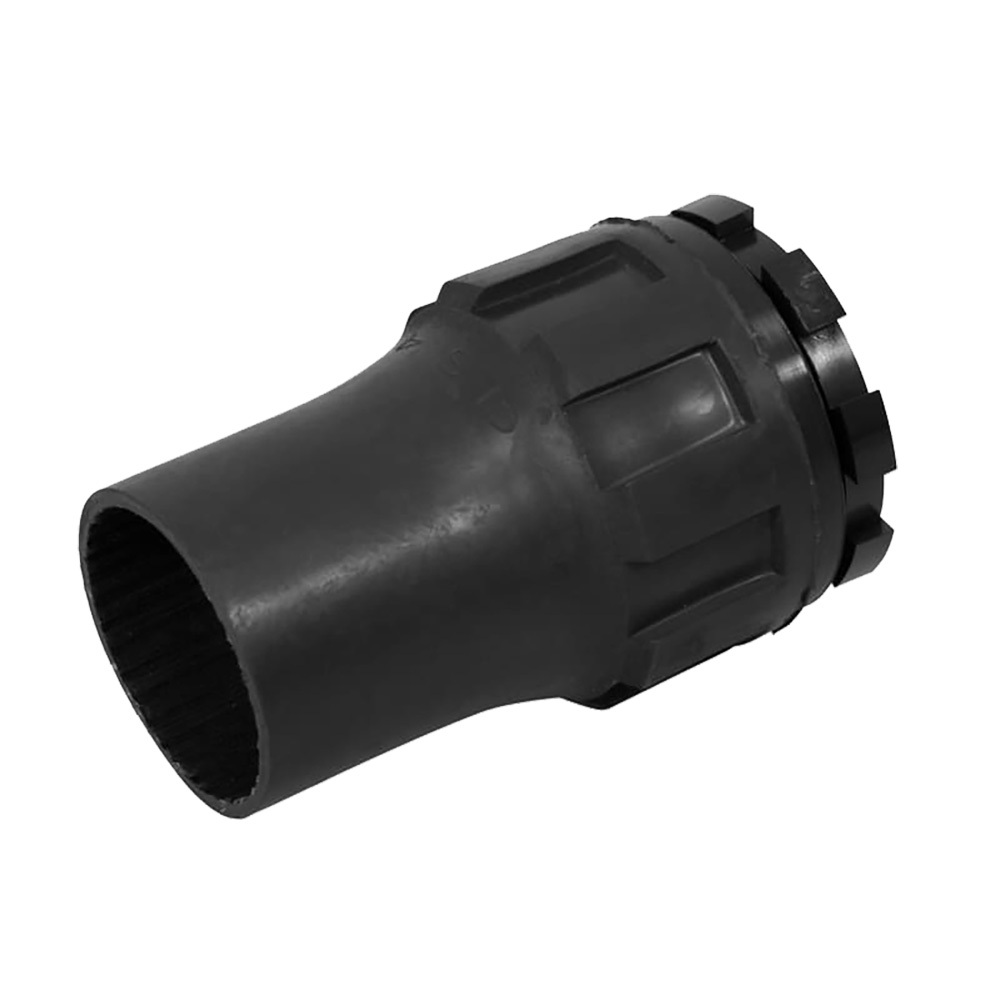

Our Heat Shrink Cable Glands are specialised products designed to create a waterproof seal for cable entry to enclosures or bulkheads. They are a 3-part product each made up of a Nylon Nut, an O Ring and a preformed heat shrink moulding.
The heat shrink part features a high shink ratio and is partially glue lined to ensure a good, lasting waterproof seal.
These quality connection seals are designed for permanent installation and lasting performance. Once installed, they will provide a robust, impact resistant cable strain relief and seal out water, dust and fumes.
All parts of our Heat Shrink Cable Glands exhibits good UV resistance making them suitable for indoor or outdoor installation. They are black in colour.
These shrinkable glands have an insulation rating of 600V.
We stock heat shrink glands in a range of sizes organised by the suggested cable size range they can accomodate. On this page you'll find options for everything from 5mm cable through to 67mm. Specifics on the various sizes available are included below:

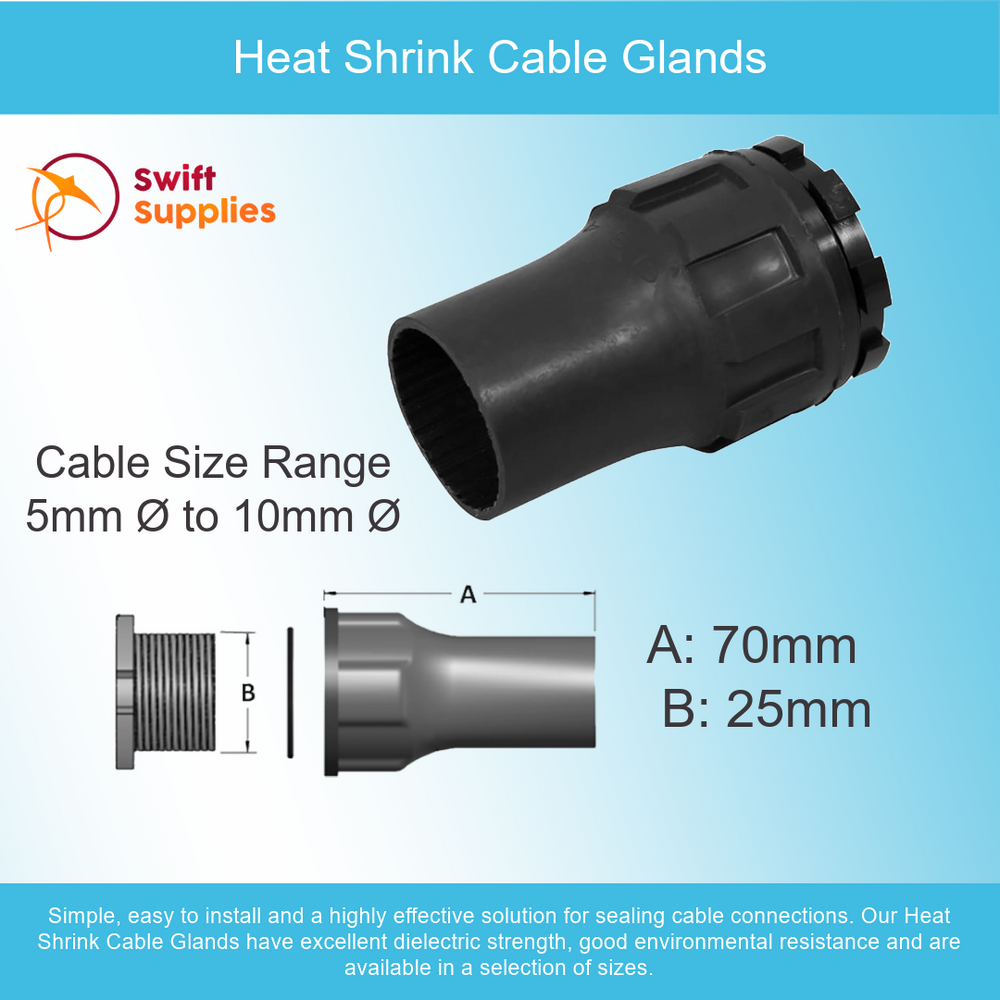

| SKU | A | B | Supplied ID | Max. Recovered ID | Suggested Cable Range |
| SWM000610B01V0001 | 70mm | 25mm | 13mm | 4.3mm | 5mm - 10mm |
| SWM000610B01V0002 | 70mm | 25mm | 19mm | 5.5mm | 6mm - 17mm |
| SWM000610B01V0002 | 95mm | 35mm | 29mm | 12.5mm | 14mm - 25mm |
| SWM000610B01V0004 | 116mm | 51mm | 39mm | 19mm | 20mm - 37mm |
| SWM000610B01V0005 | 178mm | 89mm | 70mm | 35.5mm | 37mm - 67mm |
/Image/Edit/Heat-Shrink-Gland-Dimensions%20Schematic.png)
Specifications
| Specific | Value |
|---|---|
| Colour | Black |
| Tensile Strength | 12 N/mm² (ASTM-D-638) |
| Ultimate Elongation | 350% Min. (ASTM-D-638) |
| Hardness | 45 (+/- 10) Shore D (ASTM-D-2240) |
| Specific Gravity | 1.4 (ASTM-D-792) |
| Density | 31g/cm³ (+/- 0.2) (ASTM-D-792) |
| Longtitudinal Change | -10% Max. (ASTM-D-638) |
| Dielectric Strength (2mm Wall) | 12kV/mm Min. (ASTM-D-149) |
| Dielectric Constant | 5.0 Max. (ASTM-D-150) |
| Volume Resistance | 1012 Ohm/cm Min. (ASTM-D-257) |
| Continuos Operating Temperature | -40°C to +110°C (IEC 216) |
| Heat Shock at 250°C for 30 Minutes | No Dripping, Cracking or Flowing (ESI 09-11) |
| SKU | SWM000610B01 |
|---|---|
| Brand | Matelec |
