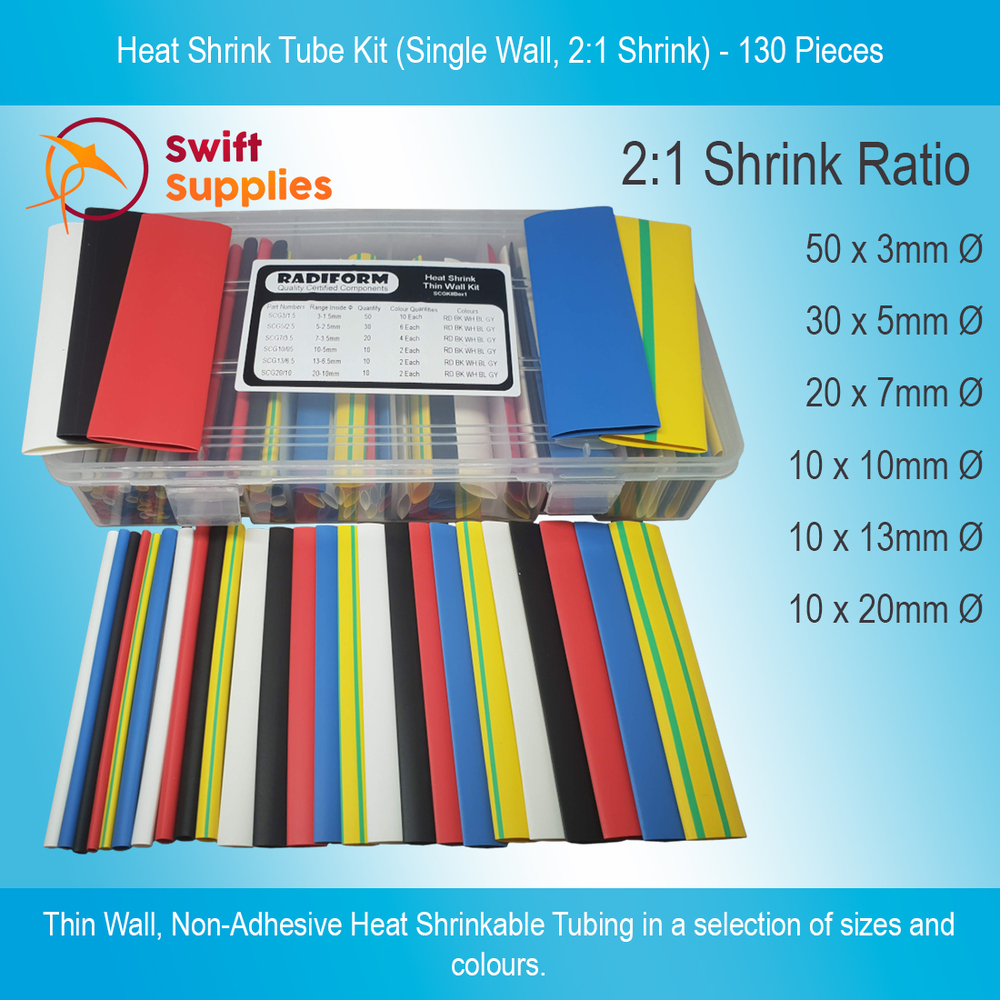

Heat Shrink Tube Kit (Single Wall, 2:1 Shrink) - 130 Pieces
- SKU:
- SWM000046B03V0001
- Availability:
- Available for Fast Dispatch.
Bulk discount rates
All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 5 | and pay only $13.99 each |
Buy 6 - 11 | and pay only $13.66 each |
Buy 12 or above | and pay only $12.85 each |
Description
- Quality Heat Shrink Tubing in a variety of colours and sizes.

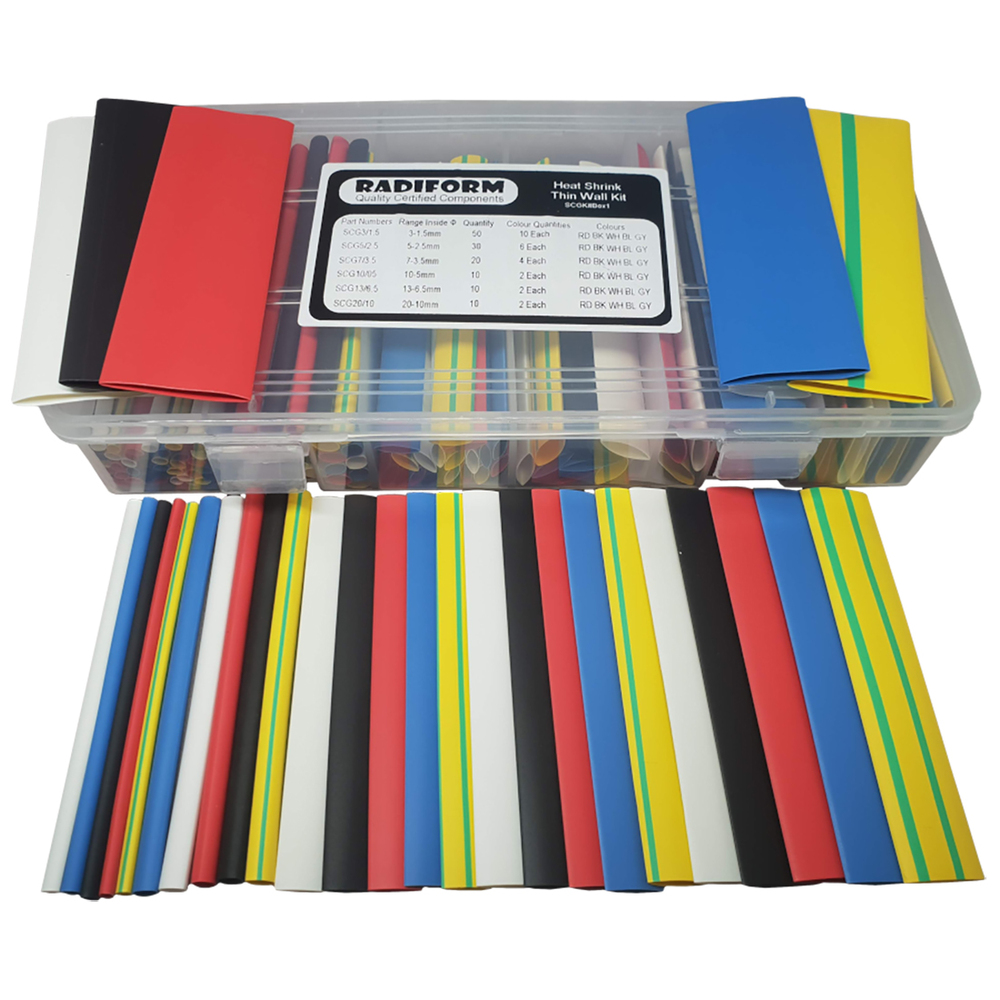

- Full kit contains 6 different sizes in Red, Black, White, Blue and Green / Yellow.
- Supplied as convenient, 100mm long pre-cut lengths.

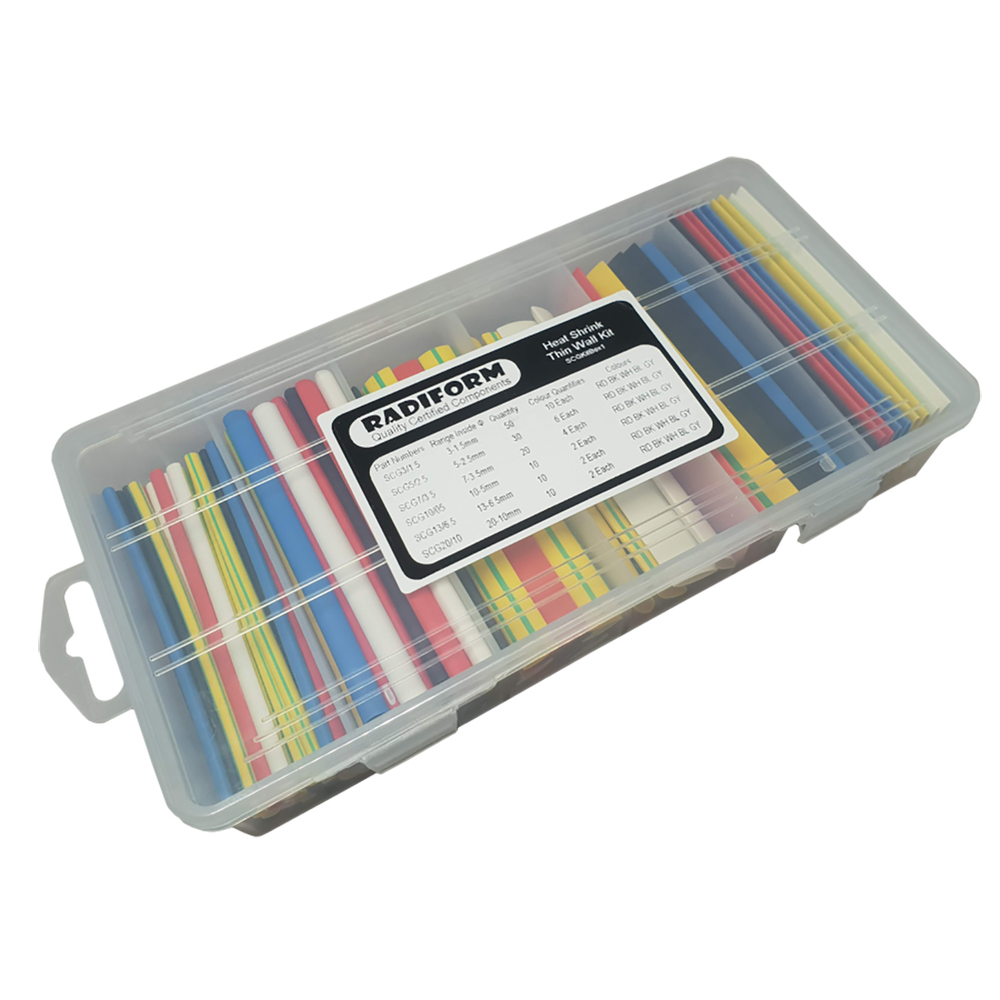

- All contained in a plastic box to keep sizes organised and tidy.
Perfect for hobbyists, tinkerers and DIY, our Thin Wall Heat Shrink Kit contains 130 pieces of various sizes and colours of heat shrink tubing. This industrial-grade heat shrink has a 2:1 shrink ratio and is flexible, reliable and easy to work with.
All the pieces contained in this kit are 100mm in length. They are not glue or adhesive lined and are categorised as a thin wall grade of heat shrink sleeve.
What’s In Our Think Wall Heat Shrink Kit.
Sleeving ID (As Supplied) |
Sleeving ID (After Shrinking) |
Total Qty | Colours | Quantity per Colour |
---|---|---|---|---|
3mm | 1.5mm | 50 | Black, Red, White, Blue & Green / Yellow | 10 |
5mm | 2.5mm | 30 | Black, Red, White, Blue & Green / Yellow | 6 |
7mm | 3.5mm | 20 | Black, Red, White, Blue & Green / Yellow | 4 |
10mm | 5mm | 10 | Black, Red, White, Blue & Green / Yellow | 2 |
13mm | 6.5mm | 10 | Black, Red, White, Blue & Green / Yellow | 2 |
20mm | 10mm | 10 | Black, Red, White, Blue & Green / Yellow | 2 |
Thin Wall Heat Shrink Technical Information.
This heat shrinkable tubing is flame retardant and self-extinguishing. It is rated for up to 600 volts and is UV stabilised for good, long-lasting performance. All colours in the kit (except for Green / Yellow) meet ROHS compliance standards.
Our Thin Wall Heat Shrink Tubing has good resistance to most chemicals, copper corrosion and fungus. Once shrunk, it will withstand temperatures between -55°C and +125°C.
For more information on the technical properties of this heat shrinkable sleeving, please consult the specifications tab.
Applications for Thin Wall Heat Shrink.
- Insulating and protecting cable and wire joins.
- Wire harnessing.
- Bundling cables and wires.
- Colour coding of wires, cables, leads and components.
- As a protective layer for underlying insulation.
Heat Shrink Tube to Lay Flat Internal Dimensions Table.
Heat Shrink Tube ID (As Supplied) | Lay Flat ID |
---|---|
5mm Ø | 8mm |
7mm Ø | 11mm |
10mm Ø | 16mm |
13mm Ø | 20mm |
20mm Ø | 31mm |
Heat Shrink Tube, Thin Wall, Non-Adhesive Specifications and Technical Details
Specification | Value | Standard |
---|---|---|
Shrink Ratio | 2 : 1 | |
Continuous Operating Temperature | -55°C to +125°C | IEC 216 |
Low Temperature Flexibility | -55°C | ASTM D-2671 |
UL Max. Temperature | 125°C | UL94, VW1 |
Dielectric Strength | >20 kV/mm | ASTM D-2671 |
Dielectric Constant | 3.0 Max | ASTM D-150 |
Volume Resistance | 1016 Ohm/cm | ASTM D-257 |
Tensile Strength | 16 N/mm² | ASTM D-638 |
Maximum Elongation | 300% | ASTM D-638 |
Longtitudinal Change | >3% | ASTM D-638 |
Water Absorption | 0.15% Max. | ASTM D-570 |
Fungus Resistance | Inert | MIL-1-7444 |
Copper Corrosion | Good | ASTM D-2671 B |
Chemical Resistance | Good | |
Flammability | Pass | UL 2324-VW1 |
Heat Shock @ 250°C for 4 Hours | No dripping, cracking or flowing | |
Specifications @ Approvals |
|
Heat Shrink Tube FAQ's
How will I know when it’s stopped shrinking?
There’s no real way to tell other than direct observation.
How long does it take to shrink?
Technically, it depends on the degree of heat applied. That said, we’re guessing you’re after a general answer. In that case we can safely say that it’s seconds, not hours. If you can’t see it shrinking it’s either because it has as much as it can or there’s not enough heat being applied.
What’s the easiest way to get them to shrink?
This really depends on what you have available. A heat gun is ideal though a simple hair dryer will do the trick. We don’t encourage it for safety reasons but we do know (from experience we’re sorry to admit) that a naked flame from a lighter will do the job as well.
How to I cut it?
Scissors, Stanley knife, steak knife or any sharp implement will do the jo
Additional Information
Colour: |
Black |
Colour: |
Red |
Colour: |
White |
Colour: |
Blue |
Colour: |
Green / Yellow |
Diameter: |
3mm |
Diameter: |
5mm |
Diameter: |
7mm |
Diameter: |
10mm |
Diameter: |
13mm |
Diameter: |
20mm |
Minimum Continuous Temperature: |
-5°C |
Maximum Continuous Temperature: |
155°C |
Dielectric Strength: |
>20 kV/mm |
Elongation at Break: |
300% |
Food Grade / Potable Water Approvals?: |
No |
