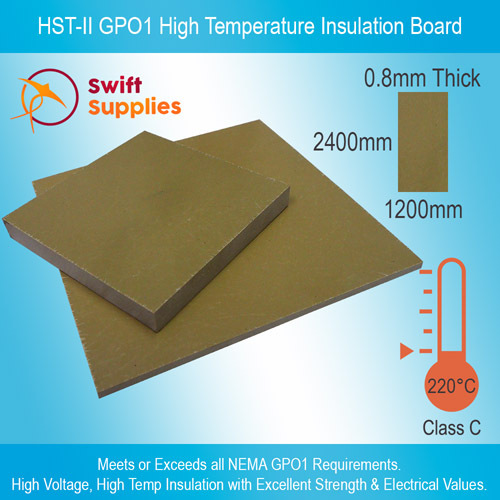

HST-II GPO1 High Temperature Insulation Board 0.8mm x 1200mm x 2400mm

• High Temperature Electrical Insulation Board Rated for up to 220°C.
• Achieved the Highest Thermal Recognition Rating ever granted by UL, Inc.
• Strong Polyester Laminate with Excellent Dielectric Strength.
• Available in a (very) Large Selection of Thicknesses as well as custom parts upon request..

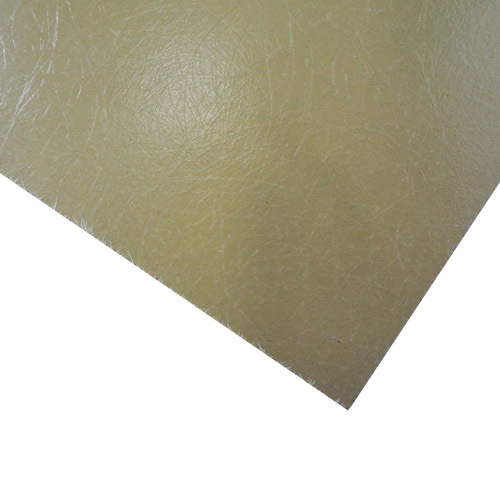

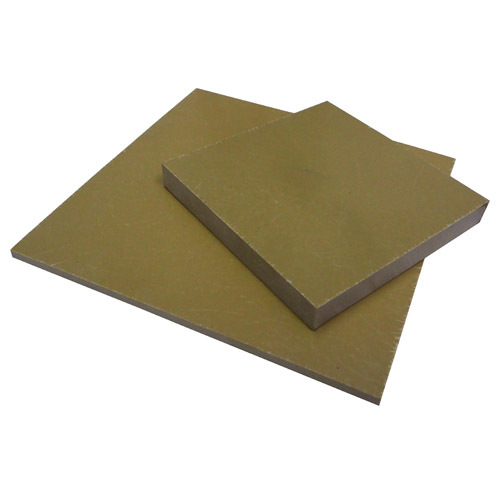

Our Haysite HST-II is a very high quality, rigid, electrical insulation board with excellent thermal properties. This material is made from omnidirectional strands of fibreglass that are encased in a thermoset polyester resin. The result is a tough, high strength board that can be machined or cut with prevision.

HST-II meets or exceeds all requirements of a GPO-1 Electrical Insulation Material. It is typically used for making insulating parts for high voltage transformers, D.C. Motors and other applications that require a strong insulation material with excellent temperature resistance.

This quality grade of rigid insulating board is manufactured in the USA and used around the world. Some of its capabilities and benefits include:

Excellent Electrical Strength.

Haysite HST-II exhibits excellent dielectric strength and electrical insulation properties. Performance capabilities of this material are summarised in the table below:

High Mechanical Strength for Precision Machining.

HST-II GPO1 Board is manufactured using a high strength polyester resin that is reinforced throughout with omnidirectional strands of fibreglass. This construction makes it ideal for machining as the scattered nature of the fibreglass means that delamination of the layers is not of concern (unlike epoxy glass which has a more layered construction).

HST-II has a high tensile strength, compressive strength and density. These attributes (and more) are detailed below:

Typical Applications for HST-II GPO1 Insulation Material.

GPO1 Electrical Insulation Boards are commonly used for making rigid insulation parts for high voltage transformers, electric motors or electrical devices running at elevated temperatures. Some of the more common applications we’ve seen include:

• Structural insulation parts for HV transformers.
• Coil cheeks for electric motors running at Class H or Class C.
• High voltage slot wedges for high temperature electric motors.
• Coil support rings.
• Insulating panels and washers for high temperature devices.

Comprehensive Range of Thicknesses.

Here at Swift Supplies, we are very proud to offer our Haysite HST-II Rigid Electrical Insulation Board in a comprehensive selection of thicknesses. These range from 0.8mm though to 50.8mm thick. The full list is included below:

This page lists our range of rull sheets of this insulation material.

Our online store also has this material in a number of other sheet sizes. Links to these are included below.

We are also pleased to offer all kinds of fabricated washers, strips, panels and parts made from this material. For information on these, please do contact us.
