HST-II GPO1 High Temperature Insulation Board 0.8mm x 300mm x 300mm
BULK DISCOUNT RATES
Buy 5 or above | and pay only $12.85 each |
Buy 5 or above | and pay only $12.85 each |

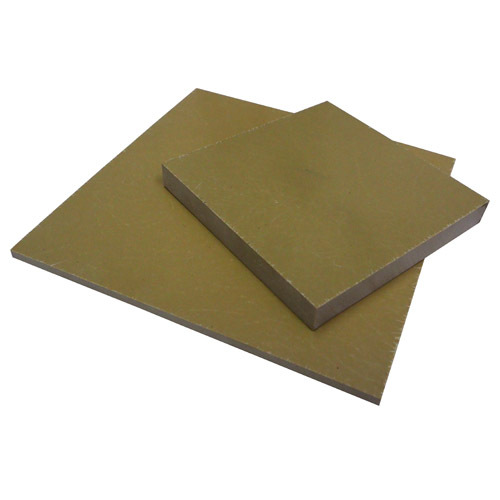

Our Haysite HST-II is a very high quality, rigid, electrical insulation board with excellent thermal properties. This material is made from omnidirectional strands of fibreglass that are encased in a thermoset polyester resin. The result is a tough, high strength board that can be machined or cut with prevision.
HST-II meets or exceeds all requirements of a GPO-1 Electrical Insulation Material. It is typically used for making insulating parts for high voltage transformers, D.C. Motors and other applications that require a strong insulation material with excellent temperature resistance.
This quality grade of rigid insulating board is manufactured in the USA and used around the world. Some of its capabilities and benefits include:
Haysite HST-II exhibits excellent dielectric strength and electrical insulation properties. Performance capabilities of this material are summarised in the table below:
Property | Value | Test Method / Standard |
Dielectric Strength, Short Time In Oil, 1.6mm | 400 VPM | D-149 |
Dielectric Strength, Parallel, Step-By-Step In Oil, KV | 62.0 KV | D-149 |
Arc Resistance | 150 Seconds | D-495 |
Dielectric Constant @60HZ | 4.2 | D-150 |
Dissipation Factor @ 60 Hz | 0.01 | D-150 |

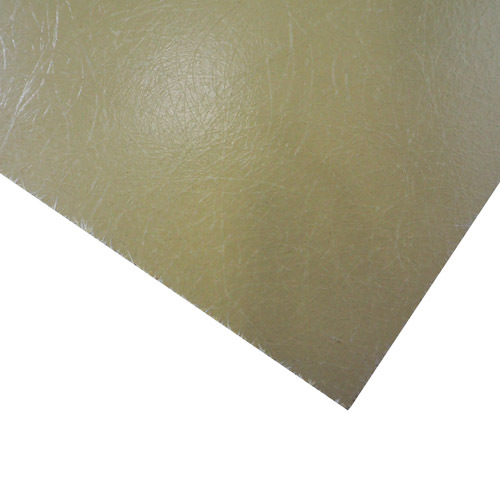

HST-II GPO1 Board is manufactured using a high strength polyester resin that is reinforced throughout with omnidirectional strands of fibreglass. This construction makes it ideal for machining as the scattered nature of the fibreglass means that delamination of the layers is not of concern (unlike epoxy glass which has a more layered construction).
HST-II has a high tensile strength, compressive strength and density. These attributes (and more) are detailed below:
GPO1 Electrical Insulation Boards are commonly used for making rigid insulation parts for high voltage transformers, electric motors or electrical devices running at elevated temperatures. Some of the more common applications we’ve seen include:
Here at Swift Supplies, we are very proud to offer our Haysite HST-II Rigid Electrical Insulation Board in a comprehensive selection of thicknesses. These range from 0.8mm though to 50.8mm thick. The full list is included below:
0.8mm | 3.2mm | 8mm | 15.9mm | 31.75mm |
1.6mm | 4.8mm | 9.5mm | 19mm | 38.1mm |
2.4mm | 6.4mm | 12.7mm | 25.4mm | 50.8mm |
This page lists our range of small sheets of this insulation material.
Our online store also has this material in a number of other sheet sizes. Links to these are included below.
We are also pleased to offer all kinds of fabricated washers, strips, panels and parts made from this material. For information on these, please do contact us.
Property | Value | Test Method / Standard |
---|---|---|
Colour | Brown | - |
Density | 1,384 kg/m³ | - |
Specific Gravity | 1.62 | D-792 |
Water Absorption | 0.03% | D-229 |
UL Flammability | HB | UL94 |
Flame Resistance | ||
Ignition Time | 77 Seconds | D-229 |
Burning Time | 256 Seconds | D-229 |
Coefficient of Thermal Expansion | 2.9 x 10-5 In./In./°C | D-696 |
Temperature Class | 220°C | - |
Property | Value | Test Method / Standard |
---|---|---|
Tensile Strength | 13,000 PSI | D-638 |
Flexural Strength | 25,000 PSI | D-790 |
Modulus of Elasticity in Flexure | 1.7 X106PSI | D-790 |
Compressive Strength | 33,000 PSI | D-695 |
Bond Strength 12.7mm Thickness |
1,400 PSI | D-229 |
Shear Strength | 14,000 PSI | D-732 |
Impact Strength Izod, Edgewise |
10.1 Ft lbs/In. Notch | D-256 |
Property | Value | Test Method / Standard |
Dielectric Strength, Short Time In Oil, 1.6mm | 400 VPM | D-149 |
Dielectric Strength, Parallel, Step-By-Step In Oil, KV | 62.0 KV | D-149 |
Arc Resistance | 150 Seconds | D-495 |
Dielectric Constant @60HZ | 4.2 | D-150 |
Dissipation Factor @ 60 Hz | 0.01 | D-150 |
SKU | SWM000372P01-Sml |
---|---|
Brand | Haysite |
Technical Data Sheet.
Haysite HST-II GPO1 High Temperature Insulation Board TDS |
