15NB Table D & E BS3063 Full Face Gasket, 3mm Neoprene Rubber
BULK DISCOUNT RATES
Buy 10 - 24 | and pay only $1.02 each |
Buy 25 - 49 | and pay only $0.98 each |
Buy 50 or above | and pay only $0.94 each |
Buy 10 - 24 | and pay only $1.02 each |
Buy 25 - 49 | and pay only $0.98 each |
Buy 50 or above | and pay only $0.94 each |

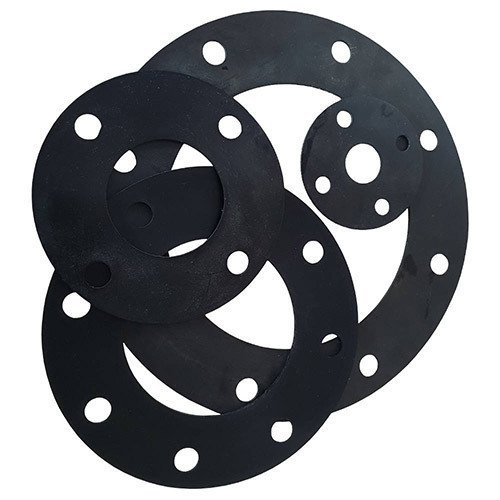

Neoprene Rubber Flange Gaskets are widely used for sealing pipelines and tanks that operate at low pressure and temperatures.
This versatile, economical rubber material is ideal for these applications as it offers a good combination of economy, performance, reliability and versatility. It is used in sealing applications where temperatures are between -20°C and +100°C.
These gaskets are cut from our industrial grade Neoprene Rubber Sheet to suit BS 3063 flanges 15NB through 600NB) in Table D and/or Table E.
This is a 60 Duro (±5) Shore A Neoprene Rubber that is black in colour. For more information on it, please consult our Neoprene Rubber Technical Data Sheet or our comprehensive Rubber Chemical Compatibility guide. For more info on the gaskets, read on.
The gaskets featured on this page are all cut to suit BS 3063 Flanges in either Table D or Table E configurations (the two most common). In some pipe nominal bores (e.g. 15NB, 80NB) there’s no difference in gasket size between Table D or Table E (the gasket fits both). In others, there are differences in number of holes or hole diameter.
Where there are differences between Table D and Table E; both are offered. Where there are no differences, a single gasket is listed here which will suit both. The sizing tables below provide more information on which nominal bores use the same gasket and which require their own size.
All the gaskets listed on this page are Full Face rubber gaskets. These are so-named because they take up the full flange face and cover the bolt holes. Both ring and full-face gaskets can be used on these flanges depending on particular requirements and user preferences. You can browse our range of Neoprene Ring Gaskets for BS3063 Table D & E Flanges here.
All Dimensions below are given in millimeters (mm).
Flange Nominal Bore |
Gasket OD | Gasket ID | Number of Holes |
Hole Diameter |
PCD | Matches Table |

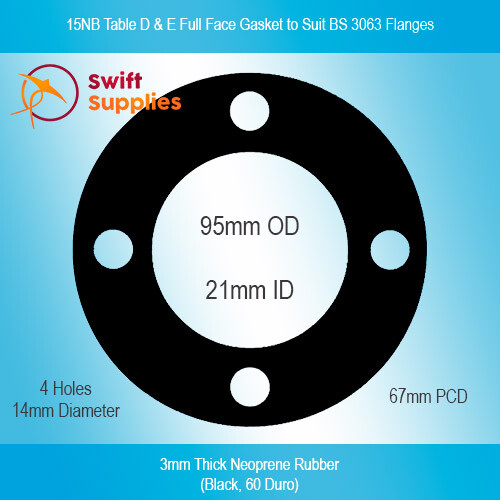

15NB | 95 | 21 | 4 | 14 | 67 | E |
20NB | 102 | 27 | 4 | 14 | 73 | E |
25NB | 114 | 34 | 4 | 14 | 83 | E |
32NB | 121 | 43 | 4 | 14 | 87 | E |
40NB | 133 | 48 | 4 | 14 | 98 | E |
50NB | 152 | 60 | 4 | 19 | 114 | E |
65NB | 165 | 76 | 4 | 19 | 127 | E |
80NB | 184 | 89 | 4 | 19 | 146 | E |
90NB | 203 | 102 | 4 | 19 | 165 | - |
100NB | 216 | 114 | 4 | 19 | 178 | - |
125NB | 254 | 140 | 8 | 19 | 210 | E |
150NB | 279 | 168 | 8 | 19 | 235 | - |
200NB | 337 | 219 | 8 | 19 | 292 | - |
250NB | 406 | 273 | 8 | 22 | 356 | - |
300NB | 457 | 324 | 12 | 22 | 406 | - |
350NB | 527 | 381 | 12 | 25 | 470 | E |
400NB | 578 | 432 | 12 | 25 | 521 | E |
450NB | 641 | 483 | 12 | 25 | 584 | - |
500NB | 705 | 533 | 16 | 25 | 641 | E |
600NB | 825.5 | 635 | 16 | 29 | 756 | - |
All Dimensions below are given in millimeters (mm).
Flange Nominal Bore |
Gasket OD | Gasket ID | Number of Holes |
Hole Diameter |
PCD | Matches Table |
15NB | 95 | 21 | 4 | 14 | 67 | D |
20NB | 102 | 27 | 4 | 14 | 73 | D |
25NB | 114 | 34 | 4 | 14 | 83 | D |
32NB | 121 | 43 | 4 | 14 | 87 | D |
40NB | 133 | 48 | 4 | 14 | 98 | D |
50NB | 152 | 60 | 4 | 19 | 114 | D |
65NB | 165 | 76 | 4 | 19 | 127 | D |
80NB | 184 | 89 | 4 | 19 | 146 | D |
90NB | 203 | 102 | 8 | 19 | 165 | - |
100NB | 216 | 114 | 8 | 19 | 178 | - |
125NB | 254 | 140 | 8 | 19 | 210 | D |
150NB | 279 | 168 | 8 | 22 | 235 | - |
200NB | 337 | 219 | 8 | 22 | 292 | - |
250NB | 406 | 273 | 12 | 22 | 356 | - |
300NB | 457 | 324 | 12 | 25 | 406 | - |
350NB | 527 | 381 | 12 | 25 | 470 | D |
400NB | 578 | 432 | 12 | 25 | 521 | D |
450NB | 641 | 483 | 16 | 25 | 584 | - |
500NB | 705 | 533 | 16 | 25 | 641 | D |
600NB | 825.5 | 635 | 16 | 32 | 756 | - |
Colour | Black |
---|---|
Insertion | None |
Polymer | CR/SBR (Chloroprene / Styrene Butadiene Rubber) |
Hardness | 60 Shore A (+/- 5) Durometer |
Continuous Operating Temperature | -20°C to 100°C |
Elongation at Break | 300% |
Tear Strength | 12 N / mm |
Specific Gravity | 1.49 g/cm³ |
Potable Water | No |
Food Grade | No |
Abrasion Resistance | Fair |
Oil and Petroleum Products Resistance | Fair |
Tearing Resistance | Average |
SKU | SWM000012P04-3.0 |
---|---|
Brand | Gaskaseal |
