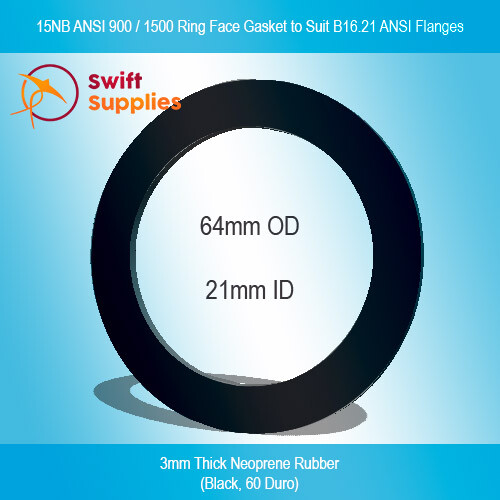

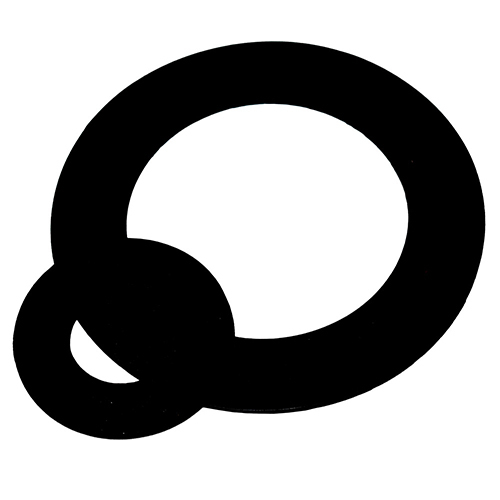

15NB ANSI 900 / 1500 Ring Face Gasket, 3mm Neoprene Rubber

SKU: SWM000012P06V0053
Availability: Cut to Order, Ships in 2-3 W/Days.
$0.61
INC. GST
$0.55
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 24 and pay only $0.43 each
Buy 25 - 49 and pay only $0.40 each
Buy 50 - 99 and pay only $0.38 each
Buy 100 or above and pay only $0.36 each
  • Economical type of Neoprene flange gasket for B16.5 Pipe Flanges Flanges.
  • Cut to size in our Australian factory to meet the precise requirements of ANSI B16.21 specifications.
  • Made from our industrial grade Neoprene rubber. Good resistance to oils, water and many common fluids.
  • Available in the full range of standard flange sizes. Custom cut Neoprene ring face gaskets also available upon request.

Neoprene Rubber Flange Gaskets are widely used for sealing pipelines and tanks that operate at low pressure and temperatures.

This versatile, economical rubber material is ideal for these applications as it offers a good combination of economy, performance, reliability and versatility. It is used in sealing applications where temperatures are between -20°C and +100°C.

These gaskets are cut from our industrial grade, 3mm thick Neoprene Rubber Sheet to suit ANSI B16.21 ANSI 900# / 1500# flanges (15NB through 600NB).

This is a 60 Duro (±5) Shore A Neoprene Rubber that is black in colour. For more information on it, please consult our Neoprene Rubber Technical Data Sheet or our comprehensive Rubber Chemical Compatibility guide. For more info on the gaskets, read on.

Neoprene Rubber Flange Gaskets to Suit ANSI Size Info.

This page lists ring type gaskets. This style of gasket is designed to sit inside the bolts of the flanges and is known by quite a few names, including:

  • RF Flange Gaskets.
  • IBC Gaskets (Inner Bolt Circle).
  • Raised Face Gaskets (as they are often used on raised face type flanges).
  • Ring Face Gaskets.

These gaskets are cut to suit the size requirements of ANSI B16.21 and used with ASME B16.5 Flanges. This specification contains 5 different flange tables listed below:

  • ANSI 150 (Class 150)
  • ANSI 300 (Class 300)
  • ANSI 600 (Class 600)
  • ANSI 900 (Class 900)
  • ANSI 1500 (Class 1500)

Ii many nominal pipe sizes (NB), the Class 300 and Class 600 call for the same size gasket. The same is true with Class 900 and Class 1500. When this is true, a single gasket is offered that will fit both (denoted on the list as Class 300 / 600). When the specification calls for different size gaskets, individual options for each are listed.

What this means in practice is…

ANSI 150
Does not share it’s sizing with any other flange table at any nominal bore.

ANSI 300
Shares it’s sizing with ANSI 600 up to 80NB (3”). For pipes larger than this, individual gaskets are offered as the sizes differ.

ANSI 600
Shares it’s sizing with ANSI 300 up to 80NB (3”). For pipes larger than this, individual gaskets are offered as the sizes differ.

ANSI 900
Shares it’s sizing with ANSI 1500 up to 65NB (2.5”). For pipes larger than this, individual gaskets are offered as the sizes differ.

ANSI 1500
Shares it’s sizing with ANSI 900 up to 65NB (2.5”). For pipes larger than this, individual gaskets are offered as the sizes differ.

Ring Face Flange Gaskets to suit ANSI B16.5 Flanges Size Tables.

ANSI 150 ButtonANSI 300 ButtonANSI 150 ButtonANSI 900 ButtonANSI 1500 Button

Class 150 Ring Gasket Sizes.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 48 -
20NB 3/4" 27 57 -
25NB 1" 33 67 -
32NB 1 1/4" 42 76 -
40NB 1 1/2" 48.4 86 -
50NB 2" 60.3 105 -
65NB 2 1/2" 73 124 -
80NB 3" 89 136.5 -
90NB 3 1/2" 102 162 -
100NB 4" 114.3 175 -
125NB 5" 141.3 197 -
150NB 6" 168 222 -
200NB 8" 219 279 -
250NB 10" 273 340 -
300NB 12" 324 410 -
350NB 14" 356 450 -
400NB 16" 406 515 -
450NB 18" 457 550 -
500NB 20" 508 605 -
600NB 24" 610 715 -

Return to Sizing Table Menu.

Class 300 Ring Gasket Sizes.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 54 ANSI 600
20NB 3/4" 27 67 ANSI 600
25NB 1" 33 73 ANSI 600
32NB 1 1/4" 42 83 ANSI 600
40NB 1 1/2" 48.4 95 ANSI 600
50NB 2" 60.3 111 ANSI 600
65NB 2 1/2" 73 130 ANSI 600
80NB 3" 89 149 ANSI 600
90NB 3 1/2" 102 165 -
100NB 4" 114.3 181 -
125NB 5" 141.3 216 -
150NB 6" 168 251 -
200NB 8" 219 308 -
250NB 10" 273 362 -
300NB 12" 324 422 -
350NB 14" 356 486 -
400NB 16" 406 540 -
450NB 18" 457 597 -
500NB 20" 508 654 -
600NB 24" 610 775 -

Return to Sizing Table Menu.

Class 600 Ring Gasket Sizes.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 54 ANSI 300
20NB 3/4" 27 67 ANSI 300
25NB 1" 33 73 ANSI 300
32NB 1 1/4" 42 83 ANSI 300
40NB 1 1/2" 48.4 95 ANSI 300
50NB 2" 60.3 111 ANSI 300
65NB 2 1/2" 73 130 ANSI 300
80NB 3" 89 149 ANSI 300
90NB 3 1/2" 102 162 -
100NB 4" 114.3 194 -
125NB 5" 141.3 241 -
150NB 6" 168 267 -
200NB 8" 219 320.7 -
250NB 10" 273 400 -
300NB 12" 324 457 -
350NB 14" 356 492 -
400NB 16" 406 565 -
450NB 18" 457 613 -
500NB 20" 508 683 -
600NB 24" 610 791 -

Return to Sizing Table Menu.

Class 900 Ring Gasket Sizes.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 64 ANSI 1500
20NB 3/4" 27 70 ANSI 1500
25NB 1" 33 79 ANSI 1500
32NB 1 1/4" 42 89 ANSI 1500
40NB 1 1/2" 48.4 98 ANSI 1500
50NB 2" 60.3 143 ANSI 1500
65NB 2 1/2" 73 165 ANSI 1500
80NB 3" 89 168 -
90NB 3 1/2" N/A N/A -
100NB 4" 114.3 206 -
125NB 5" 141.3 248 -
150NB 6" 168 289 -
200NB 8" 219 359 -
250NB 10" 273 435 -
300NB 12" 324 498 -
350NB 14" 356 520 -
400NB 16" 406 575 -
450NB 18" 457 638 -
500NB 20" 508 699 -
600NB 24" 610 840 -

Return to Sizing Table Menu.

Class 1500 Ring Gasket Sizes.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 64 ANSI 900
20NB 3/4" 27 70 ANSI 900
25NB 1" 33 79 ANSI 900
32NB 1 1/4" 42 89 ANSI 900
40NB 1 1/2" 48.4 98 ANSI 900
50NB 2" 60.3 143 ANSI 900
65NB 2 1/2" 73 165 ANSI 900
80NB 3" 89 175 -
90NB 3 1/2" N/A N/A -
100NB 4" 114.3 210 -
125NB 5" 141.3 254 -
150NB 6" 168 283 -
200NB 8" 219 352 -
250NB 10" 273 435 -
300NB 12" 324 520 -
350NB 14" 356 580 -
400NB 16" 406 641 -
450NB 18" 457 705 -
500NB 20" 508 755 -
600NB 24" 610 901 -

Return to Sizing Table Menu.

Colour Black
Insertion None
Polymer CR/SBR (Chloroprene / Styrene Butadiene Rubber)
Hardness 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature -20°C to 100°C
Elongation at Break 300%
Tear Strength 12 N / mm
Specific Gravity 1.49 g/cm³
Potable Water No
Food Grade No
Abrasion Resistance Fair
Oil and Petroleum Products Resistance Fair
Tearing Resistance Average
SKU SWM000012P06-900-1500
Brand Gaskaseal
