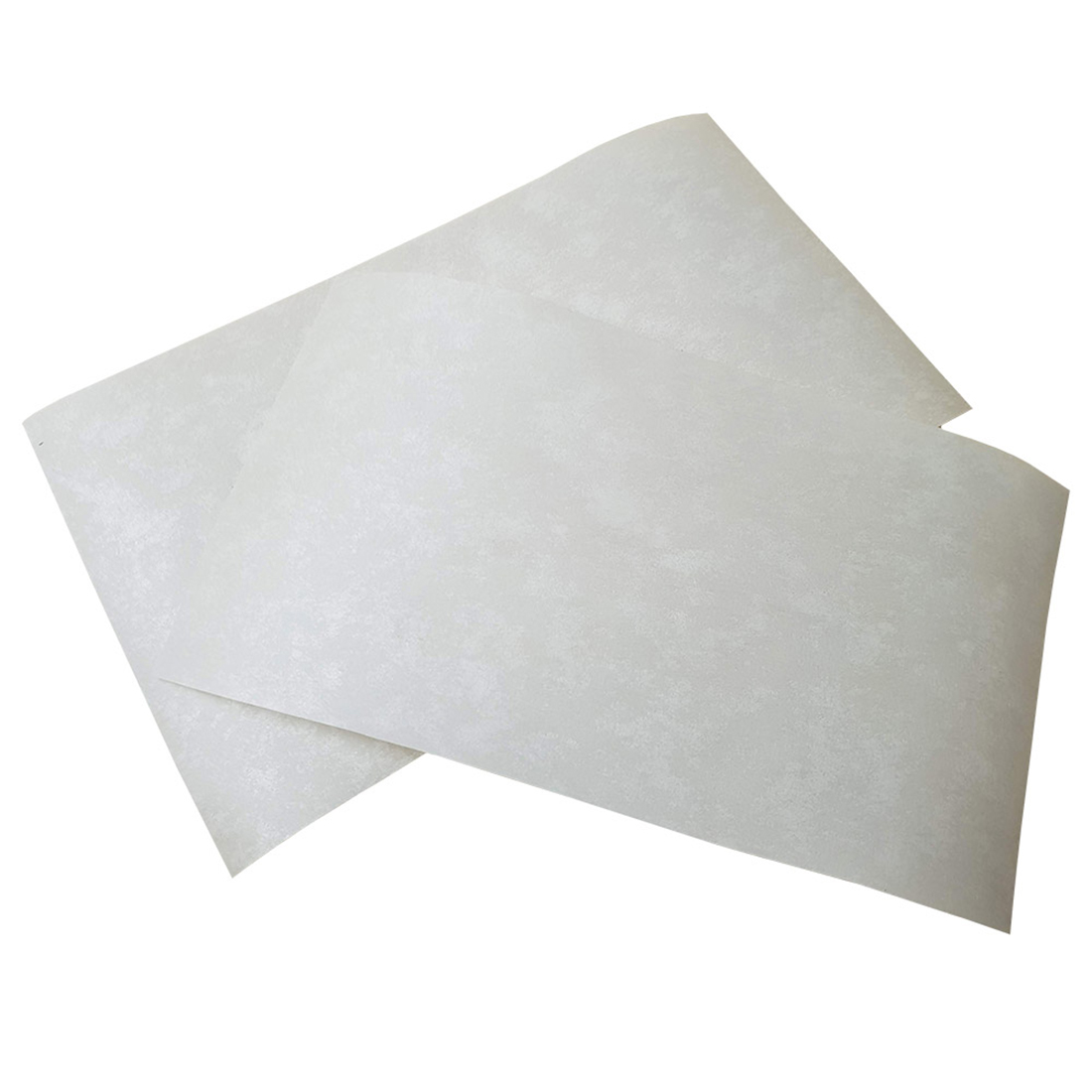

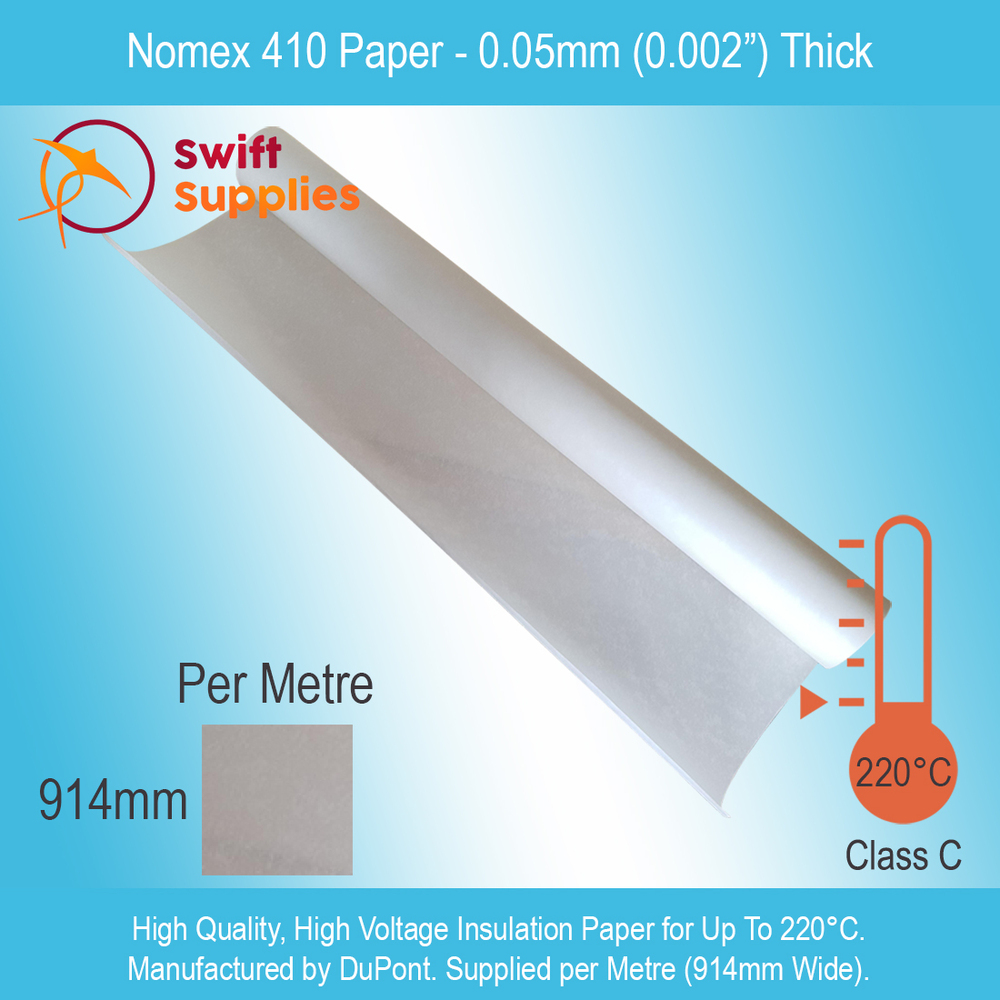

Nomex 410 Insulation Paper - 0.05mm (0.002") x 914mm Wide (Per Metre)

SKU: SWM000286B01V0001
Availability: Ships in 1-2 W/Days
$15.94
INC. GST
$14.49
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 19 and pay only $10.07 each
Buy 20 or above and pay only $9.35 each
  • Industry standard high voltage insulation paper from DuPont.
  • Excellent dielectric strength, mechanical properties, flexibility and resilience.
  • High temperature resistance (220°C), good chemical stability and chemical resistance.
  • Available by the linear metre in a large range of thicknesses.

We are very pleased to offer DuPont™ Nomex 410® Insulation Paper. Used throughout the electrical industry (amongst other places), this high-quality aramid paper offers exceptional dielectric strength, mechanical strength and temperature resistance.

Trusted for more than 50 years, DuPont™ Nomex® 410 is a high-density product with a range of benefits and features. These include…

High Dielectric Strength and Electrical Properties.

Nomex 410 has excellent dielectric strength and electrical insulation properties. It is often used for the insulation of high voltage electric motors & transformers. As with all electrical insulation materials, thickness and density have an effect of the typical electrical properties. The table below provides an overview for each thickness.

Thickness Dielectric Strength
AC Rapid Rise (kV/mm)
Full Wave Impulse
(kV/mm)
Dielectric Contant
at 60 Hz
Dissipation Factor
at 60 Hz (x 10-3)
0.05mm 18 39 1.6 4
0.08mm 22 39 1.6 5
0.10mm 21 36 1.8 6
0.13mm 28 55 2.4 6
0.18mm 34 55 2.7 6
0.25mm 33 63 2.7 6
0.30mm 34 N/A 2.9 7
0.38mm 33 55 3.2 7
0.51mm 32 55 3.4 7
0.61mm 32 N/A 3.7 7
0.76mm 27 49 3.7 7
Test Method ASTM D149 ASTM D3426 ASTM D150 ASTM D150



Good Temperature Resistance and Thermal Stability.

Nomex® 410 has been recognised by Underwriters Laboratories (UL) for continuous use in applications up to 220°C. Additional testing has also confirmed that Nomex 410 will maintain a high dielectric strength (12 kV/mm) for several hours at up to 400°C.

More information on this capability and charts showing the relationship between electric performance and temperature are included on the technical data sheet.

Excellent Mechanical Strength and Properties.

Nomex® 410 Paper is strong, tough and resilient. In the thinner grades, it is also quite flexible while the thicker styles tend to have more rigidity. Once again, specific mechanical properties vary depending on the thickness of the Nomex. The table below contains more information.

Thickness Basis Weight
(g/m²)
Density
g/cm³
Tensile Strength
MD / XD
Elongation (%)
MD / XD
Initial Tear Strength
MD / XD
Shrinkage at 300°C (%)
MD / XD
0.05mm 41 0.72 43 / 19 10 / 7 11 / 6 1.8 / 0.0
0.08mm 64 0.81 68 / 34 12 / 9 16 / 9 0.8 / 0.0
0.10mm 88 0.83 93 / 49 12 / 9 24 / 14 0.4 / 0.0
0.13mm 115 0.88 141 / 71 16 / 13 31 / 17 0.4 / 0.0
0.18mm 174 0.95 227 / 116 20 / 15 48 / 27 0.5 / 0.1
0.25mm 249 0.96 296 / 161 22 / 18 69 / 42 0.2 / 0.0
0.30mm 310 1.00 380 / 185 23 / 18 88 / 55 0.2 / 0.1
0.38mm 395 1.02 462 / 252 22 / 16 110 / 71 0.2 / 0.1
0.51mm 549 1.06 610 / 374 23 / 18 158 / 114 0.0 / 0.0
0.61mm 692 1.13 728 / 500 21 / 16 191 / 153 0.0 / 0.0
0.76mm 839 1.08 816 / 592 21 / 17 233 / 193 0.0 / 0.0
Test Method ASTM D606 - ASTM D282 ASTM D828 ASTM D1004² -

² Data presented for initial tear strength is listed in the direction of the sample per ASTM D1004. The tear is 90 degrees to sample direction; hence, for papers with a higher reported machine direction initial tear strength, the paper will be tougher to tear in the cross direction.

Flame Resistance.

Nomex® products do not melt and, with a limiting oxygen index (LOI) at 220°C above 20.8 (the critical value for combustion in normal air), they do not support combustion.

Chemical Compatibility.

Nomex® is essentially unaffected by most solvents and is unusually resistant to attacks by acids and alkalis.  It is compatible with all classes of varnishes and adhesives, transformer fluids, lubricating oils and refrigerants.

Much More.

Given that is has been used in a wide variety of industries for decades, the properties of Nomex 410 has been tested, evaluated and certified in a range of areas. In the interests of brevity, not all information on this quality insulation paper is presented here. For more information, please do consult the Nomex 410 Technical Data Sheet on the media tab.

Applications for Nomex 410 Insulation Paper.

Nomex 410 Insulation Paper is used by several industries in a large range of applications. Just some of the more popular uses include…

  • Slot insulation for electric motors.
  • Making insulating components and parts for power equipment.
  • Insulation in low, medium and high voltage transformers.
  • As an insulating wrap for cables and conductors.
  • Lighting ballast.
  • Welding protection.
  • In data centre equipment and UPS.
  • As a heat deflector in the automotive and transport industries.
  • For high temperature, abrasion resistant washers and seals.

How to Buy Nomex 410 Paper Online.

We are pleased to offer Nomex 410 Insulation Paper by the lineal metre. To buy, just follow these steps.

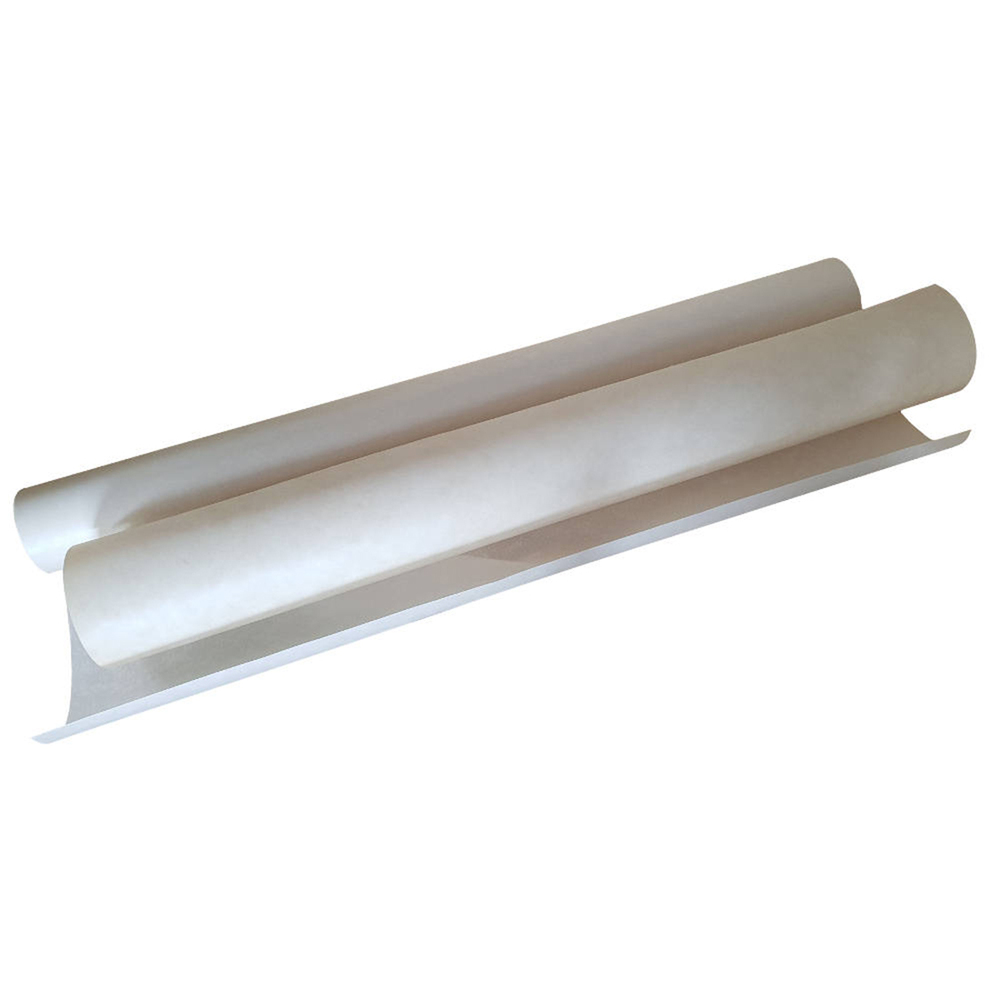

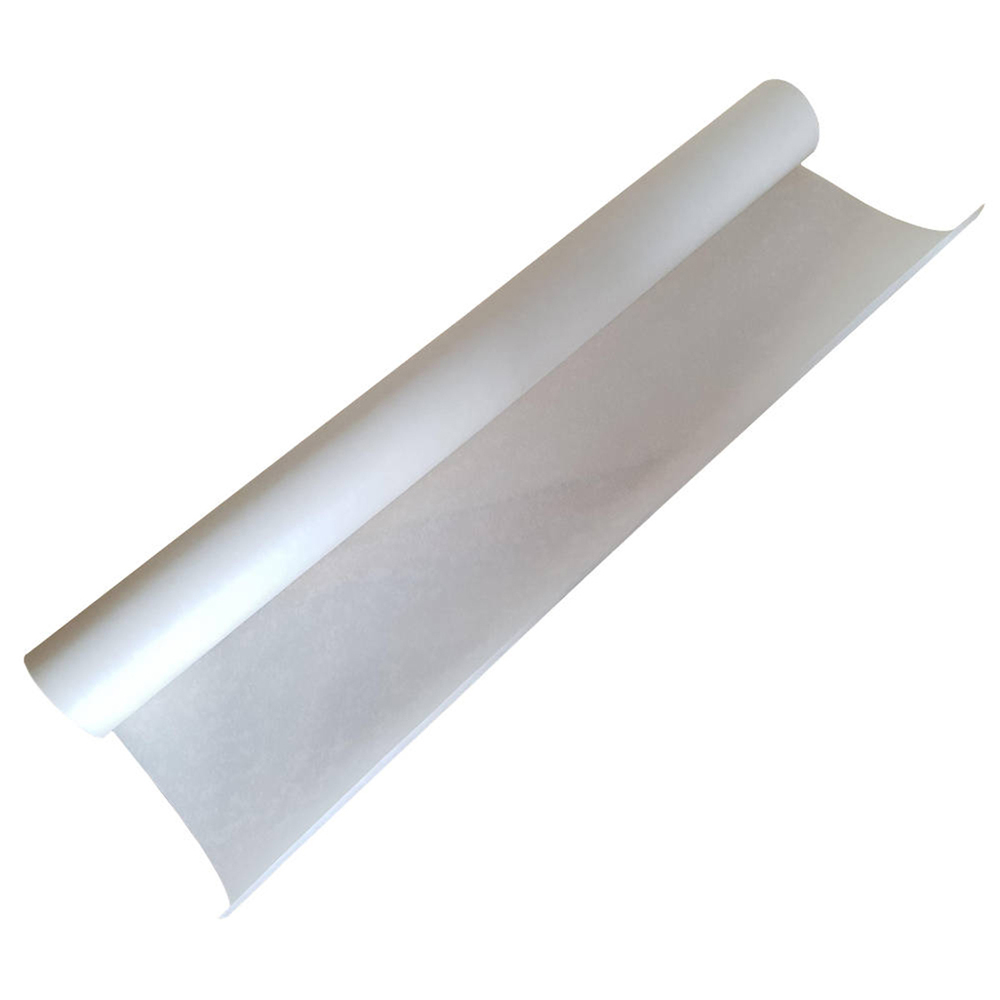

  1. Select the quantity needed. All rolls are 914mm wide and quoted per lineal metre. We will supply in a single continuous length (e.g. ordering a quantity of 10 will mean we send you 10 continuous metres, not 2 x 5).
  2. Proceed through the check-out.

Nomex 410 Paper Metric to Imperial Thickness Conversion.

Metric 0.05mm 0.08mm 0.10mm 0.13mm 0.18mm 0.25mm 0.30mm 0.38mm 0.51mm 0.76mm
Mil 2 3 4 5 7 10 12 15 20 30
Inches 0.002" 0.003" 0.004" 0.005" 0.007" 0.010" 0.012" 0.015" 0.020" 0.030"
SKU SWM000286B01
Brand DuPont
