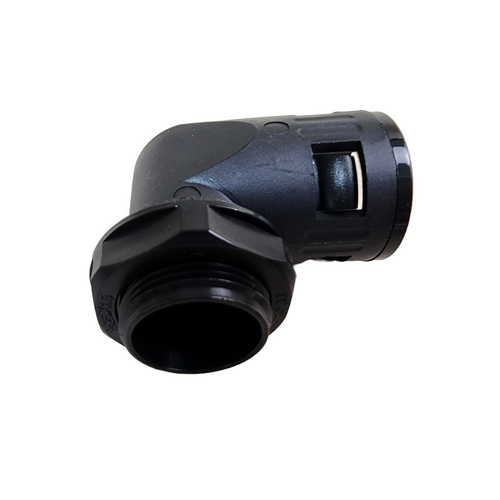

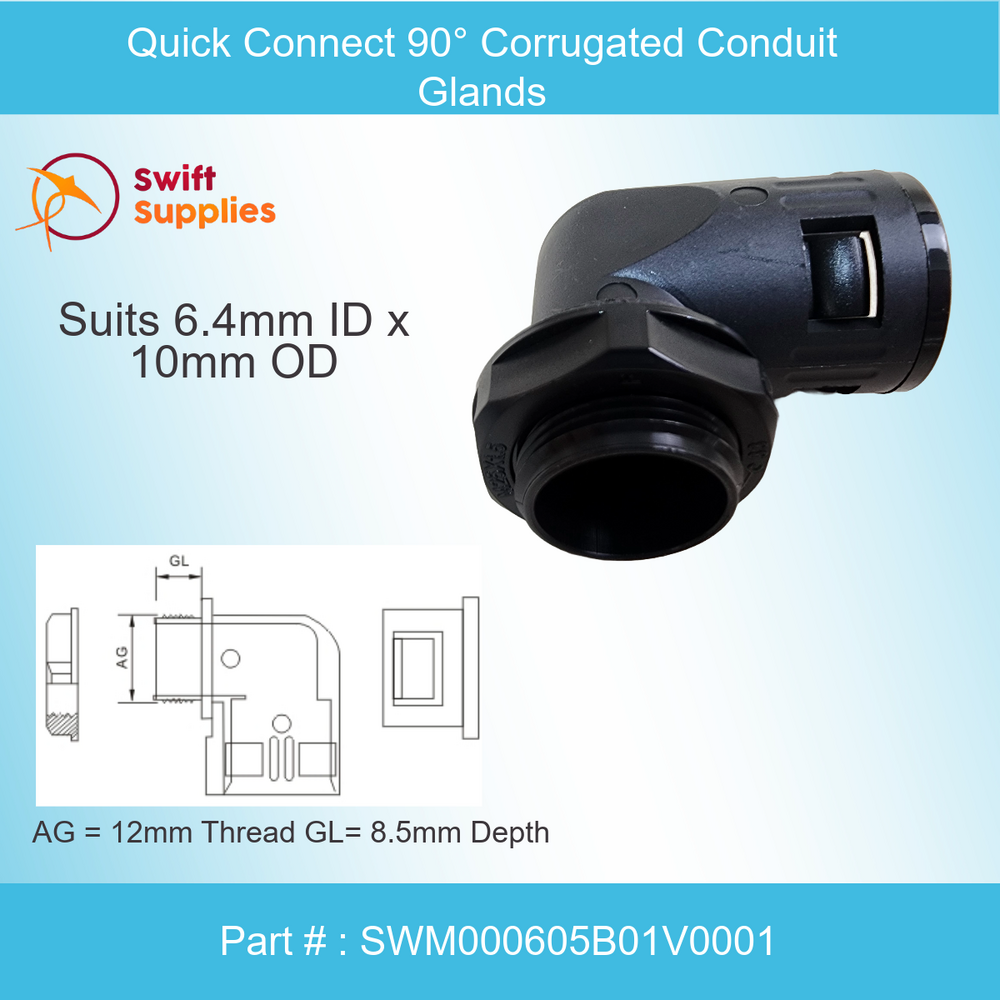

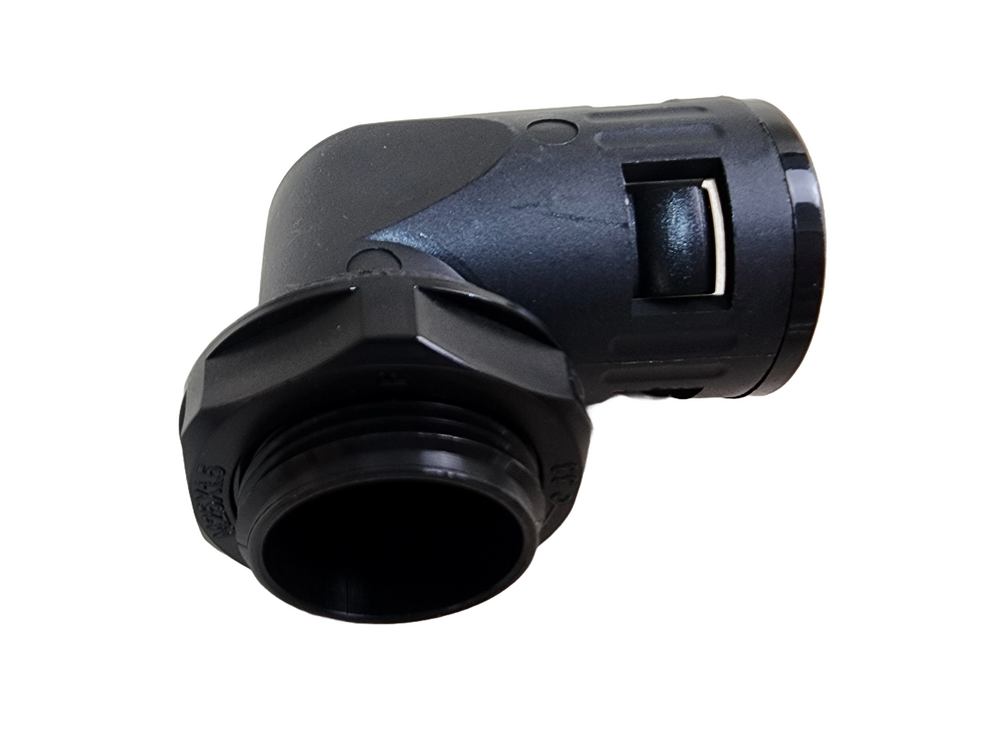

Quick Connect 90° Gland 12mm Thread | 8.5mm Depth - For 6.4mm ID x 10mm OD Conduit
Quick Connect 90° Gland 12mm Thread | 8.5mm Depth - For 6.4mm ID x 10mm OD Conduit
Quick Connect 90° Gland 12mm Thread | 8.5mm Depth - For 6.4mm ID x 10mm OD Conduit

Quick Connect 90° Gland 12mm Thread | 8.5mm Depth - For 6.4mm ID x 10mm OD Conduit

SKU: SWM000605B01V0001
Availability: Available for Fast Dispatch.
$2.07
INC. GST
$1.88
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 24 and pay only $1.89 each
Buy 25 - 49 and pay only $1.81 each
Buy 50 or above and pay only $1.75 each
Browse All Our Electrical Insulation, Conductors & ToolsBrowse All Our Cable ManagementBrowse All Our Cable ProtectionBrowse All Our Corrugated TubingBrowse All Our Quick Connect 90° Gland 12mm Thread | 8.5mm Depth - For 6.4mm ID x 10mm OD Conduit

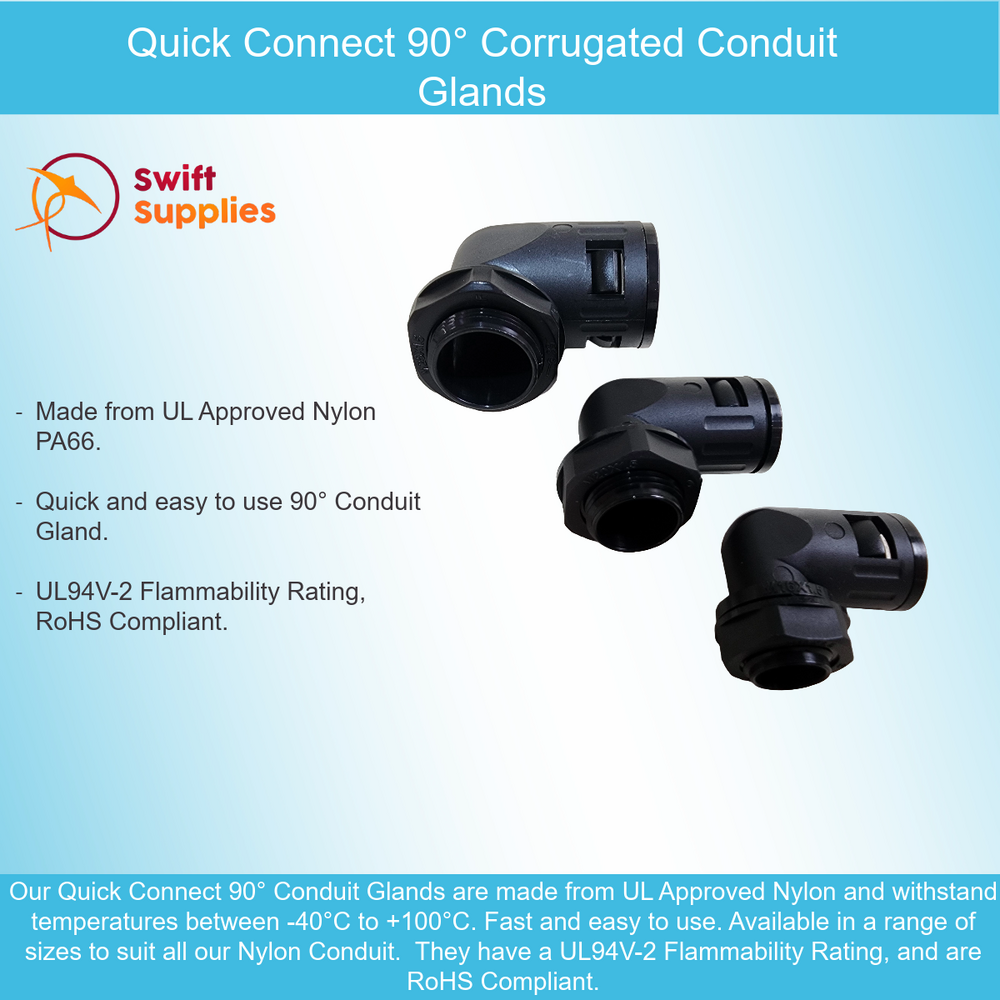

  • Made from UL Approved Nylon PA66.
  • Quick and easy to use 90° Conduit Gland.
  • UL94V-2 Flammability Rating, RoHS Compliant.

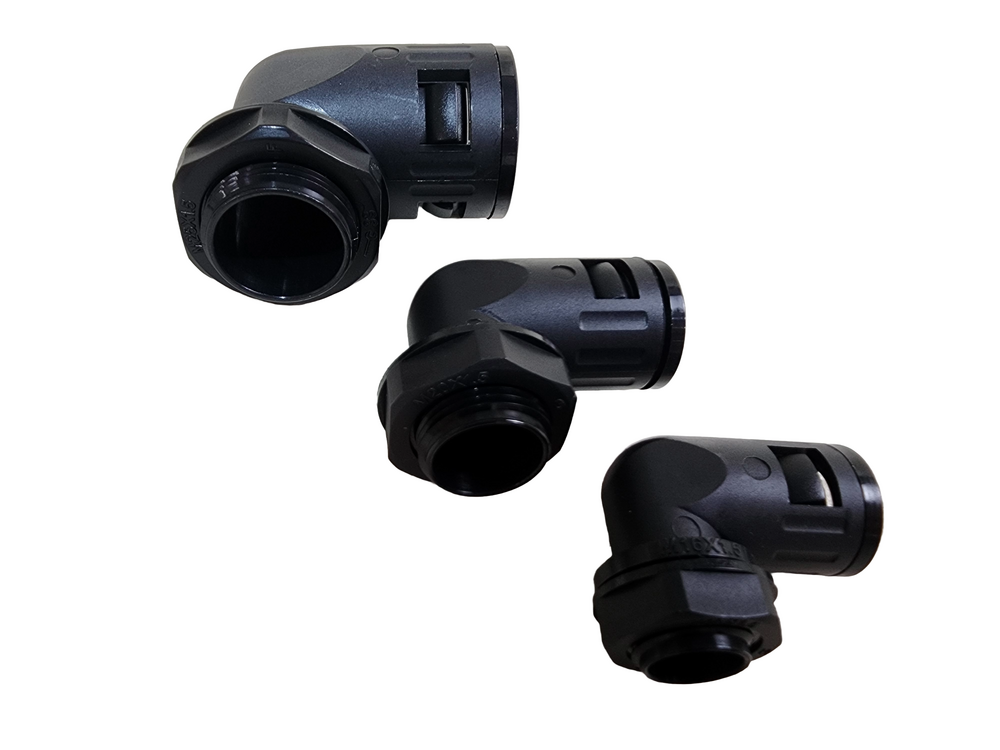

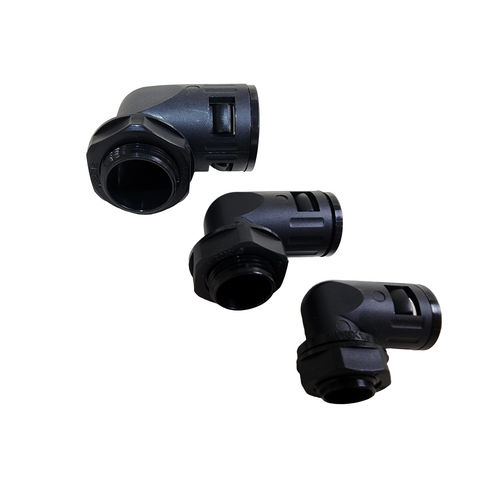

Our Quick Connect 90° Conduit Glands are perfect for those hard-to-reach connections. They are made from UL Approved Nylon PA66 and have a UL94V-2 Flammability Rating.

These glands are RoHS compliant and are available in a range of sizes to suit our conduit.

Effectively sealing a 90° angle connection, they can withstand temperatures between -40°C to +100°C, with a short term peak up to +120°C.

They make installation and connection easy. To find the right size Quick Connect Conduit Gland for your conduit, please refer to the table below.

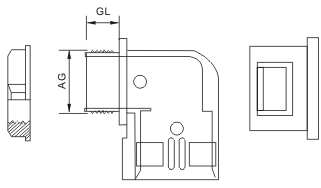

Thread Diameter AG  Thread Depth GL  Suits Nylon Corrugated Conduit Size Our Gland Part Number

12mm Ø

8.5mm

6.4mm ID x 10mm OD

SWM000605B01V0001

16mm Ø

10mm

9.9mm ID x 13mm OD

SWM000605B01V0002

16mm Ø

10mm

12.8mm ID x 15.9mm OD

SWM000605B01V0003

20mm Ø

12.5mm

12.8mm ID x 15.9mm OD

SWM000605B01V0004

20mm Ø

13mm

16.6mm ID x 21.2mm OD

SWM000605B01V0005

25mm Ø

13mm

16.6mm ID x 21.2mm OD

SWM000605B01V0006

25mm Ø

13mm

21.2mm ID x 25.3mm OD

SWM000605B01V0007

32mm Ø

14mm

29mm ID x 33mm OD

SWM000605B01V0008



Colour Black
Material UL Approved Nylon 6/6
Continuous Temperature Rating -40°C to +100°C
Maximum Short-Term Peak Temperature Rating +120°C
Flammability UL94V-2
RoHS Compliant



Thread Diameter AG Thread Depth GL Suits Nylon Corrguated Conduit Size

12mm Ø

8.5mm

6.4mm ID x 10mm OD

SWM000605B01V0001

16mm Ø

10mm

9.9mm ID x 13mm OD

SWM000605B01V0002

16mm Ø

10mm

12.8mm ID x 15.9mm OD

SWM000605B01V0003

20mm Ø

12.5mm

12.8mm ID x 15.9mm OD

SWM000605B01V0004

20mm Ø

13mm

16.6mm ID x 21.2mm OD

SWM000605B01V0005

25mm Ø

13mm

16.6mm ID x 21.2mm OD

SWM000605B01V0006

25mm Ø

13mm

21.2mm ID x 25.3mm OD

SWM000605B01V0007

32mm Ø

14mm

29mm ID x 33mm OD

SWM000605B01V0008



SKU SWM000605
