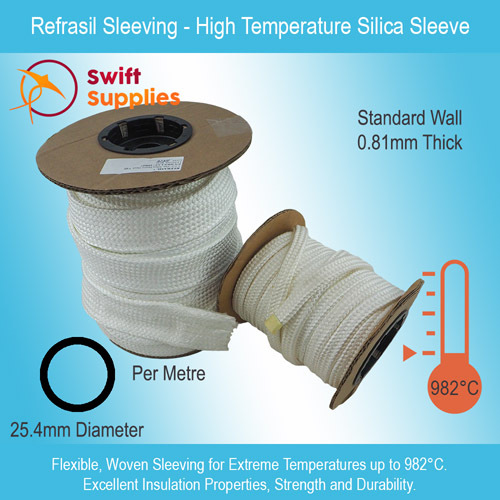

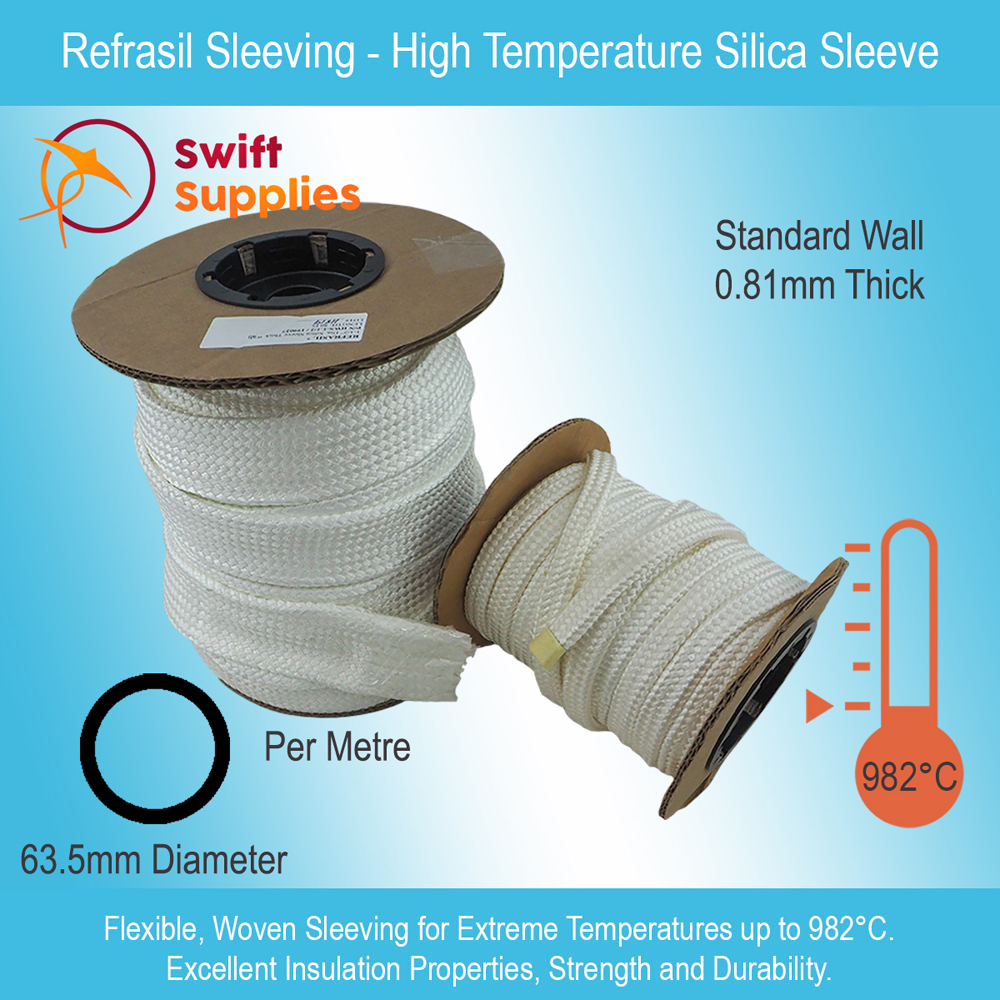

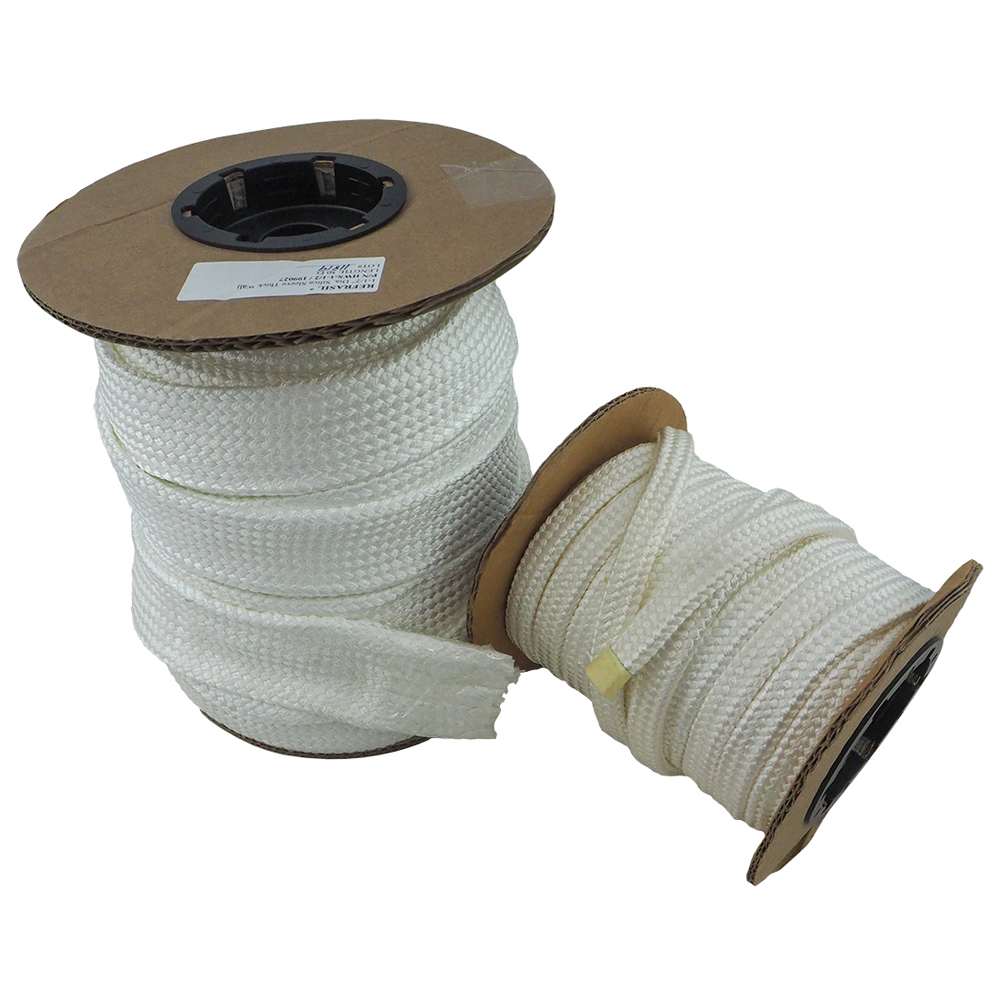

For the most extreme temperature environments, we offer our Refrasil Sleeving. This industrial-grade thermal insulation product is manufactured in the USA from pure silica yarns. It is an excellent thermal insulator, absolutely fireproof and resists attack from most chemicals.
We are pleased to offer this high-quality insulation sleeve by the metre. It is available in two different configurations; standard wall & heavy wall. Standard wall Refrasil Sleeving has a nominal wall thickness of 0.81mm. Heavy wall is twice as thick with a nominal wall thickness of 1.65mm.
For more information on the available sizes, maximum stretch, thermal, mechanical & electrical properties of this high-quality sleeve, please see the sections below.
| Wall Type | Nominal ID | Wall Thickness | Maximum ID |
|---|---|---|---|
| Standard Wall | 19mm (0.75") | 0.81mm | 24.1mm (0.95") |
| Standard Wall | 25.4mm (1") | 1.65mm | 34.3mm (1.35") |
| Standard Wall | 38.1mm (1.5") | 1.65mm | 63.5mm (2.5") |
| Standard Wall | 50.8mm (2") | 1.65mm | 81.28mm (3.2") |
| Standard Wall | 63.5mm (2.5") | 1.65mm | 83.82mm (3.3") |
| Heavy Wall | 9.5mm (0.375") | 1.65mm | 10.16mm (0.4") |
| Heavy Wall | 12.7mm (0.5") | 1.65mm | 15.24mm (0.6") |
| Heavy Wall | 25.4mm (1") | 1.65mm | 27.94mm (1.1") |
| Heavy Wall | 38.1mm (1.5") | 1.65mm | 40.64mm (1.6") |
| Heavy Wall | 50.8mm (2") | 1.65mm | 53.34mm (2.1") |
Refrasil Silica Sleeve has been used in the most demanding industrial applications for decades. Both the standard and the heavy wall varieties provide exceptional thermal protection and are widely used for protecting hydraulic hoses and electrical cables, as insulation for exhaust systems and much more.
Refrasil Sleeving with withstand continuous exposure to temperatures up to 982°C (1,800°F).
These sleevings maintain their physical strength and excellent flexibility up to this temperature. They are completely fireproof and extremely long lasting. Time and time again, Refrasil Sleeving has been selected for use in plants and equipment due to its consistent, lasting performance.
Refrasil Sleeve is made from pure silica. These yarns are braided to form a high-density sleeve that is very flexible, easy to handle and install.
One of the benefits of using the thinner wall sleeve is its high degree of potential expandability. As the table above specifies, standard wall Refrasil can be stretched to make installation easier, or to cover junctions or terminations.
Regardless of the style, all Refrasil Silica Sleeve’s are very easy to handle. They can be easily cut with scissors or shears and remain flexible despite long-term exposure to extreme temperatures.
All Refrasil high temperature insulation textiles are pure silica products with the heat insulation capabilities of a refractory material. Like the other styles in this family, Refrasil Sleeve is relatively inert and resists most chemicals.
These sleevings are resistant to oxidation and most corrosive solutions. They will not degrade in the presence of water. Refrasil High Temperature Sleeve’s are often used to protect cables, hoses and piping from molten metal splash, sparks and radiant heat.
Refrasil Silica Sleeving is widely used for the insulation and protection of electrical cables, wires and lines in high heat environments. As an added benefit, Refrasil Sleeve is also dielectric. It has a reasonable dielectric strength of 40 volts/mil of wall thickness which makes it suitable for use as primary insulation on some low voltage lines, or secondary insulation in higher voltage applications.
| Colour | White |
|---|---|
| Maximum Continuous Operating Temperature | 982°C (1,800°F) |
| Melting Point | >1,650°C |
| Silica Content of Base Fibre | 96% Minimum |
| SKU | SWM000347B01-Std |
|---|---|
| Brand | SGL Carbon |
