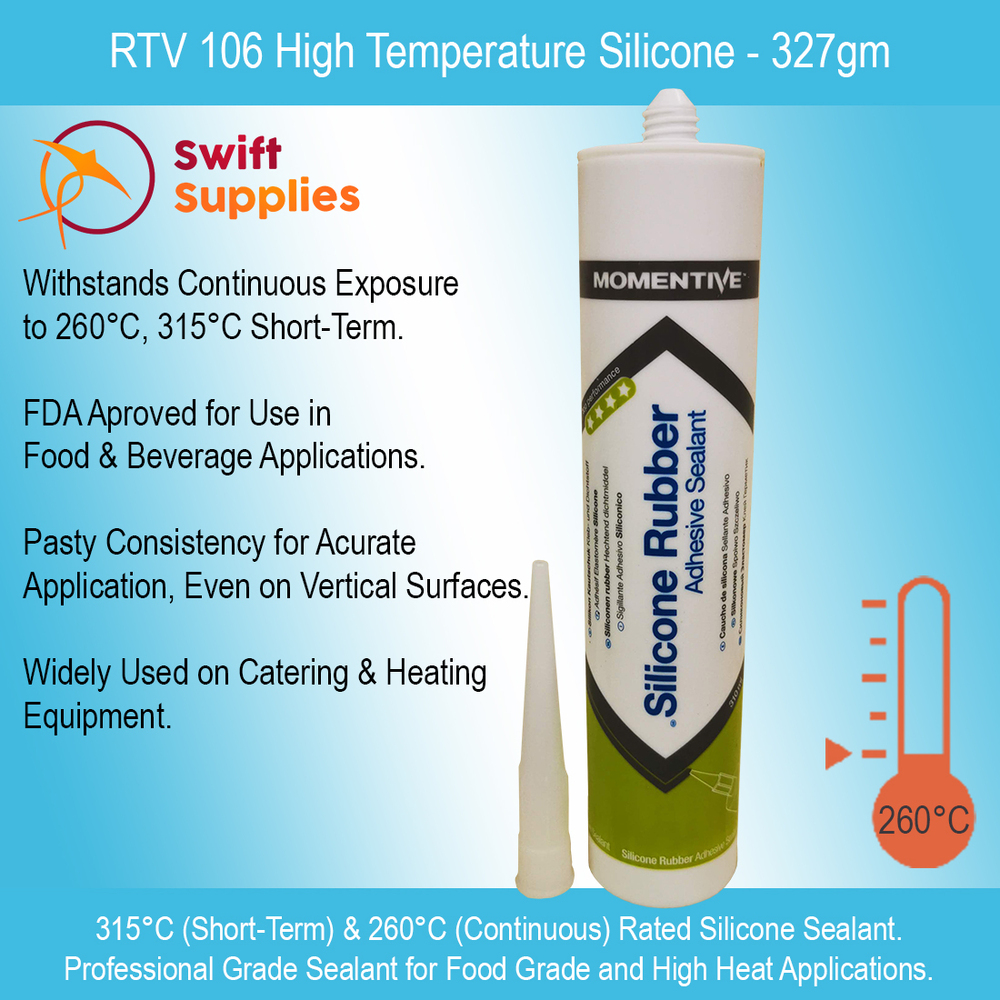

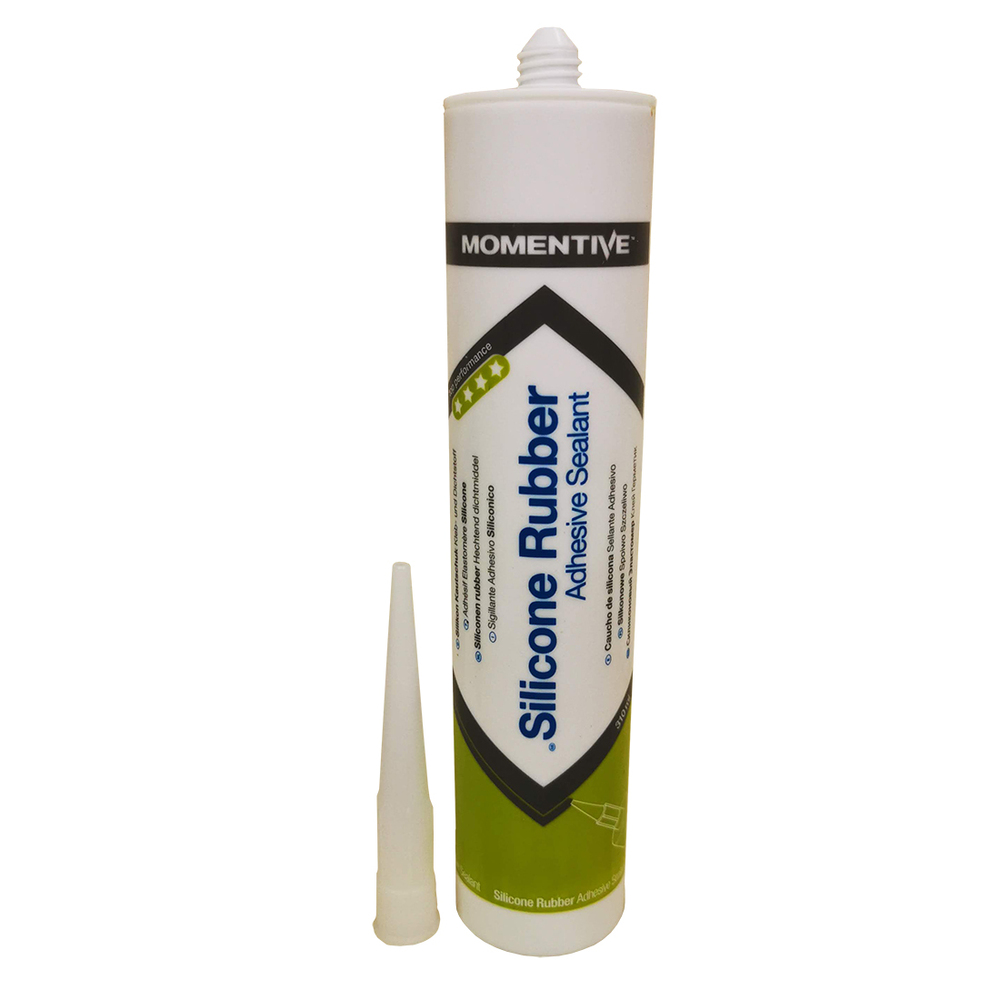

RTV 106 High Temperature Silicone from Momentive is a specialised, heat resistant grade of silicone sealant. This silicone has a maximum continuous operating temperature rating of 260°C and will handle short-term exposure to up to 315°C.
It is a pasty, one-part RTV silicone with an acetoxy-base (acetic cure). This industrial grade silicone exhibits excellent adhesive to a wide range of surfaces, including:
It does not bond well to low surface energy plastics like PTFE or PE and care should be taken when it is used with plastic materials with a sensitive surface as the acetoxy cure cycle may damage these materials.
The pasty nature of Momentive RTV106 makes it suitable for application on vertical or overhead surfaces.
Once cured, RTV 106 has good flexibility and is very long lasting. It exhibits excellent weatherability, ozone and chemical resistance and very good dielectric properties.
Consistency / Viscosity | Paste |
---|---|
Application Rate | 400 grams / minute |
Specific Gravity | 1.07 |
Tack-Free Time | 20 Minutes |
Tensile Strength1 | 26 kg/cm² |
Elongation | 400% |
Hardness | 30 Shore A |
Tear Strength | 7 kg/cm |
Shear Strength² | 14 kg/cm² |
Peel Strength | 7 kg/cm |
Electrical Properties | |
Dielectric Strength | 20 kv/mm |
Dielectric Constant @ 60 Hz | 2.8 |
Dissipation Factor @ 60 Hz | 0.001 |
Volume Resistivity | 3x1014 ohm-cm |
Thermal Properties³ | |
Brittle Point | -60°C |
Maximum Continuous Operating Temperature | 260°C |
Maximum Short-Term Operating Temperature | 300°C |
Additional Information³ | |
Linear Shrinkage | 1% |
Thermal Conductivity | 0.0005 cal/sec/cm² |
All values measured after 3 days cure at 25°C with 50% relative humidity.
(1) At 100% cohesive failure.
(2) At 100% cohesive failure using a 1” x 8” stainless steel screen at 180° pull angle.
(3) Information is provided for convenience only. These properties are not tested on a routine basis.
Please Note
These silicones were not designed for and should not be used for applications intended for permanent implantation into the human body. These silicones are not for use in delicate electrical and electronic applications in which the corrosion of copper, brass or other sensitive metals is undesirable.
For more information on our RTV 100 Silicone, including specifications and approvals, please see our RTV 100 Technical Data Sheet located on the media tab.
SKU | SWM000508B01V0001 |
---|---|
Brand | Momentive |
