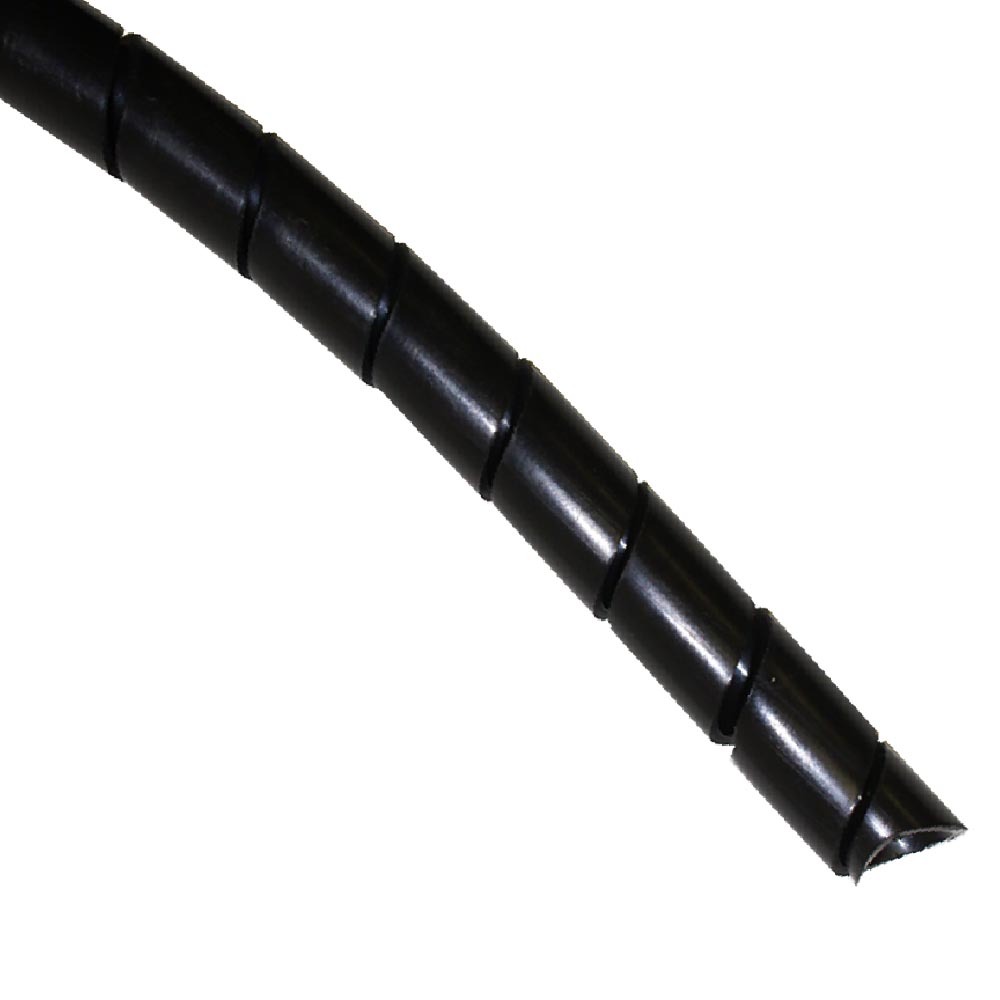

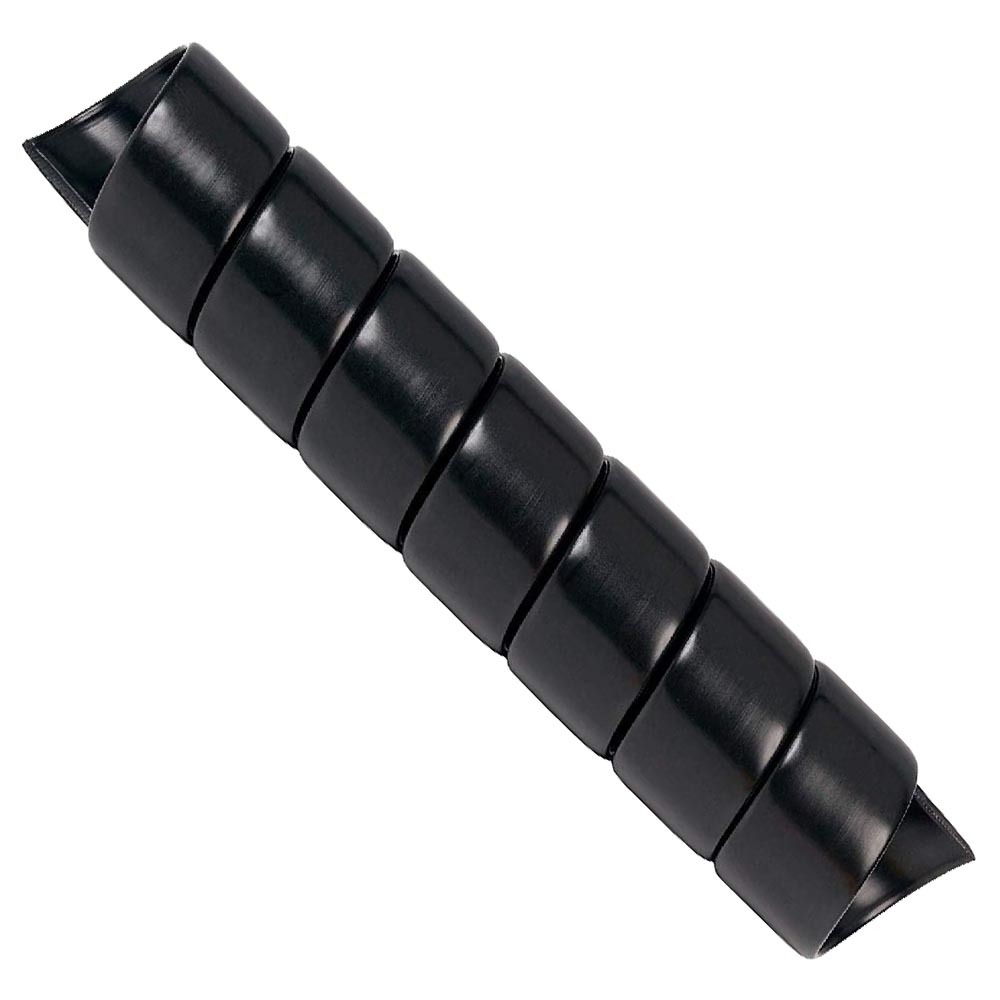

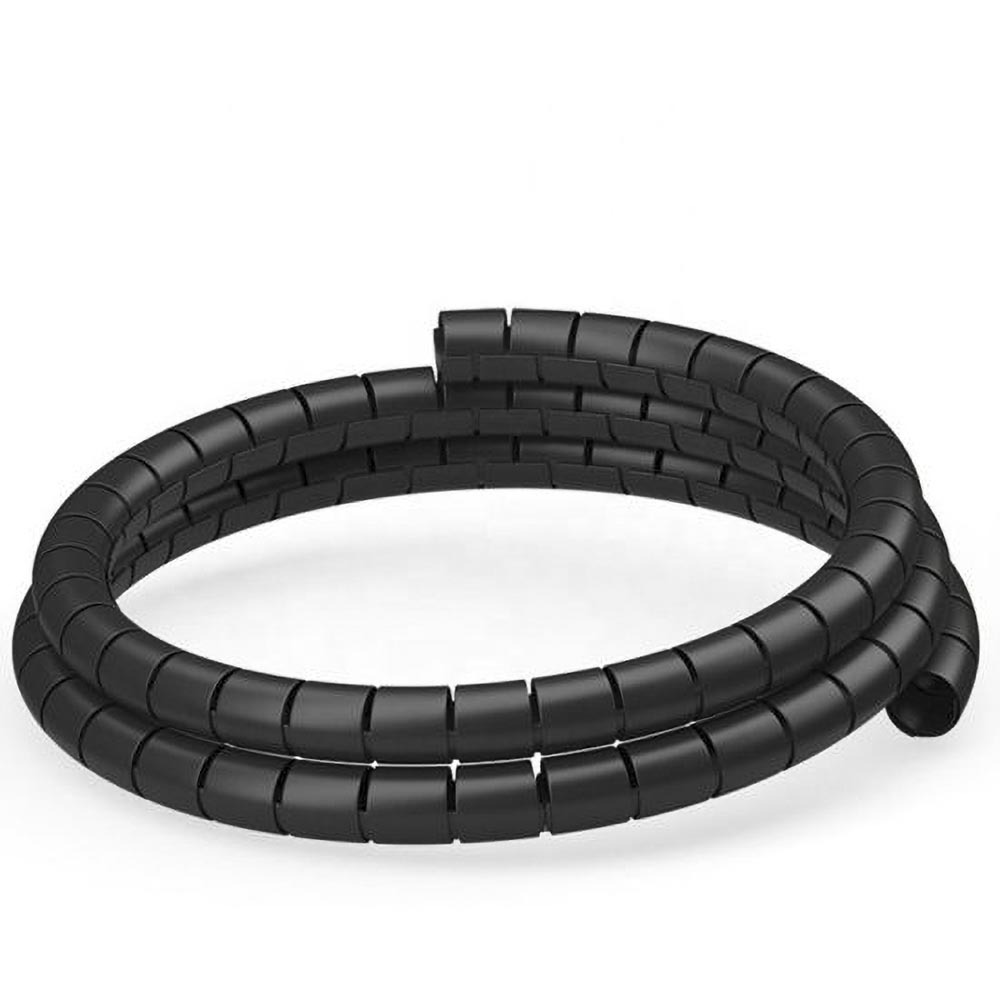

Spiral Wrap Tubing - 12mm to 17mm ID, Black - 20 Metres Long
BULK DISCOUNT RATES
Buy 2 or above | and pay only $39.80 each |
Buy 2 or above | and pay only $39.80 each |

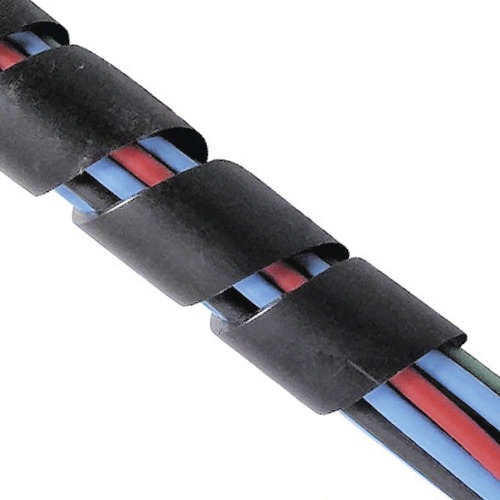

Our Spiral Wrap Tubing is mainly used as a protective wrap for hydraulic hoses and for protecting welding cables, electrical cables, air hoses and gas lines.
This spiral wrap has excellent chemical resistance, good UV stability, a long fatigue life and the ability to withstand temperatures between -40°C and +80°C (short-term peaks of 100°C). It is non-flammable and self-extinguishing to UL94 V0.
This spiral wrap tube provides heavy duty protection in a range of industrial applications. The excellent durability of the wrap provides enhanced impact and abrasion resistance, safeguarding the integrity of the contents.

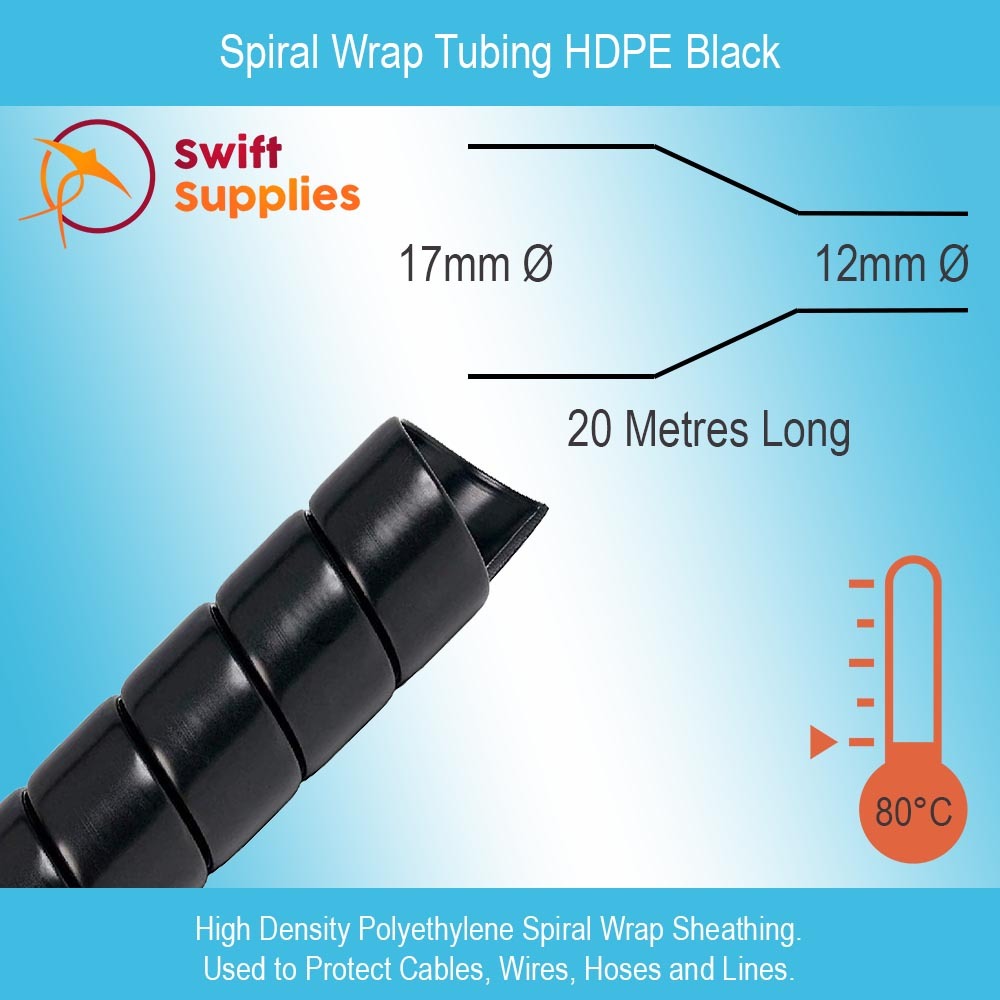

Manufactured in Australia from high-density polyethylene, this black spiral wrap sheathing is available in 7 different sizes each of which cover a range of cable or hose sizes (detailed below).
SKU | Suits Cables and Hoses with ODs Between |
SWM000544B01V0001 | 12mm to 17mm |
SWM000544B01V0002 | 16mm to 22mm |
SWM000544B01V0003 | 20mm to 28mm |
SWM000544B01V0004 | 24mm to 33mm |
SWM000544B01V0005 | 32mm to 42mm |
SWM000544B01V0006 | 40mm to 54mm |
SWM000544B01V0007 | 52mm to 65mm |
Operating Temperature Continuous |
-40°C to +80°C |
---|---|
Operating Temperature Short-Term Peak |
+100°C |
Flammability - Self Extinguishing | UL94 V0 |
Flame Retardance | Self-extinguishing |
RoHS | Compliant |
Chemical Resistance | |
Fuels Aliphatic Hydrocarbons Aromatic Hydrocarbons |
Not Resistant Not Resistant |
Automotive Fluids Oils, Greases Brake, Hydraulic Fluids |
Compatible Compatible |
Organic Solvents Esters Ethers Ketones |
Compatible Compatible Compatible |
Acids Organic Inorganic |
Compatible Compatible |
Spiral Wrap Size | ID (+/- 0.5mm) |
Wall (+/-0.25mm) |
Width (+/- 0.5 - 1mm) |
12mm to 17mm | 12mm | 2.25mm | 9.5mm |
16mm to 22mm | 15mm | 2.5mm | 14.5mm |
20mm to 28mm | 19mm | 2.75mm | 17.5mm |
24mm to 33mm | 23mm | 3.5mm | 22mm |
32mm to 42mm | 30.5mm | 4.25mm | 29mm |
40mm to 54mm | 38mm | 4.25mm | 35mm |
52mm to 65mm | 47mm | 5.5mm | 35mm |
SKU | SWM000544B01 |
---|
