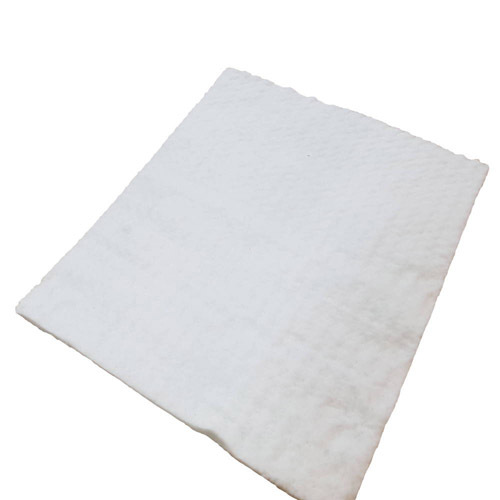

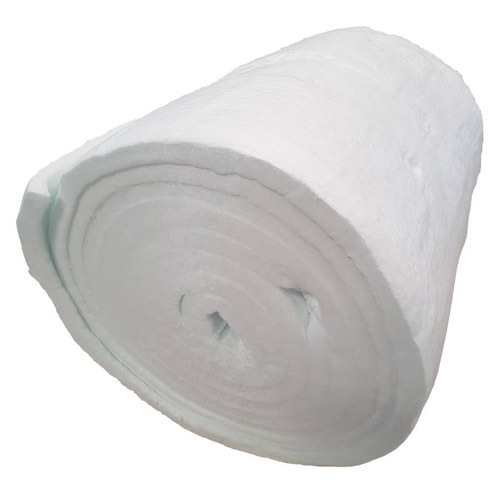

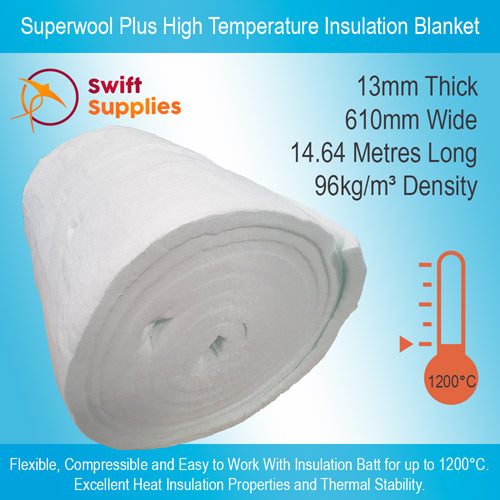

Superwool Plus Blanket - 13mm Thick x 610mm x 14.64Mtrs (96kg/M³)

SKU: SWM000211B01V0001
Availability: Available for Fast Dispatch.
$316.39
INC. GST
$287.63
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 2 - 4 and pay only $309.46 each
Buy 5 or above and pay only $303.06 each
  • A new type of insulation fibre made from high temperature insulation wool.
  • Withstands temperatures up to 1,200°C.
  • Exceptional thermal performance, good sounds absorption and soft to the touch, flexible and resilient.
  • Contains no lubricants or binders.

Superwool Plus High Temperature Insulation Blankets are designed to provide excellent heat protection and thermal insulation. This new type of blanket is starting to replace those made with loose ceramic fibres as these become more and more regulated.

Outstanding Thermal Properties and Heat Resistance.

Using a new manufacturing method, Superwool Plus insulation blankets are made to withstand continuous exposure to temperatures up to 1200°C (2192°F). At these temperatures they provide outstanding insulation performance coupled with excellent thermal stability. They retain their original soft fibrous structure and do not emit any fumes or smell during initial firing.

These insulating blankets have low heat storage and are immune to thermal shock. They contain no binders or lubricants which could burn off at elevated temperatures.

Easy to Work With.

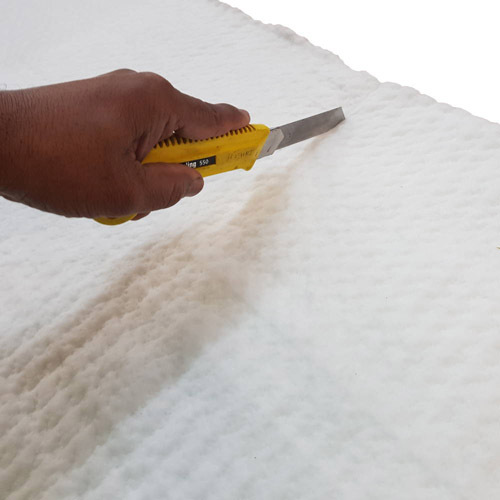

Superwool High Temperature Blankets are needled from both sides of the surface when they are made. This process results in a blanket with good physical properties which is quite easy to work with. Superwool Plus resists tearing but can be cut easily using a standard Stanley knife.

They are soft to the touch and do not exhibit the same degree of skin irritation associated with traditional ceramic or fibreglass blankets.

Versatile.

Though they are designed primarily for heat insulation, Superwool Plus Insulation has good acoustic properties and sound absorption. This side-benefit can be particularly useful for when they’re installed around noisy equipment or parts.

These blankets are exhibit very good chemical resistance and are unaffected by most chemicals except strong alkalis, phosphoric acid and molybdenum.

Safe.

Superwool Plus meets the requirements of Note Q of European Regulation I272/2008. There is also no requirement for warning labels with these materials under the Global Harmonised System (GHS) for the classification and labelling of chemicals.

Typical Applications for Superwool Plus Blankets

The combination of outstanding thermal performance, enhanced safety and physical properties has led to Superwool plus blankets being used in a variety of areas. Just some of these include…

  • Pipe wraps, pipe lagging and pipe insulation.
  • Chimney insulation.
  • Annealing furnace linings.
  • Automotive exhaust heat shields.
  • Aluminium transfer launder covers.
  • Welding stress relief.
  • Domestic and commercial oven insulation.
  • Furnace and kiln backup insulation.
  • Storage heater insulation.
  • As a filler material for high temperature composite insulation parts and components.
Colour White
Classification Temperature 1,200°C
Density 96 kg/m³ 128 kg/m³ 160 kg/m³
Thermal Conductivity - ASTM C-201, W/m K
@ 200°C 0.05 0.05 0.04
@ 400°C 0.09 0.08 0.07
@ 600°C 0.14 0.12 0.11
@ 1,000°C 0.29 0.25 0.23
@ 1,200°C - - -
Tensile Strength
EN 1094-1, kPa
55 75 90



SKU SWM000211B01

Technical Data Sheet.

TDS Link
Superwool Plus Insulation Blanket TDS
