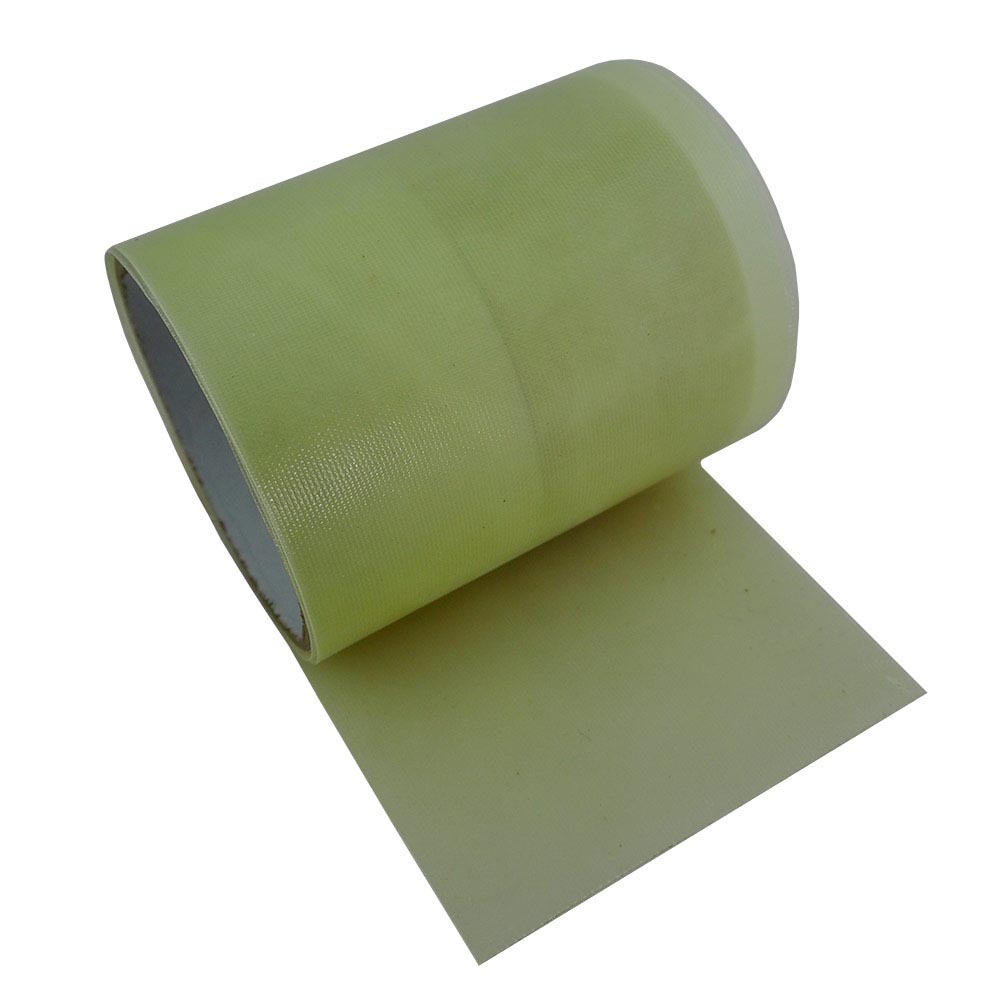

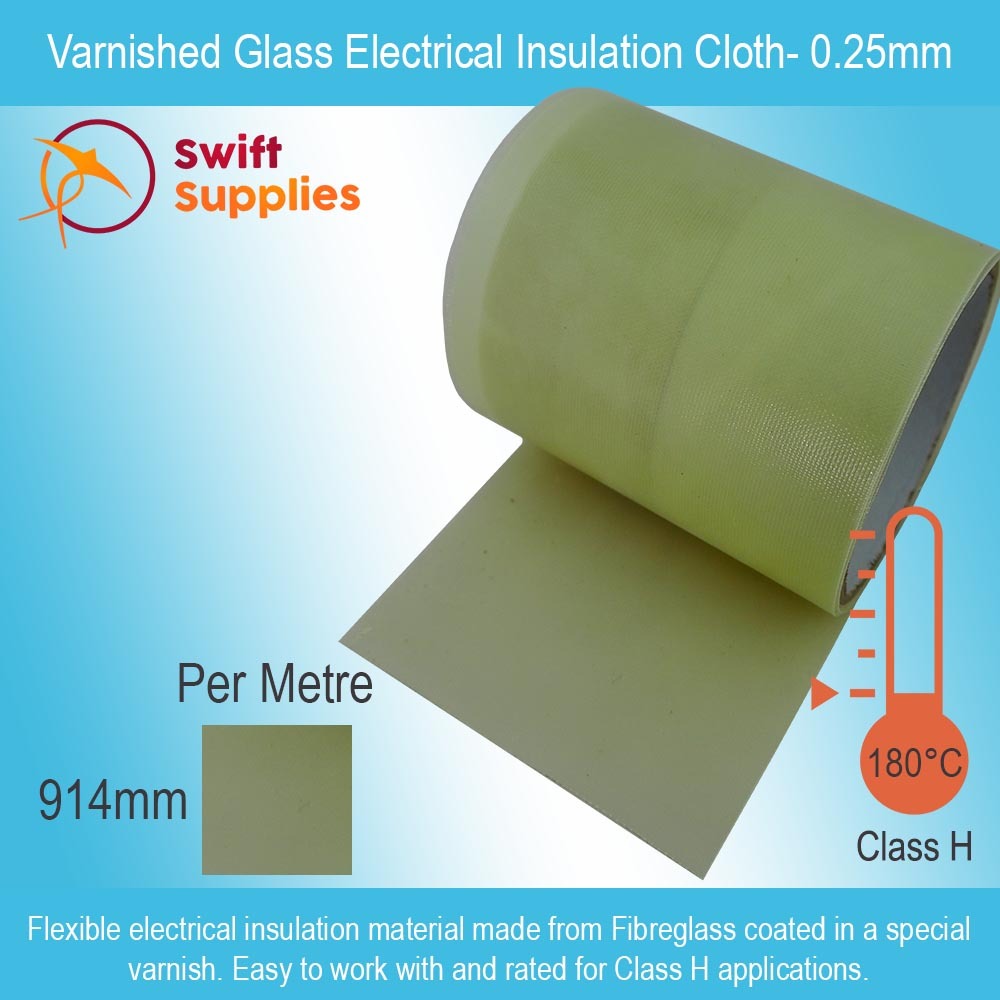

Varnished Glass Cloth - Deglas FG 2949 - 0.25mm Thick x 914mm Wide (Per Metre)

SKU: SWM000499B01V0001

Availability: Available for Fast Dispatch.

$57.44

INC. GST

$52.22

EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.

Buy 5 - 9	and pay only $46.86 each
Buy 10 or above	and pay only $45.58 each

Browse All Our Isovolta Browse All Our Varnished Glass Cloth - Deglas FG 2949 - 0.25mm Thick x 914mm Wide (Per Metre)

Description
Specifications

Description

Flexible electrical insulation material made from fibreglass fabric coated with a special varnish.
Smooth surface finish, easy to handle and cut.
180°C (Class H) electrical insulation material with excellent electrical properties.
High mechanical strength.

Our Varnished Glass Cloth is a high temperature, high quality electrical insulation material produced by Isovolta. This composite insulation sheet is manufactured from woven fibreglass cloth that is coated with a modified polyester resin varnish.

The resulting cloth has a smooth surface finish, excellent dielectric properties and good mechanical strength.

Property	Test Method	Units	Value
Thickness	IEC 626	mm	0.25
Composite Code	-	-	7 / 10
Thickness Tolerance	IEC 60394	%	± 10
Total Weight	IEC 60394	g/m²	350
Glass Cloth Base	-	g/m²	200
Resin Content	-	g/m²	150
Breakdown Voltage	IEC 60394	kV	≥ 10
Tensile Strength Longitudinal	IEC 60394	N/10mm	≥ 150
Tensile Strength Transverse	IEC 60394	N/10mm	≥ 90
Elongation Longituidnal	IEC 60394	%	≥ 1.5
Elongation Transverse	IEC 60394	%	≥ 1.5
Thermal Class	IEC 60219 UL 1146	°C	180

Varnished Glass Cloth is typically used as an electrical insulation material in applications that require high dielectric strength. Specific applications include phase insulation for low and medium voltage electric motors and as an interlayer insulation in transformers and rotating machines.

Deglas FG 2949 Varnished Glass is rated for use in Class H (180°C) electrical applications. We are pleased to offer this quality insulation material by the metre. Cut components can also be produced upon request. For more information on these, please do contact us.

Specifications

Property	Test Method	Units	Value
Thickness	IEC 626	mm	0.25
Composite Code	-	-	7 / 10
Thickness Tolerance	IEC 60394	%	± 10
Total Weight	IEC 60394	g/m²	350
Glass Cloth Base	-	g/m²	200
Resin Content	-	g/m²	150
Breakdown Voltage	IEC 60394	kV	≥ 10
Tensile Strength Longitudinal	IEC 60394	N/10mm	≥ 150
Tensile Strength Transverse	IEC 60394	N/10mm	≥ 90
Elongation Longituidnal	IEC 60394	%	≥ 1.5
Elongation Transverse	IEC 60394	%	≥ 1.5
Thermal Class	IEC 60219 UL 1146	°C	180
