Automatic Cable and Wire Stripper No. 7 Magic

SKU:
SWM000194B01V0001
MPN:
51000007
Availability:
Available for Fast Dispatch.

Bulk discount rates

All Bulk Prices Below Are Quoted Including GST.

Buy 3 - 5 and pay only $96.61 each
Buy 6 or above and pay only $94.81 each

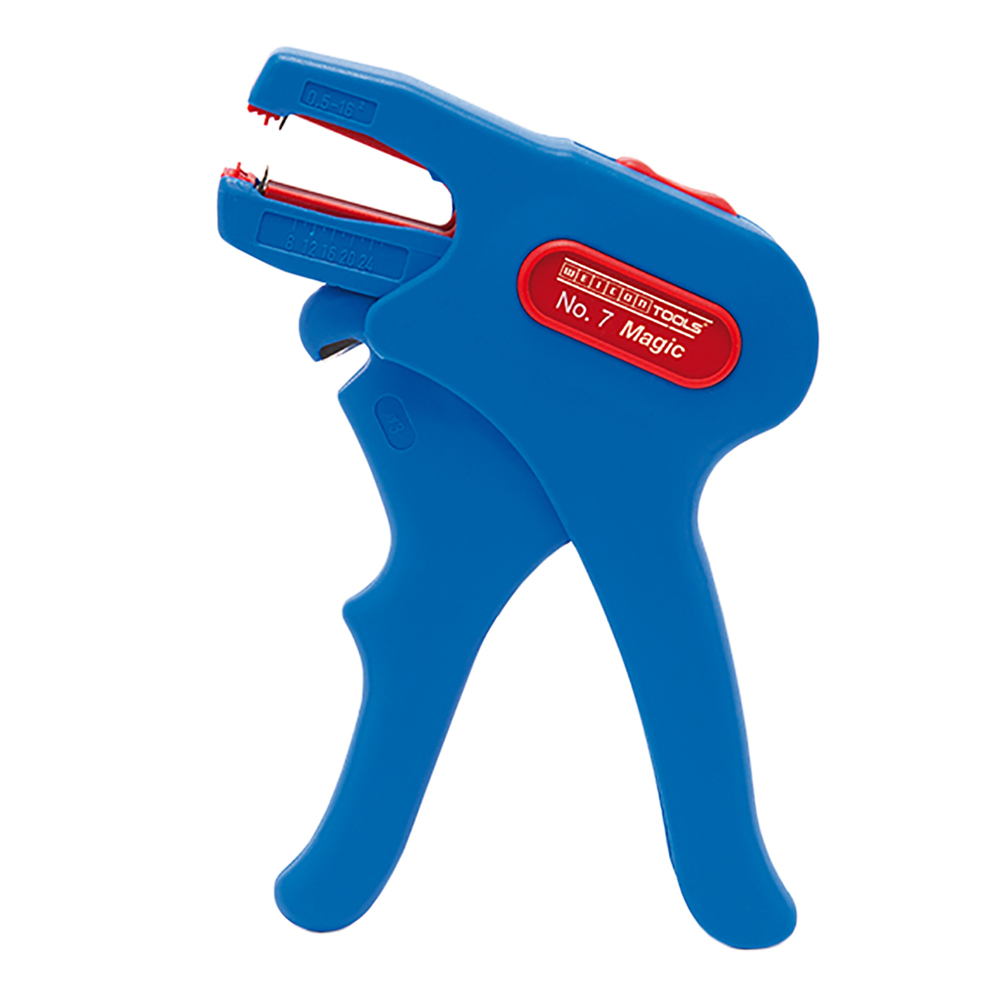

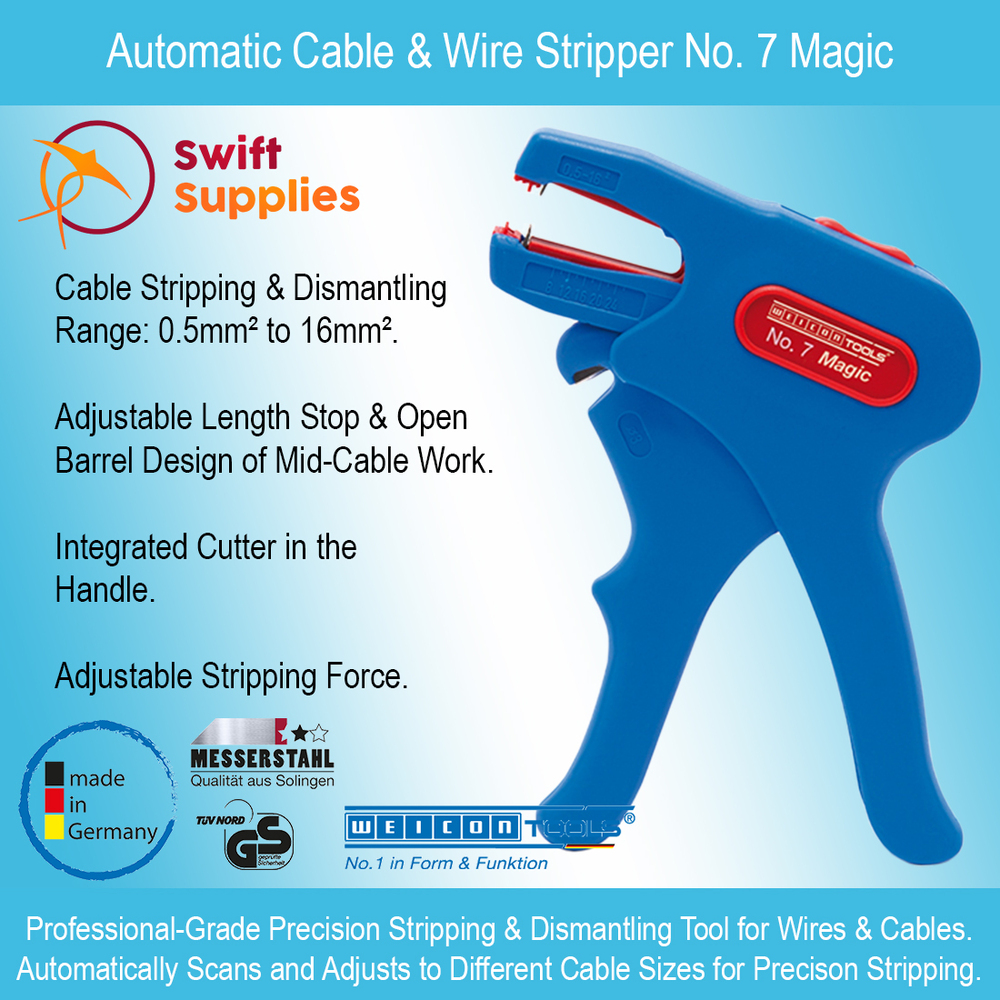

  • Info Image for our Automatic Cable and Wire Stripper No. 7 Magic; Heavy duty, automatic wire stripping tool.
  • A feast, reliable and high performance cable and wire stripping tool. Our No. 7 Magic automatically scans the cable to strip just the insulation without damaging the conductor.
  • 7 Magic Cable & Wire Stripper Compatability Info Image

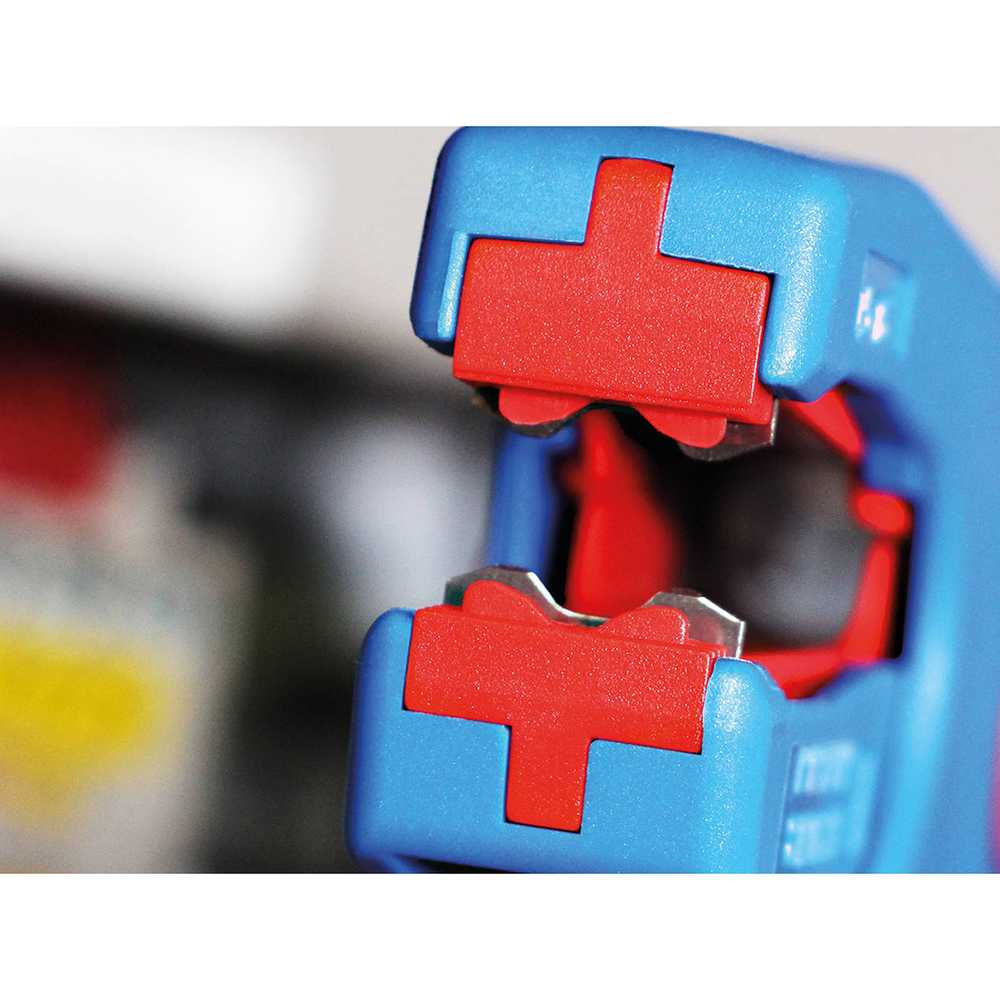

  • Close up view of steel blades on our Automatic Cable Stripper No. 7 Magic

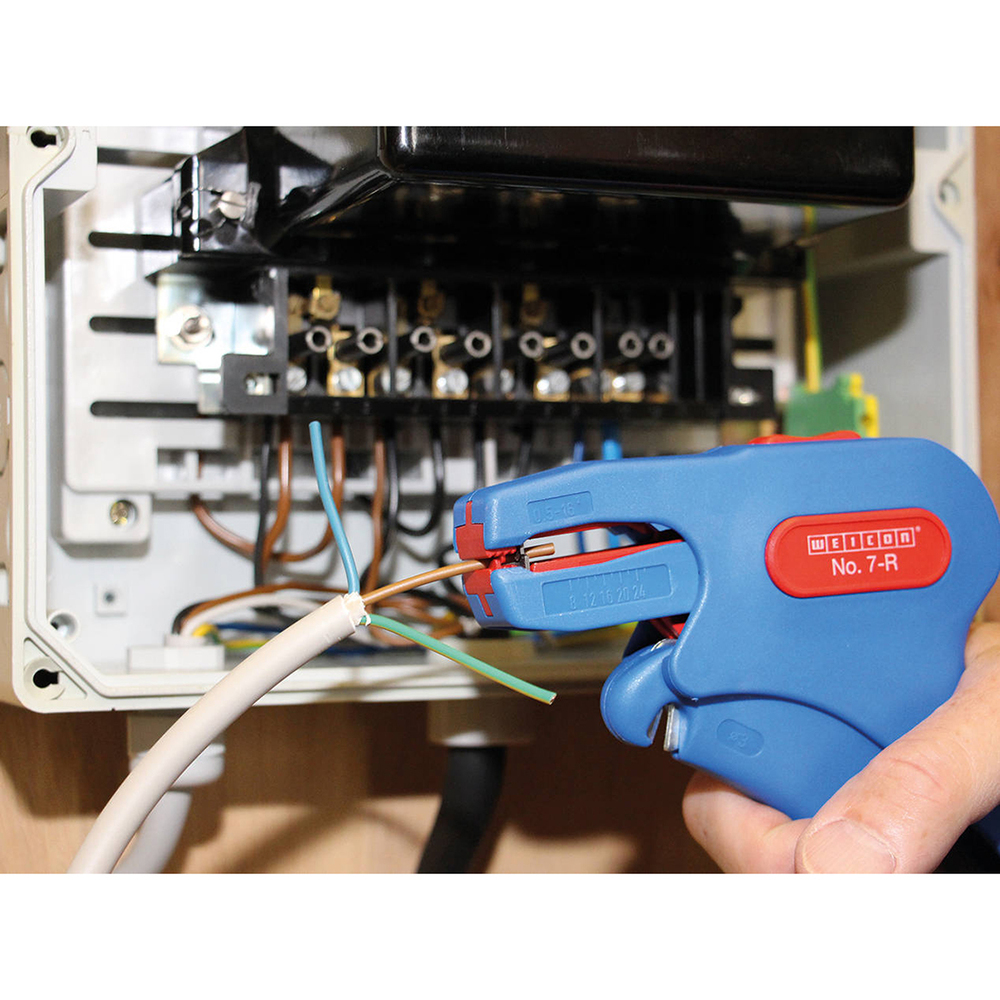

  • Multi Core Cable Stripping Automatic Cable and Wire Stripper No. 7 Magic

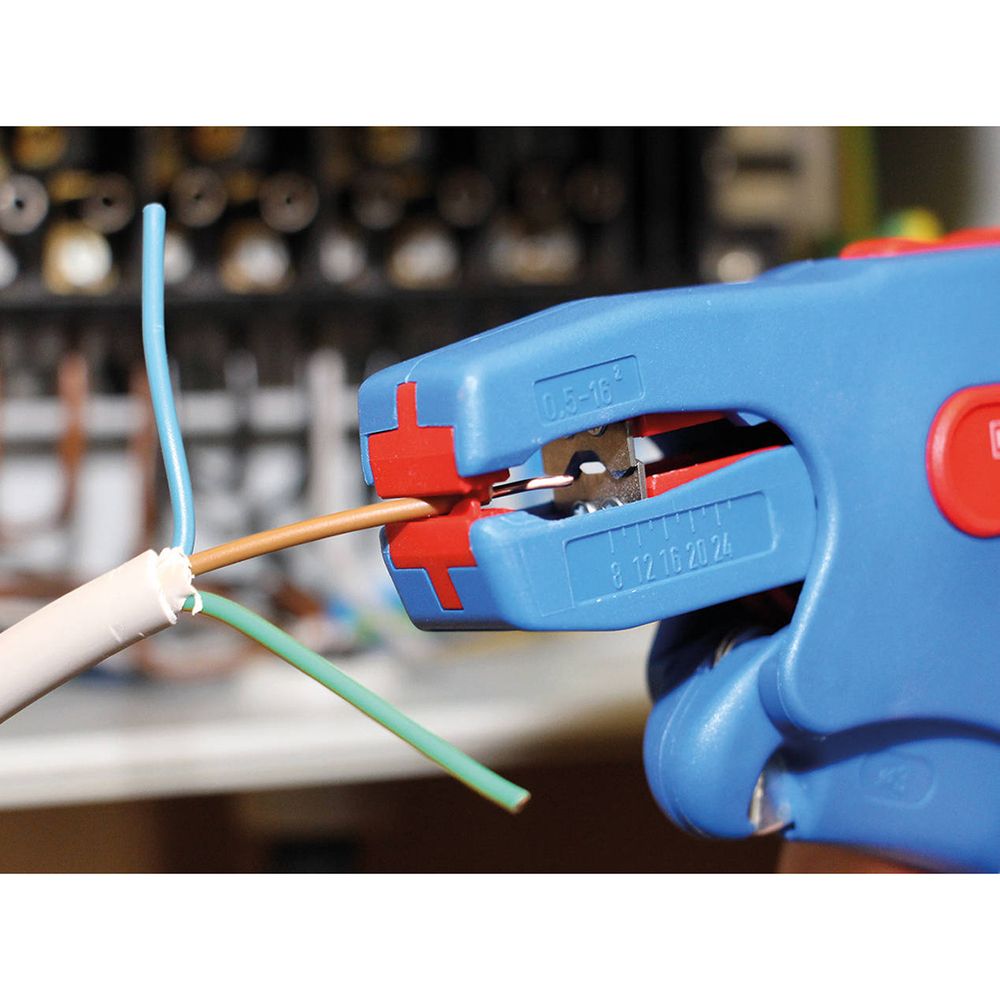

  • Precise wire stripping with Automatic Cable and Wire Stripper No. 7 Magic
  • Side Cable Cutter on Automatic Cable and Wire Stripper No. 7 Magic

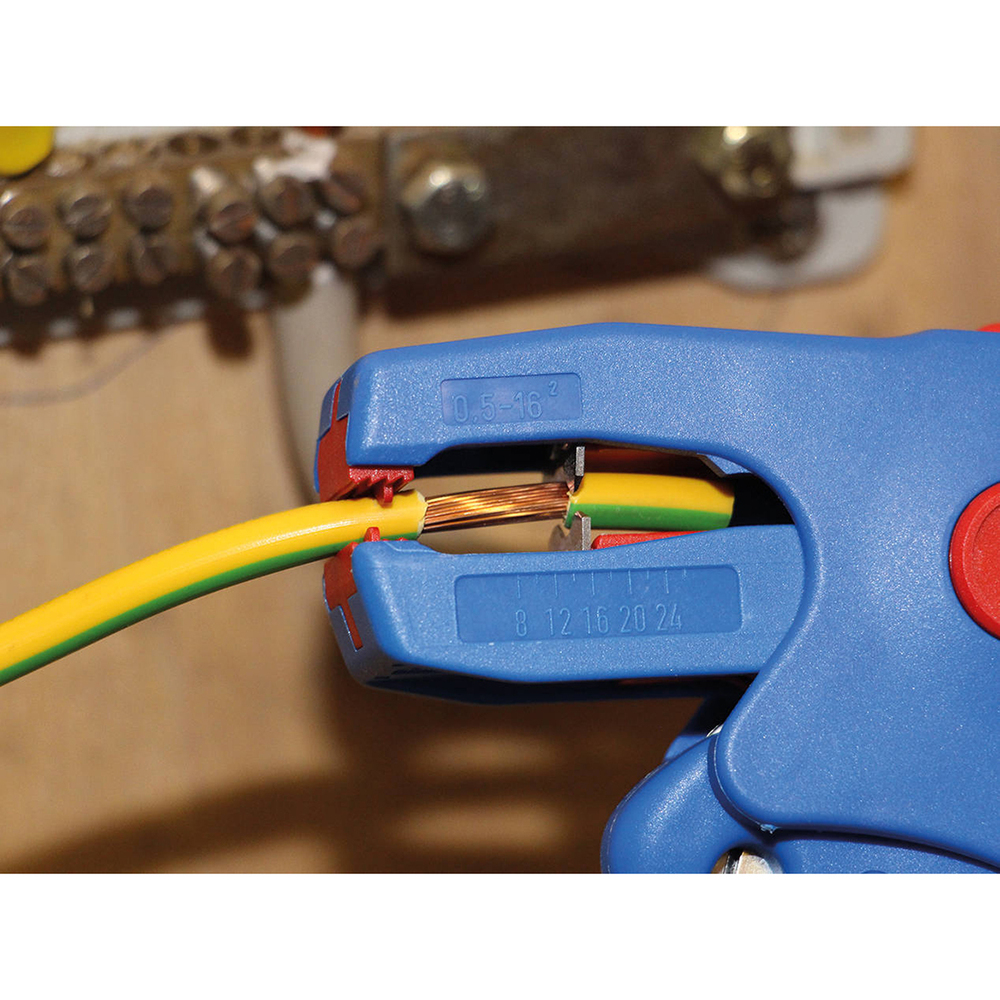

  • Stripping a earthing cable with our Automatic Cable and Wire Stripper No. 7 Magic
  • Adjustable scale on Automatic Cable and Wire Stripper No. 7 Magic
$99.19
Inc. GST
$90.17
Ex. GST
Frequently bought together:

Description

  • Versatile cable and wire stripping tool that automatically adjusts to the cable size you’re working with.
  • Suits flexible cables between 0.5mm² and 16mm² Cross-Section.
  • Precise optical length scale to adjust how much insulation is stripped back.
  • Integrated side cutter can cut cable up to 3mm Ø.

Our Weicon Automatic Cable and Wire Stripper No. 7 Magic is a incredibly versatile, reliable and easy to use cable stripping tool. This stripper automatically adjusts to the cable size you’re working with and strips back just the insulation sheathing, leaving the conductor completely intact.

Our No.7 Magic Cable Stripper can be used with flexible, round cables between 0.5mm² and 16mm² (24 – 10 AWG) cross section and solid round cables between 0.5mm² and 10mm² (18 – 15 AWG).

This stripper is also able to handle flexible multi-core cables. Use once to strip back the outer layer of insulation, separate the individual wires, and use the same tool again to strip the insulation from these individual lines.

When you need to adjust the amount of insulation you remove, this is easy. The No. 7 Magic features an adjustable optical scale with 5 stops. It allows you to set a stripping range between 8mm and 24mm in length.

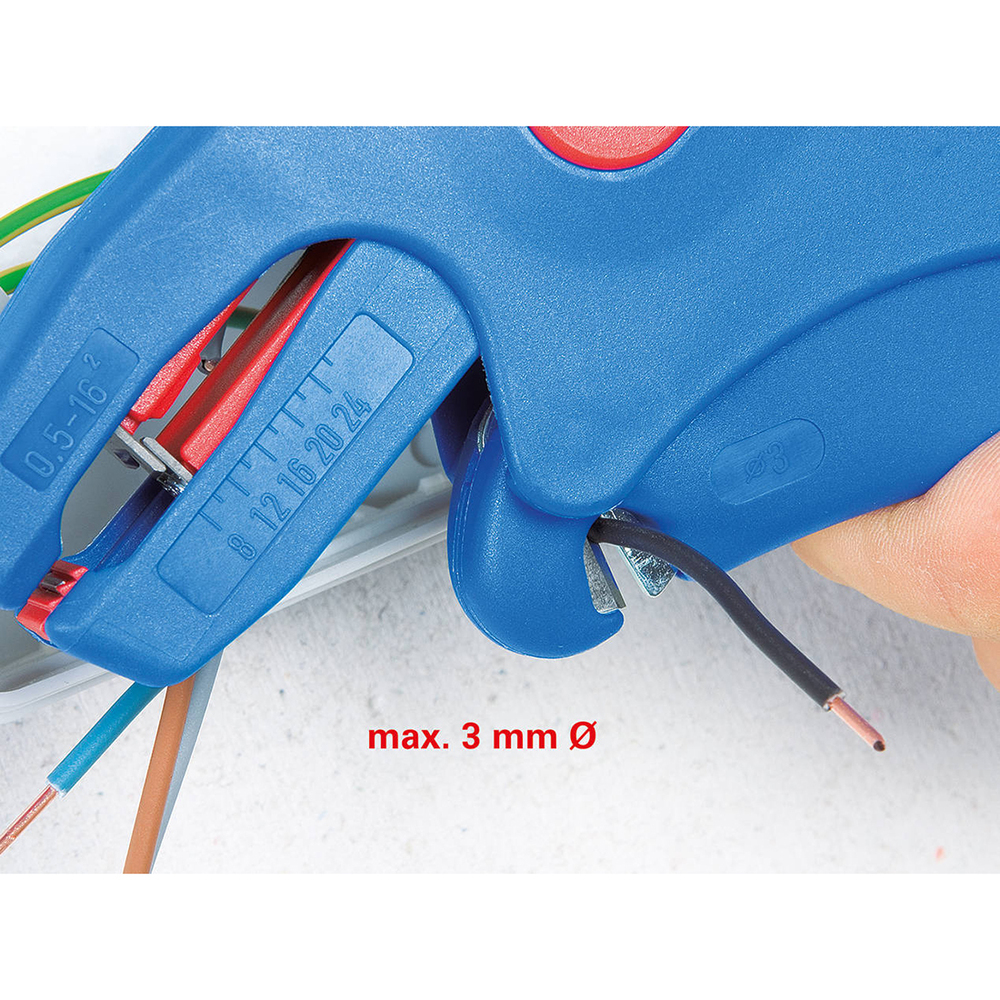

Also built into this high quality, German-made cable stripper is a handy side-cutter. Located safely away at the top of the handle, this can be used to cut cables up to 3mm Ø.

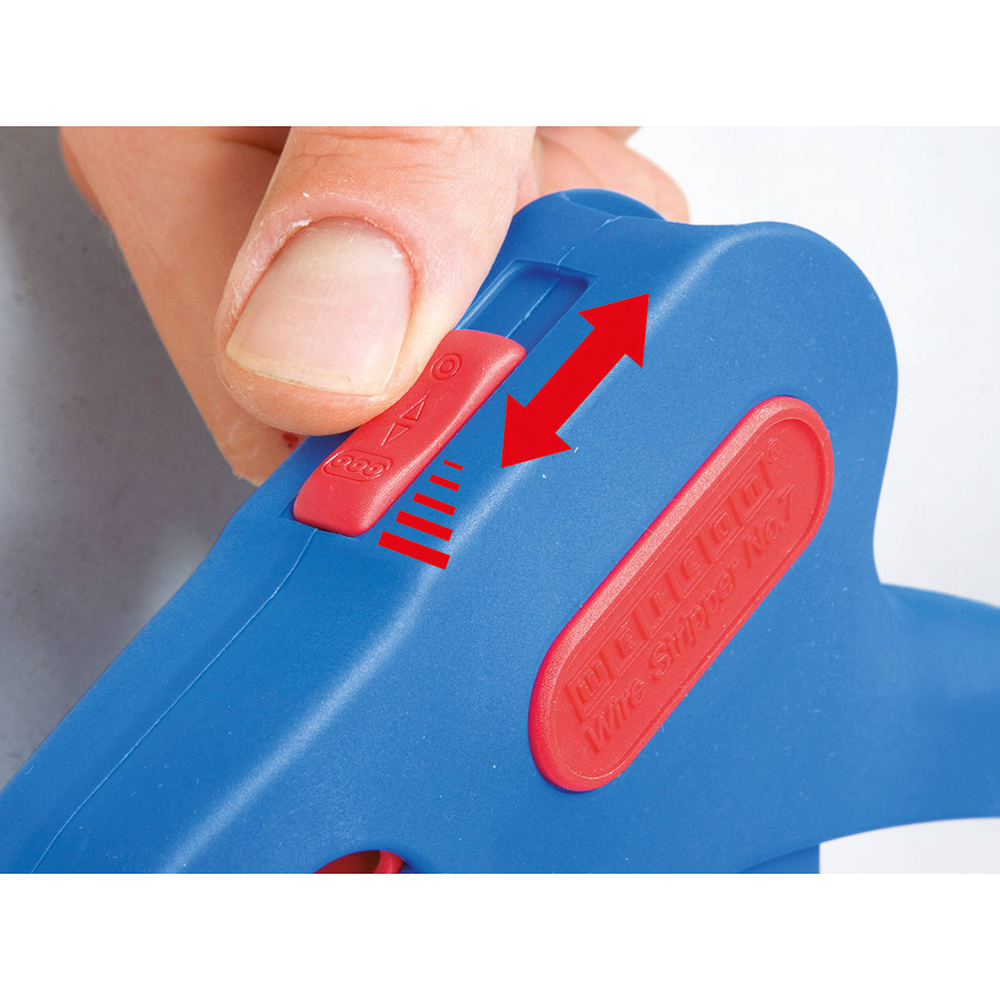

Depending on the size and type of cable you’re working with (and your own individual preference), it may be necessary to adjust the force of the trigger. Once again, the No. 7 makes this easy. A slider at the top of the tool allows for fast, easy adjustment.

This stripper can be used to strip cable ends or, since its’ barrel is open ended, to strip insulation for the middle of a length of cable. The video below shows both use cases.

This versatile, automatic cable and wire stripper is widely used in the automotive, marine, construction, maintenance and, of course, electrical industry all around the world. It is designed and manufactured in Germany using very high-quality steel from Solingen and fibreglass reinforced polyamide. The blades are replaceable but, given their quality and incredibly long service life, it’s very rare that it comes to this.

Dowloands & Resources

Automatic Cable and Wire Stripper No. 7 Magic Specifications.

Cable Type Fine Wired and Solid Conductors with PVC Insulation
Field of Use Flexible Cables: 0.5mm² to 16mm²
Solid Cables: 0.5mm² to 10mm²
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 3mm Ø Cable
Adjustable Length Scale.
Adjustable Force.
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 175mm
Weight 216gm
Accessories Replacement Blade Set. Item No. 51100006

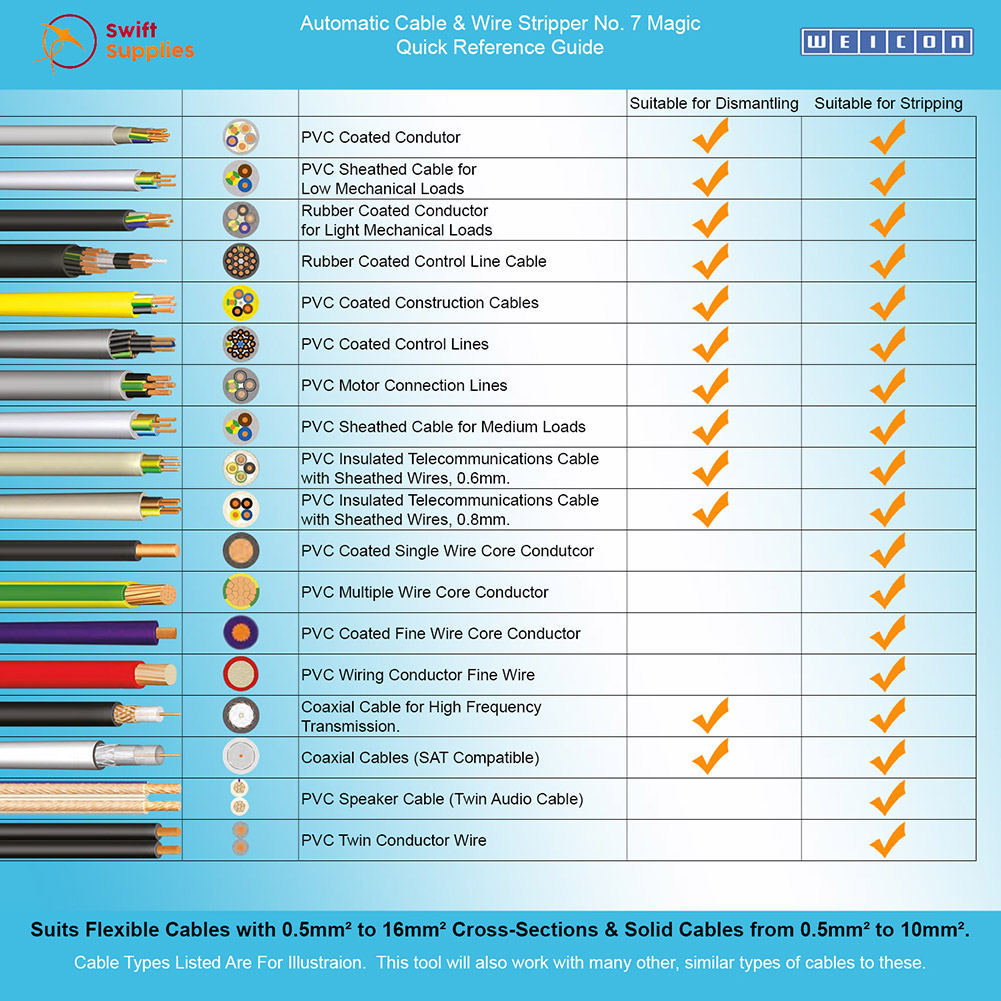

7 Magic Cable Stripper Compatability Info.

This cable stripping tool is able to effectively strip a very large range of cable types and sizes. The chart below provides a brief overview of some of the more common types it can handle (click to expand). It's not a complete list though, this tool will also be able to precisely strip and dismantle many other cable types of a similar size and sheath.

7 Magic Cable & Wire Stripper Compatability Info Image
