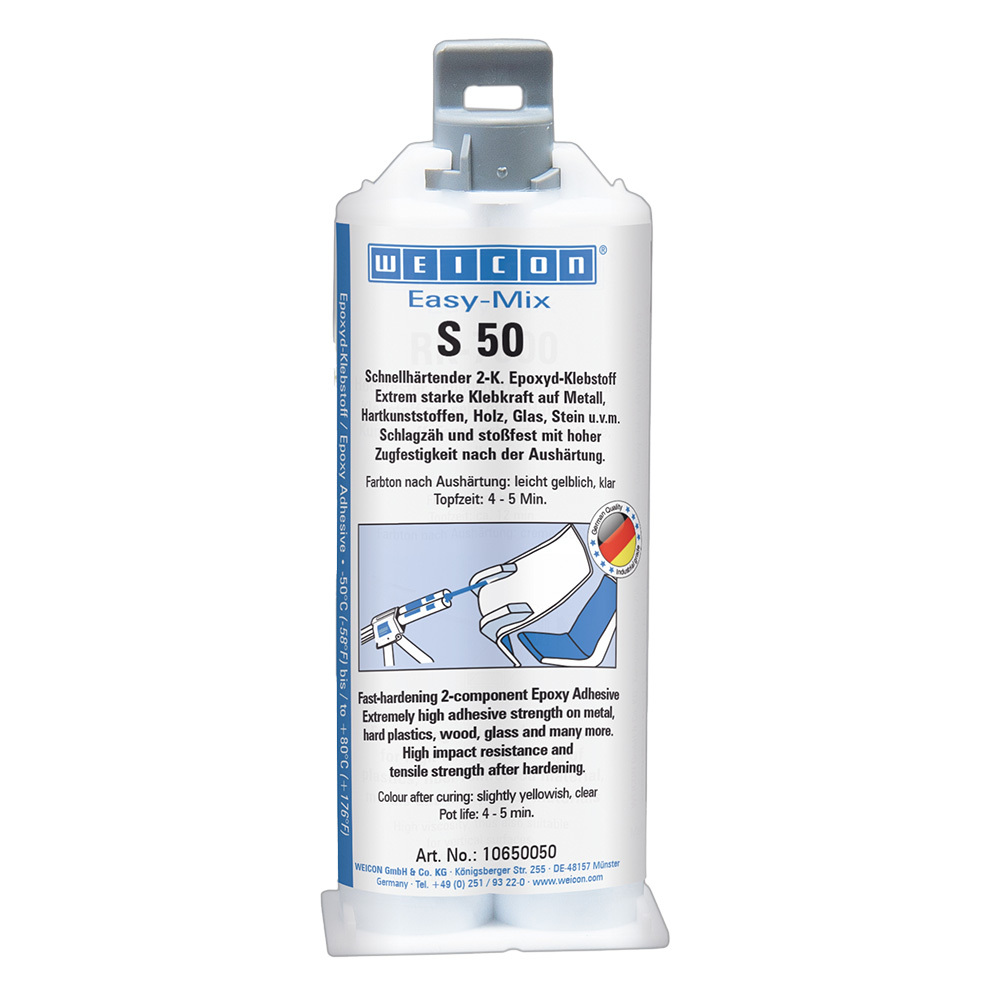

Easy-Mix S 50 Epoxy Adhesive - 50ml

SKU:
SWM000259B01V0001
MPN:
10650050
Availability:
Available for Fast Dispatch.

Bulk discount rates

All Bulk Prices Below Are Quoted Including GST.

Buy 3 - 5 and pay only $34.53 each
Buy 6 - 11 and pay only $31.35 each
Buy 12 or above and pay only $28.37 each
  • Info Image for our Easy-Mix S 50 Epoxy Adhesive; A High strength, fast curing epoxy glue for most materials
  • An extremely high strength adhesive, our Easy-Mix S 50 Epoxy is ideal for high strength bonding of metal, plastic, wood, ceramic, stone, glass and more. It cures fast and is very easy to use thanks to the Easy-Mix Dosing System.

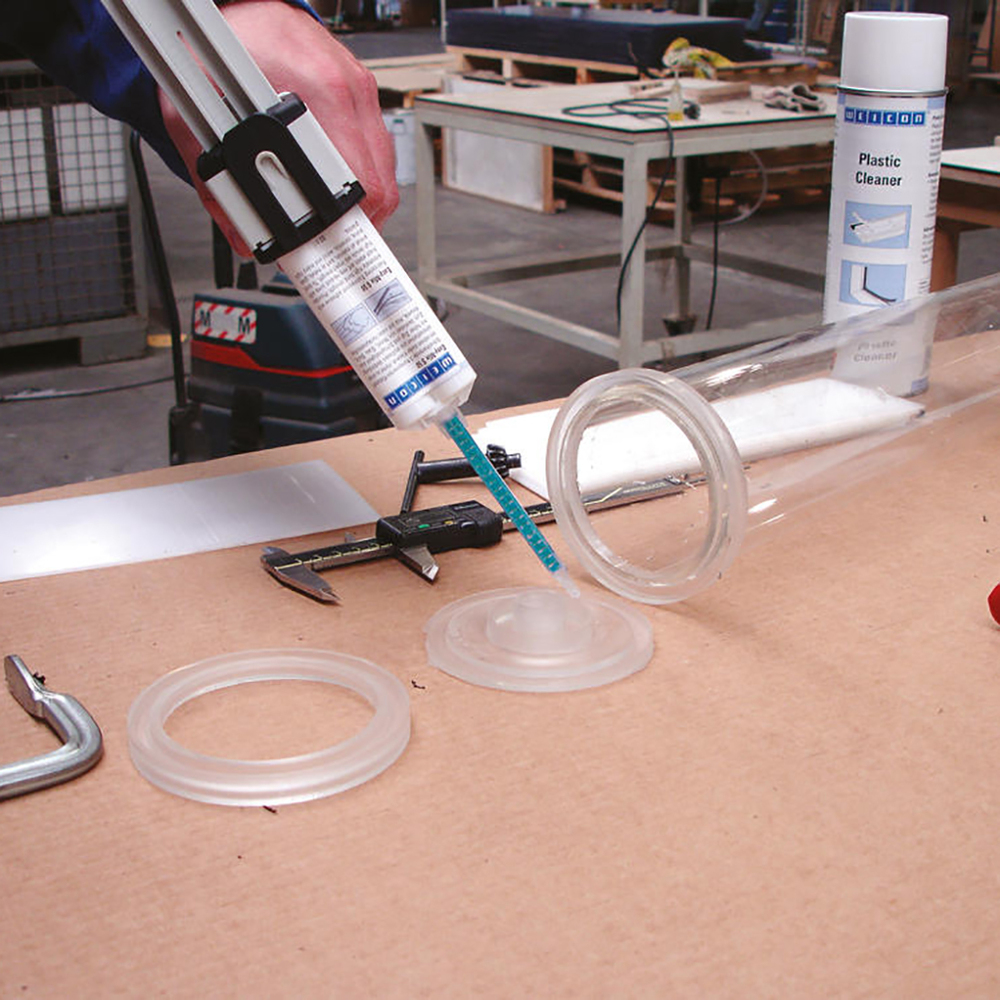

  • Easy-Mix S 50 Epoxy Adhesive used to bond the lids on plastic containers

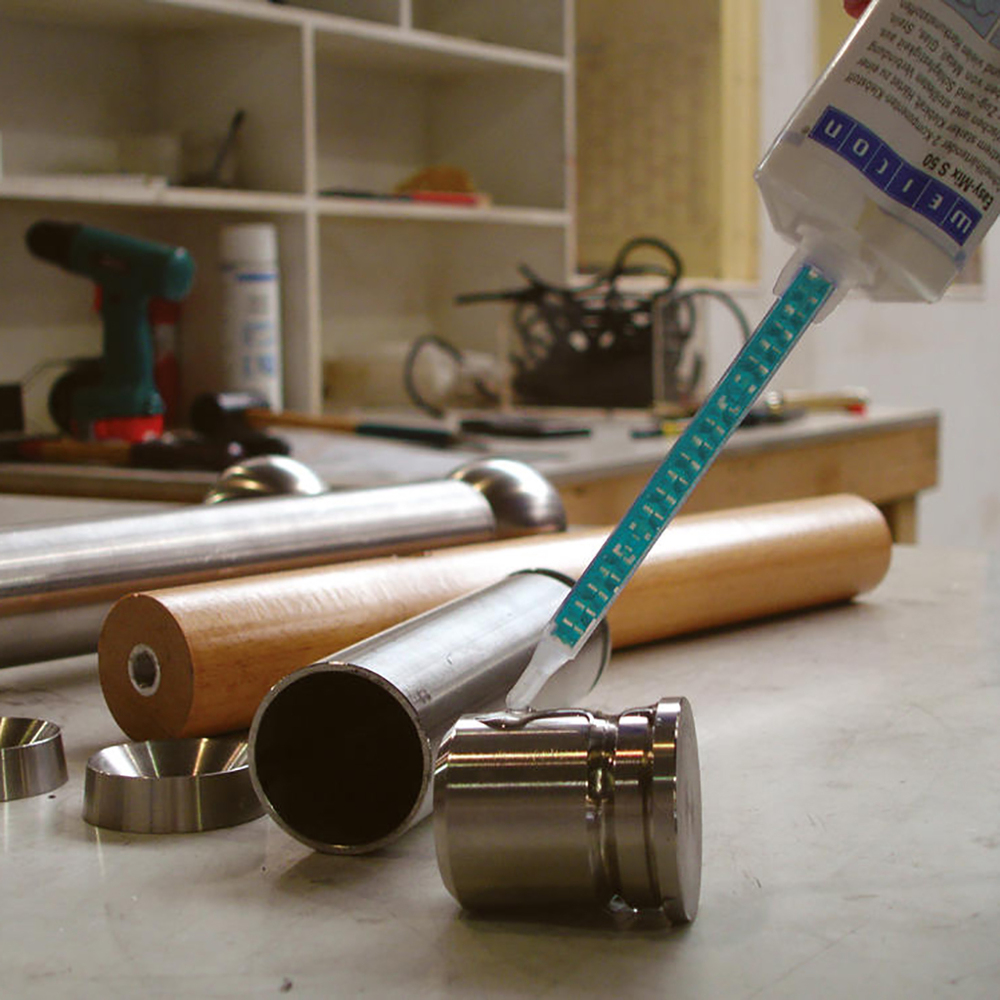

  • Securing metal plugs with Easy-Mix S 50 Epoxy Adhesive

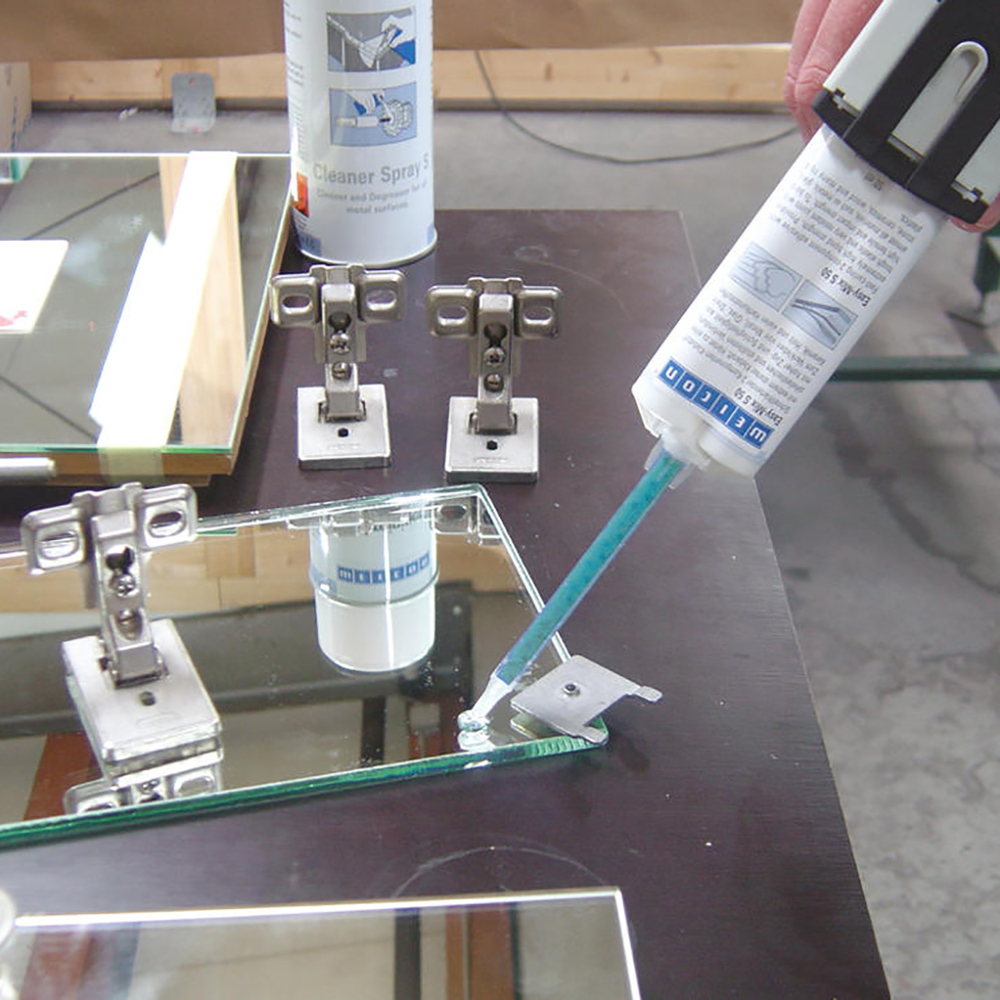

  • Attaching mirror mounts with Easy-Mix S 50 Epoxy Adhesive
$37.26
Inc. GST
$33.87
Ex. GST
Frequently bought together:

Description

  • Very strong adhesive with extremely high adhesive force.
  • Very short pot life and fast curing.
  • Viscous, self-levelling epoxy able to be used on a wide range of materials.
  • Easy-Mix System means there’s no complex measuring or manual mixing.

Our Easy-Mix S 50 Epoxy Adhesive is a professional-quality epoxy adhesive suitable for manufacturing, construction and repair work. This two-part Epoxy is extremely strong and able to create permanent, long lasting bonds between metals, plastics, fibre reinforced materials, ceramic, glass, stone and more.

Our Easy-Mix S 50 has a short-pot life and a fast cure time. Bonds made with this epoxy will achieve handling strength in about 30 minutes and can bear mechanical loads after about an hour.

Manufactured by Weicon in Germany, this industrial-grade epoxy has several features and benefits that have led to its use in industries around the world. These include…

Extremely High Adhesive Force.

Easy-Mix S 50 is used for creating strong, permanent bonds. This industrial glue has been tested (in accordance with DIN 53283 standards) with a variety of materials. In these tests, mean shear strength ratings of 20N/mm² for sand-blasted steel and 13 N/mm² for rigid PVC were recorded.

The adhesive itself is also quite strong. Cured S 50 has a pressure rating of 9 Mpa and a bend strength of 58 Mpa. Both are excellent results that indicate an adhesive capable of not only bonding but withstanding the rigours of demanding industrial environments.

Excellent Material Compatibility.

One of the reasons epoxy adhesives are so popular is that they work with a wide variety of materials. Easy-Mix S 50 is no different and boasts excellent versatility in the different types of surfaces and substrates it will work with. These include…

  • Active and Passive Metals – Including Steel, Stainless Steel, Brass, Copper, Aluminium, Nickel, Zinc and Bronze.
  • Many Types of Plastic – Including Fibreglass, Fibre Reinforced Grades, PVC, ABS, Nylon, Polycarbonate and more.
  • Wood and Wood Products.
  • Glass and Mirror Surfaces.
  • Ceramics and Tiles.
  • Stone and Brick.

Viscous and Self-Levelling Epoxy Glue.

Our Easy-Mix S 50 is a thick, viscous style of glue. It’s viscosity (once mixed) is listed as 8,500 mPas. This is getting up towards that of honey which usually has a viscosity of about 10,000 mPas. This thick nature makes Easy-Mix S 50 a great choice for bonding small items or bonding jobs that require high-precision application.

Weicon S 50 Epoxy Adhesive is also a self-levelling glue. This is important for those looking to use it to fill small cavities or as an epoxy encapsulant for leads, wiring or cables.

Very Fast Cure Time.

When it comes to two-part epoxies, oftentimes cure times can really drag out. Easy-Mix S 50 is different. Exact figures depend a lot on bonding conditions but, roughly speaking, you can expect 30% cure in around 30 minutes. 50% will take about an hour and it’s at that point that S 50 can bear mechanical loads. Full cure time is 24 hours.

This fast curing nature has led to Weicon Easy-Mix S 50 being chosen over and over again for manufacturing and construction work.

Easy to Use with No Complex Mixing.

The Weicon Easy-Mix Dosing System eradicates complex mixing and measuring and makes getting the right amount of glue, where you need it, simple.

Simply slot the container of S 50 Epoxy into a compatible dispensing pistol (we suggest the Weicon D 50) and attach the Quadro Mixing Nozzle (one is included with each container). That’s it. When you pull the trigger the two parts that make up S 50 Epoxy Glue will be mixed as they travel along the nozzle so that, by the time they reach the surface, you have a single homogenous adhesive.

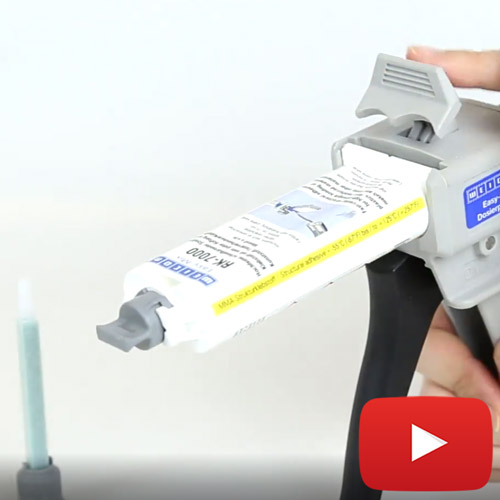

Spare mixing nozzles are also available, and the gun works with a variety of our adhesives, so you can mix and match depending on your requirements. For more information on the Easy-Mix System and to see how easy it is, check out the video included below.

Applications for S 50 Epoxy Adhesive

  • Securing (and insulating) leads, wires and connectors for electric components, devices and motors.
  • In the marine sector for boat construction and maintenance.
  • In the transport sector for vehicle body construction and attachment fitting.
  • For joining and securing ceramic and glass to vertical surfaces and walls.
  • Bonding metal parts and sheets.
  • Furniture making and repairs.
  • In the hobby, craft and DIY sectors for all kinds of high strength bonding.
  • For laminating sheets of fibreglass and other reinforced plastics.
  • Attaching plastic or wood to metal.

Easy-Mix S 50 Epoxy Adhesive Dowloands & Resources

Easy-Mix S 50 Specifications.

Colour (After Curing) Transparent
Continuous Operating Temperature -50°C to +80°C (After Cure)
Basis Unfilled Epoxy Resin
Mix Ratio 1:1 (Resin to Hardener)
Pot Life for 10ml of Material @ 20°C 4-5 Minutes
Viscosity of the Mixture 8,500 MPa
Curing Temperature +6°C to +40°C
Maximum Gap Covering Power 2mm
Handling Strength (35% Of Final) 30 Minutes (When Curing At 20°C)
Mechanical Strength (50% of Final) 1 Hour (When Curing At 20°C)
Final Strength (100% Cured) 24 Hours (When Curing At 20°C)
Average Strength, Pressure 9 MPa (DIN 53281-83, 25°C)
Average Strength, Tensile 40 MPa (DIN 53281-83, 25°C)
Average Strength, Torsion 58 MPa (DIN 53281-83, 25°C)
Shore Hardness 65 Shore D
Linear Shrinkage 2% Approx.
Electrical Resistance 1013 Ω/cm (ASTM D 257)
Dielectric Strength 1 kV/mm (ASTM D 149)
Thermal Conductivity 0.3 W/m·K (ASTM D 257)
Average Tensile Shear Strength (DIN 53281-83)
Steel, Sand-Blasted 20 N/mm²
Aluminium, Sand-Blasted 19 N/mm²
Rigid PVC, Roughened 13 N/mm²


Quick Links to Related Categories and Solutions

Browse Our Liquid Epoxy Adhesives Range.
Browse Our Whole Range of Cleaners
Browse Our Whole Range of Epoxy Adhesives & Coatings
View AllClose

Additional Information

Colour:
Transparent
Container Size:
50ml
One Part / Two Part:
Two Part
Viscosity:
8,500 mPa·s
Minimum Continuous Temperature:
-50°C
Maximum Continuous Temperature:
80°C
Max. Gap Covering Power:
2mm
Handling Strength (35% of Final):
12 Hours
Full Cure Time:
24 Hours
Shear Strength to Aluminium:
19 N/mm² (DIN 53281)
Density:
1.15 g/cm³
Shore Hardness:
65 Shore D
General Adhesion to Metals:
Highly Compatible
General Adhesion to Plastics (except LSE Types):
Highly Compatible
General Adhesion to Wood:
Compatible
General Adhesion to Glass, Ceramics:
Compatible
General Adhesion to Stone:
Highly Compatible
General Adhesion to Rubbers:
Not Compatible
Food Grade / Potable Water Approvals?:
No
