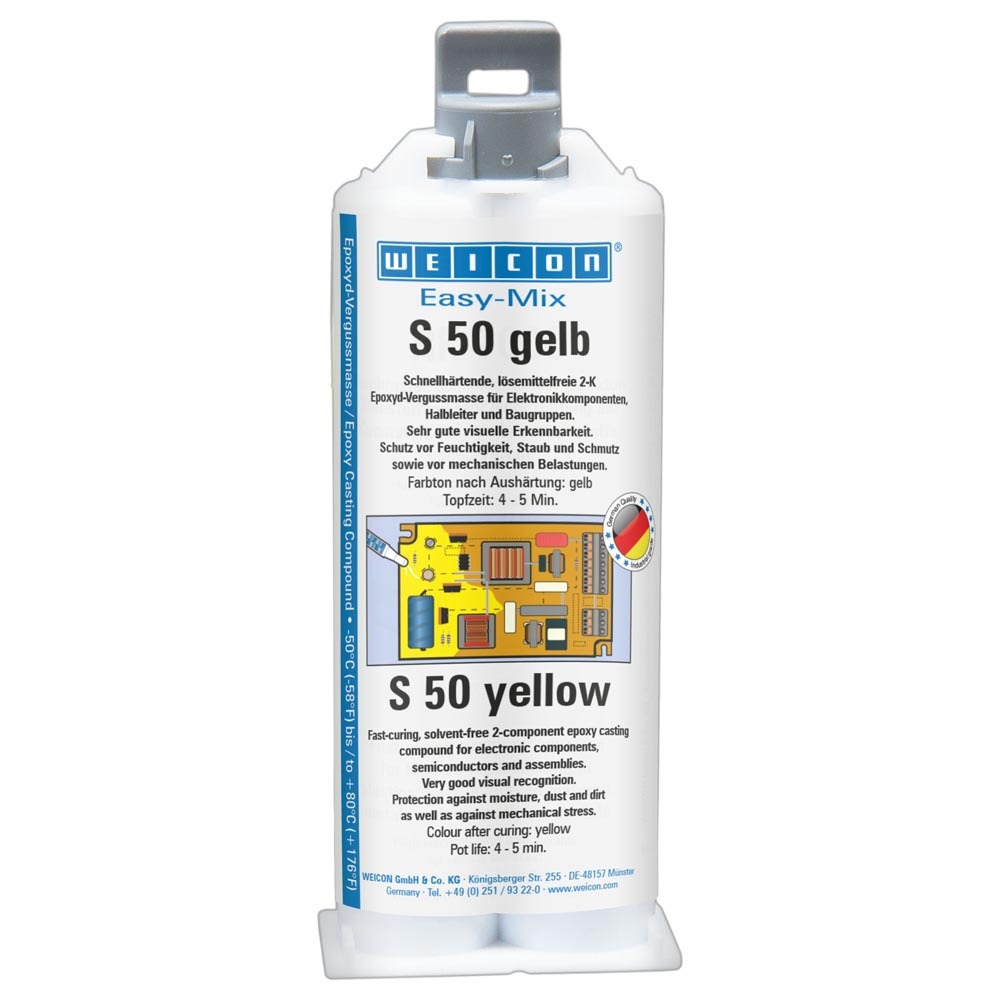

Easy-Mix S 50 Yellow Epoxy Adhesive - 50ml Cartridge

• Bright yellow colour is ideal for servising as a visual casting compound.
• Very strong adhesive with extremely high adhesive force.
• Fast curing.
• Viscous, self-levelling epoxy able to be used on a wide range of materials.
• Easy-Mix System means there’s no complex measuring or manual mixing.

Our Easy-Mix S 50 Yellow Epoxy Adhesive is a professional-quality epoxy adhesive suitable for manufacturing, construction and repair work. This two-part Epoxy is extremely strong and able to create permanent, long lasting bonds between metals, plastics, fibre reinforced materials, ceramic, glass, stone and more.

S50 Yellow has a short-pot life and a fast cure time. Bonds made with this epoxy will achieve handling strength in about 30 minutes and can bear mechanical loads after about an hour.

Manufactured by Weicon in Germany, this industrial-grade epoxy has several features and benefits that have led to its use in industries around the world. These include…

Bright Yellow Colour for Visual Casting Work.

Our S 50 Yellow Epoxy is a variation on our popular Easy-Mix S0. The main difference between the two is colour. S 50 Yellow was developed primarily in response to requests from customers for a fast curing, hgih strength epoxy for use as a casting compound.

Its distinctive yellow colour, Easy-Mix S 50 yellow facilitates visual control. It is widely used for applications in many different areas, such as grouting works in electrical engineering and the electronics industry, for casting cable connections, for applications in the insulating technology, in metal construction, in tank and apparatus construction, in fittings and in ventilating and air-conditioning systems.

Extremely High Adhesive Force.

Easy-Mix S 50 Yellow is used for creating strong, permanent bonds. This industrial glue has been tested (in accordance with EN 1465 standards) with a variety of materials. In these tests, mean shear strength ratings of 20N/mm² for sand-blasted steel and 13 N/mm² for rigid PVC were recorded.

The adhesive itself is also quite strong. Cured S 50 yellow has a pressure rating of 9 Mpa and a bend strength of 58 Mpa. Both are excellent results that indicate an adhesive capable of not only bonding but withstanding the rigours of demanding industrial environments.

Excellent Material Compatibility.

One of the reasons epoxy adhesives are so popular is that they work with a wide variety of materials. Easy-Mix S 50 is no different and boasts excellent versatility in the different types of surfaces and substrates it will work with. These include…

• Active and Passive Metals – Including Steel, Stainless Steel, Brass, Copper, Aluminium, Nickel, Zinc and Bronze.
• Many Types of Plastic – Including Fibreglass, Fibre Reinforced Grades, PVC, ABS, Nylon, Polycarbonate and more.
• Wood and Wood Products.
• Glass and Mirror Surfaces.
• Ceramics and Tiles.
• Stone and Brick.

Viscous and Self-Levelling Epoxy Glue.

Our Easy-Mix S 50 Yellow is a thick, viscous style of glue. It’s viscosity (once mixed) is listed as 8,500 mPas. This is getting up towards that of honey which usually has a viscosity of about 10,000 mPas. This thick nature makes Easy-Mix S 50 Yellow a great choice for bonding small items or bonding jobs that require high-precision application.

Weicon S-50 Epoxy Adhesive is also a self-levelling glue. This is important for those looking to use it to fill small cavities or as an epoxy encapsulant for leads, wiring or cables.

Very Fast Cure Time.

When it comes to two-part epoxies, oftentimes cure times can really drag out. Easy-Mix S 50 Yellow is different. Exact figures depend a lot on bonding conditions but, roughly speaking, you can expect 30% cure in around 30 minutes. 50% will take about an hour and it’s at that point that S 50 can bear mechanical loads. Full cure time is 24 hours.

This fast curing nature has led to Weicon Easy-Mix S 50 Yellow being chosen over and over again for manufacturing and construction work.

Easy to Use with No Complex Mixing.

The Weicon Easy-Mix Dosing System eradicates complex mixing and measuring and makes getting the right amount of glue, where you need it, simple.

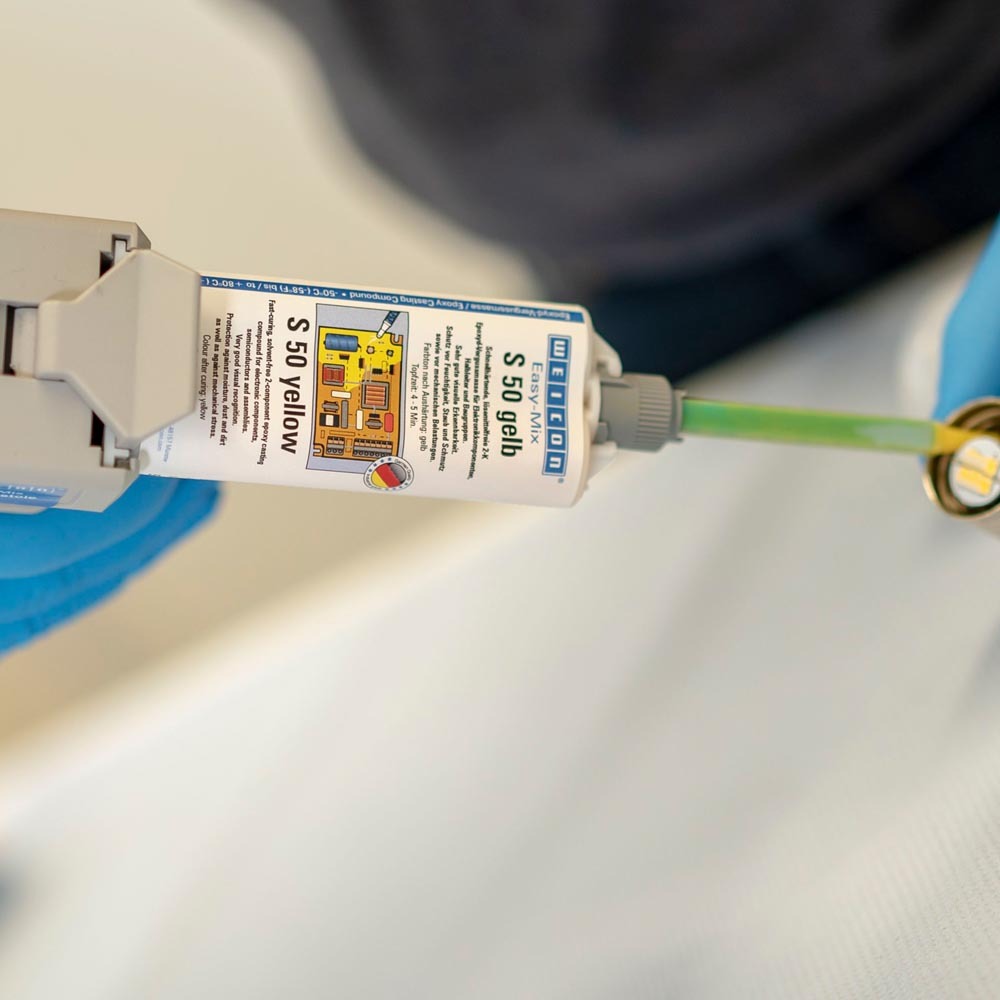

Simply slot the container of S 50 Epoxy into a compatible dispensing pistol (we suggest the Weicon D 50) and attach the Quadro Mixing Nozzle (one is included with each container). That’s it. When you pull the trigger the two parts that make up S 50 Epoxy Glue will be mixed as they travel along the nozzle so that, by the time they reach the surface, you have a single homogenous adhesive.

Spare mixing nozzles are also available, and the gun works with a variety of our adhesives, so you can mix and match depending on your requirements. For more information on the Easy-Mix System and to see how easy it is, check out the video included below.

Applications for S 50 Yellow Epoxy Adhesive

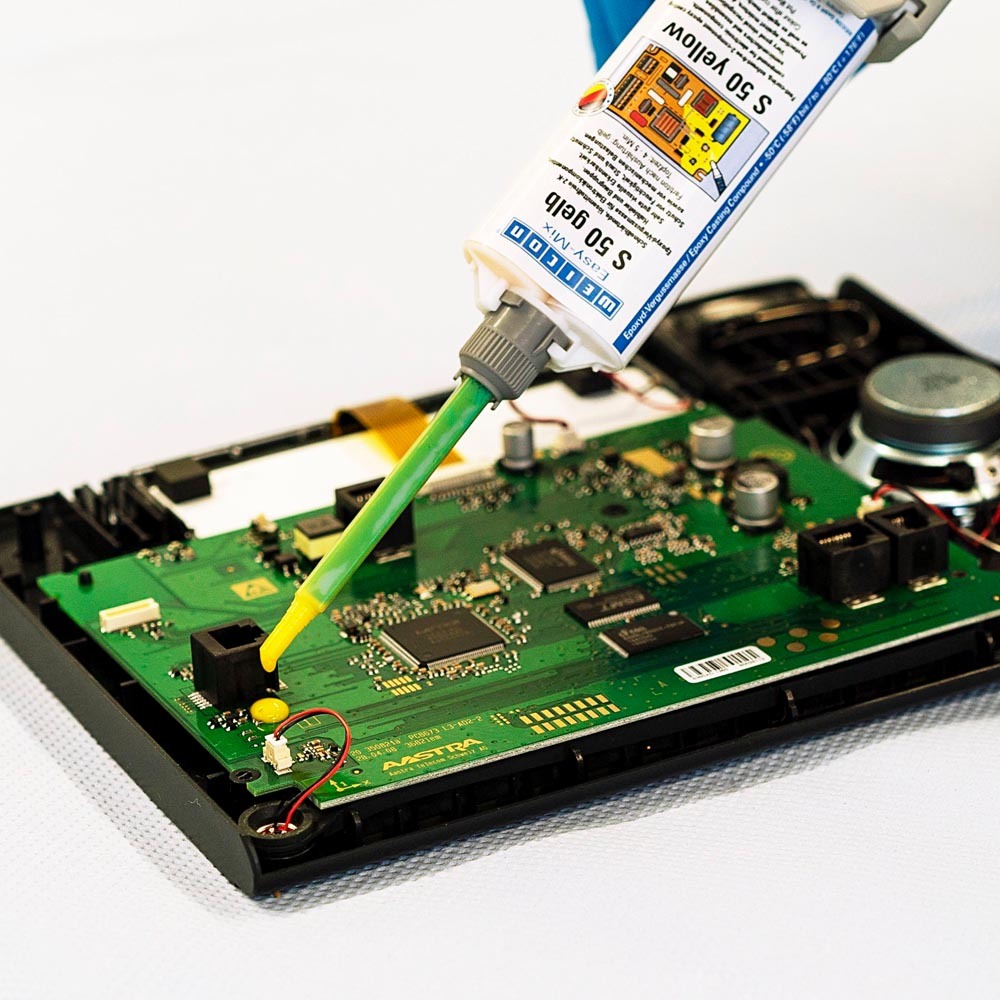

• Protecting electronic components.
• Sealing electronics to protect from moisture, dust, dirt and mechanical stressed.

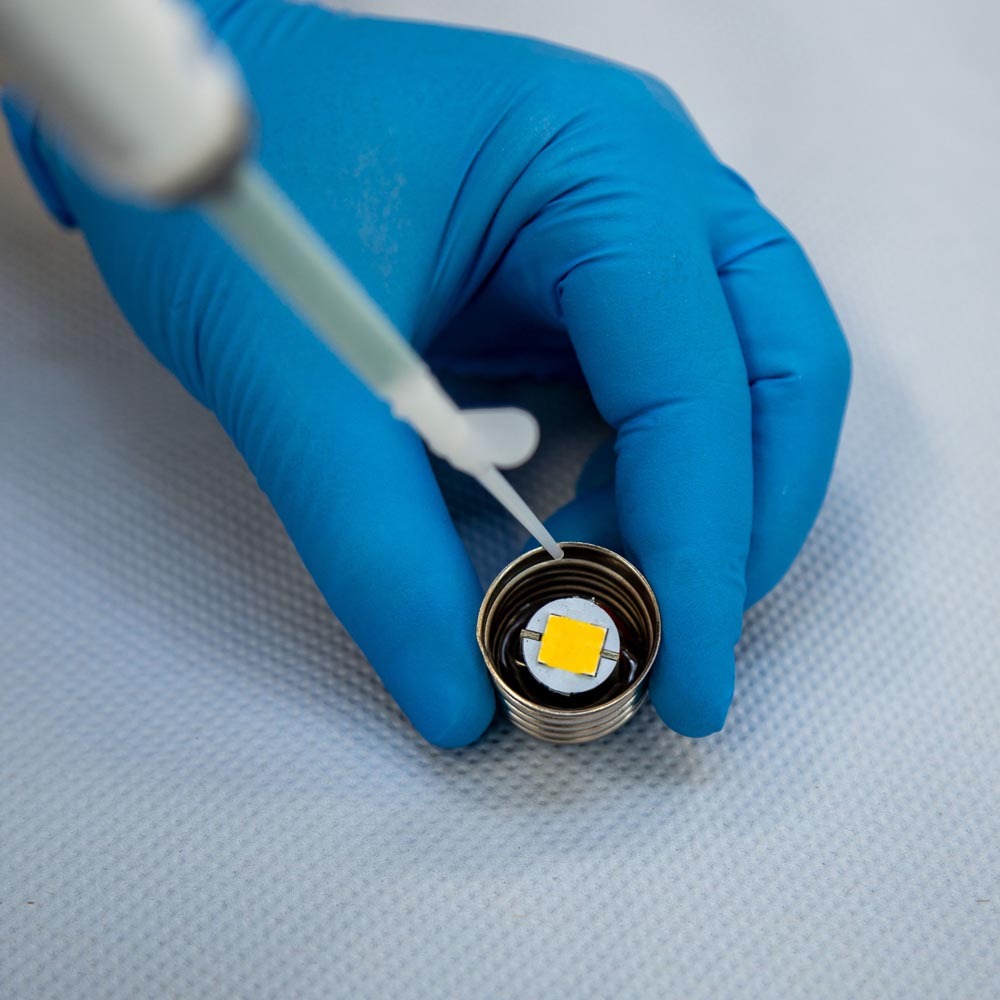

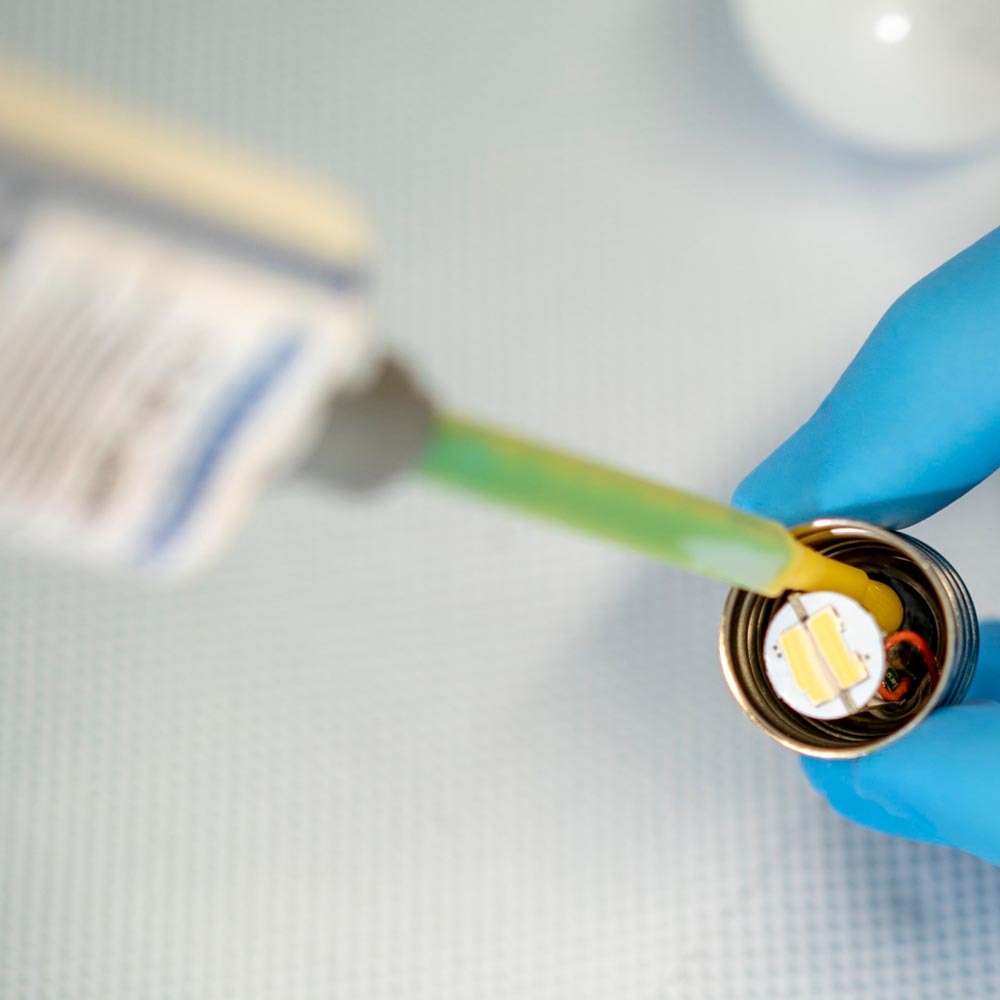

• Casting cable connections.
• Securing (and insulating) leads, wires and connectors for electric components, devices and motors.
• In the marine sector for boat construction and maintenance.
• In the transport sector for vehicle body construction and attachment fitting.
• For joining and securing ceramic and glass to vertical surfaces and walls.
• Bonding metal parts and sheets.
• Furniture making and repairs.
• In the hobby, craft and DIY sectors for all kinds of high strength bonding.
• For laminating sheets of fibreglass and other reinforced plastics.
• Attaching plastic or wood to metal.
