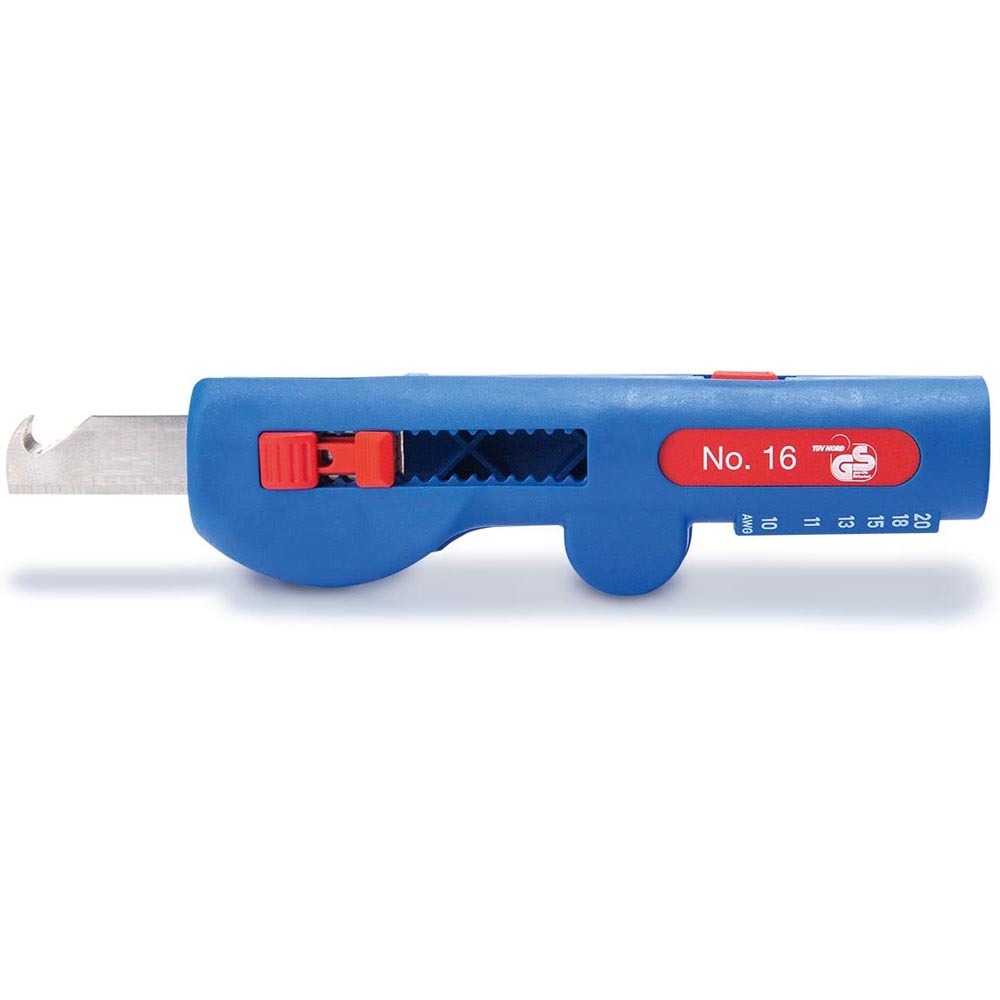

Quadro Cable Stripper No. 16

SKU: SWM000197B01V0001
MPN: 52000016
Availability: Available for Fast Dispatch.
$43.23
INC. GST
$39.30
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 6 - 11 and pay only $40.48 each
  • Fast and accurate stripping of 0.5mm² to 6mm² Cable.
  • Stripping and dismantling of all common round cables from 8mm to 13mm Ø.
  • Retractable hook blade that can be firmly locked into position.
  • Anti-Slip handle.
  • Optimised cable routing in the casing for precision longitudinal cutting.

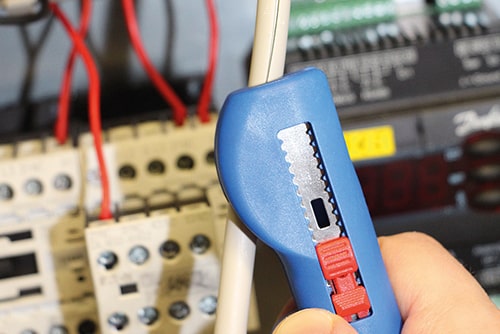

Longitudinal Cable Stripping and Cutting with Quadro Cable Stripper No. 16

Our Quadro Cable Stripper No. 16 is a high-performance cable and wire stripping tool with several features. This cable stripper and cutter can be used with a variety of different types of cables and combines precision wire stripping, longitudinal cutting into one tool.

Accurate, Automatic Cutting & Stripping of a Variety of Cable Sizes.

Our No. 16 Quadro Cable & Wire Stripper has two different parts to if for stripping cable. The first is the main longitudinal cutter and stripper.

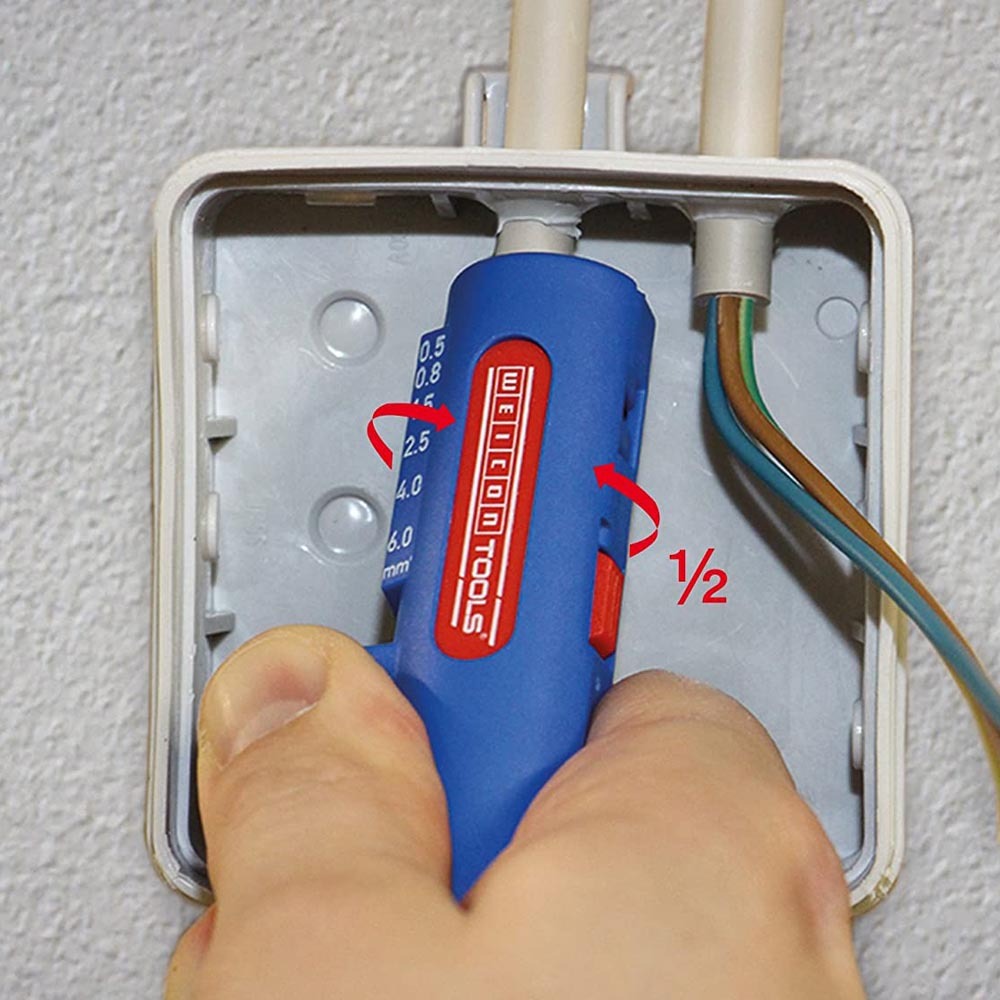

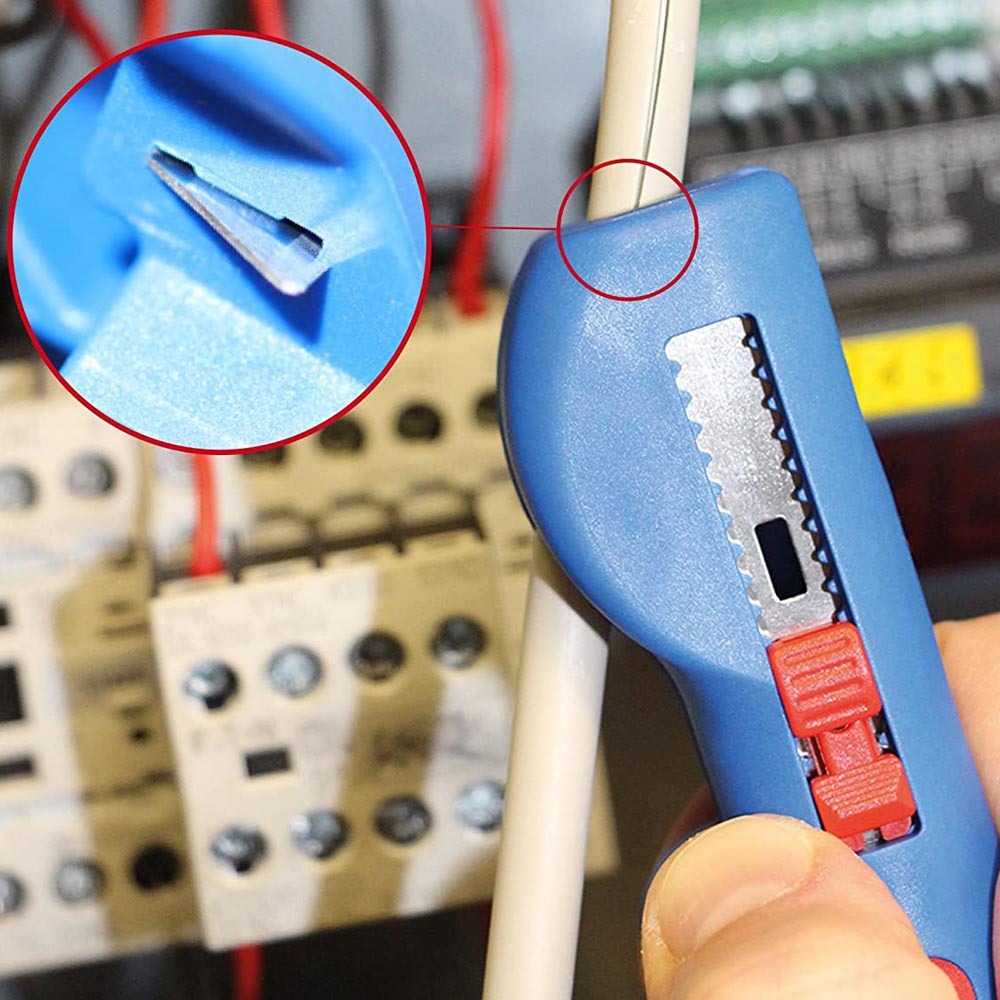

This part works with all common round cables between 8mm Ø and 13mm Ø. The tool adjusts to the cable size automatically and cuts through only the insulation leave the underlying conductor or cables intact. Our Quadro No. 16 has been designed for optimum cable routing which makes longitudinal cutting fast and simple. It can also be used for circular cutting with ease.

Precision Stripping of Smaller Cables and Wires.

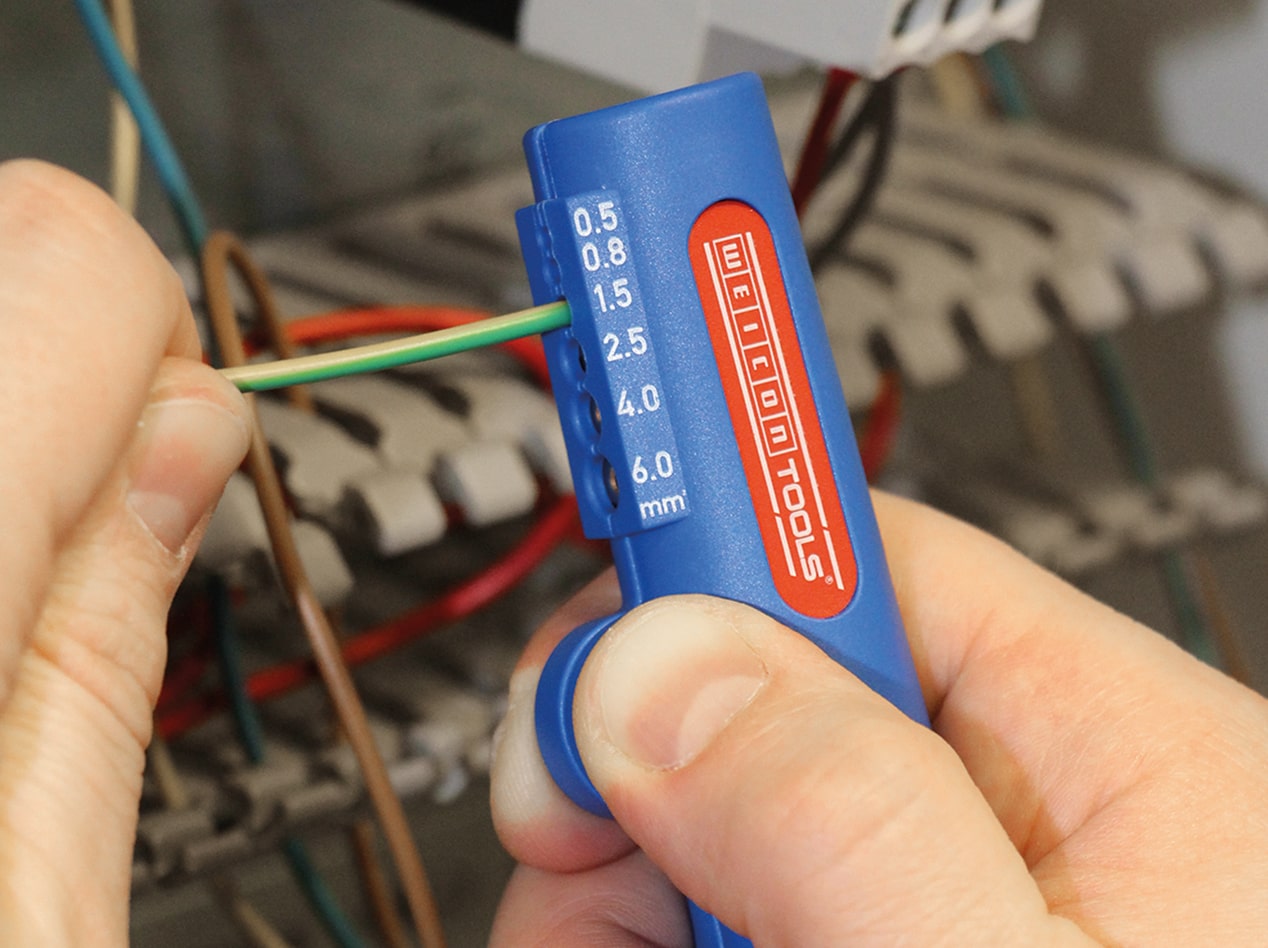

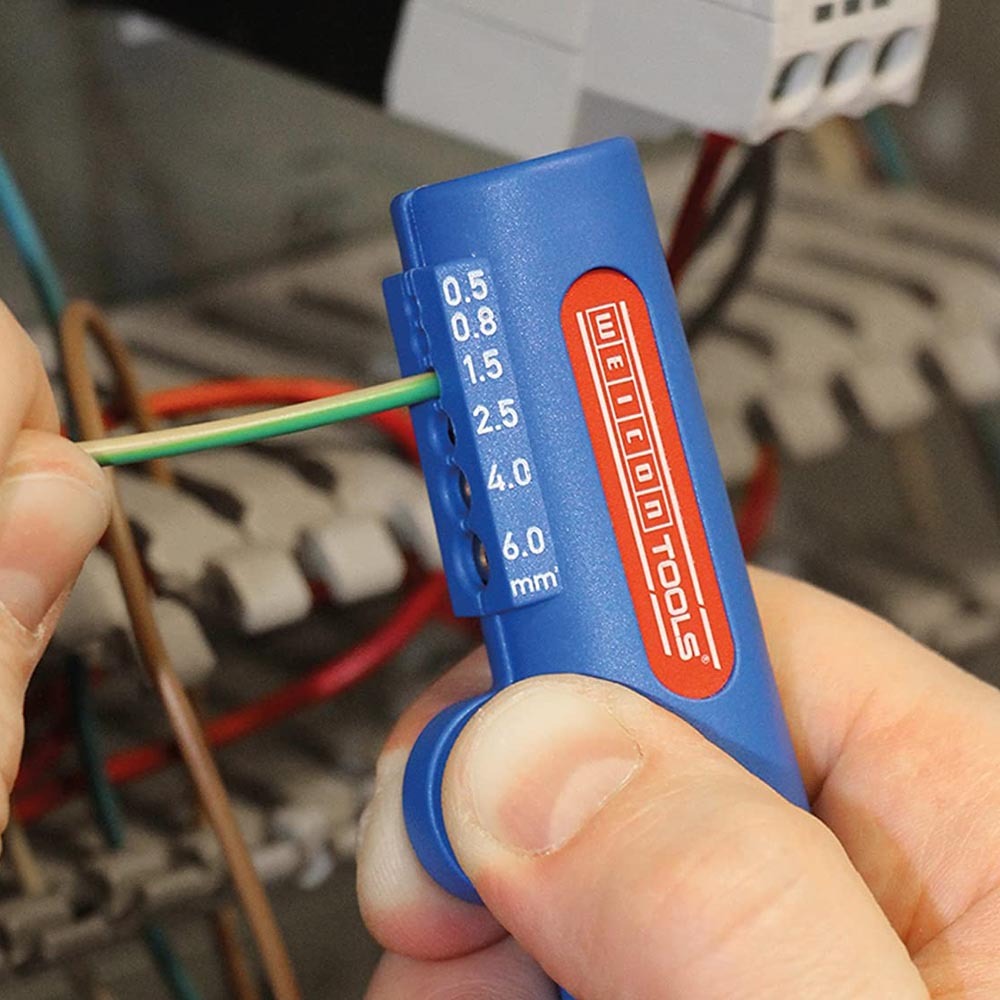

Precision Cable Stripping with Quadro Cable Stripper No. 16

After dismantling or stripping the outer insulation of a multi-core cable, oftentimes the next job involves stripping the individual wires. Our Quadro Cable Stripper handles this task as well.

Built into the casing are a series of precision stripping holes that are used for stripping all flexible and solid conductors with the following cross sections:

  • 0.5mm²
  • 0.75mm²
  • 1.5mm²
  • 2.5mm²
  • 4mm²
  • 6mm²

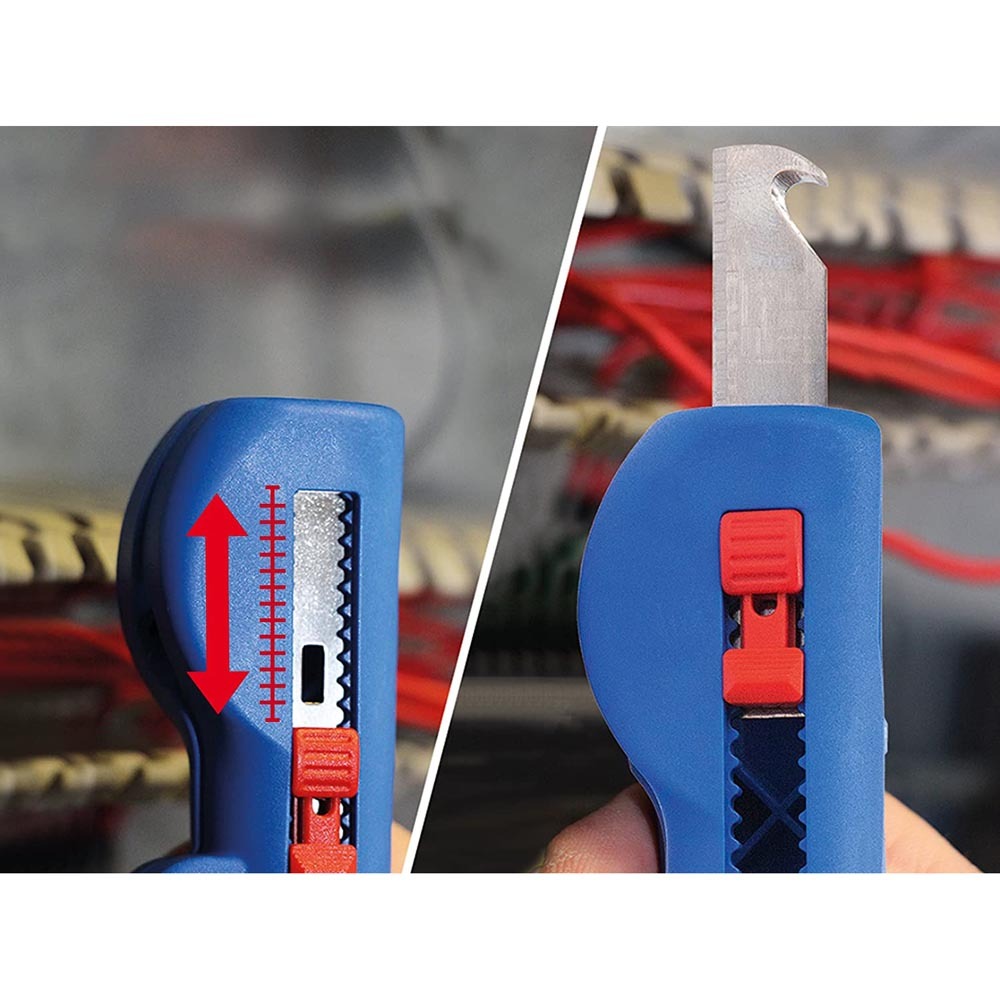

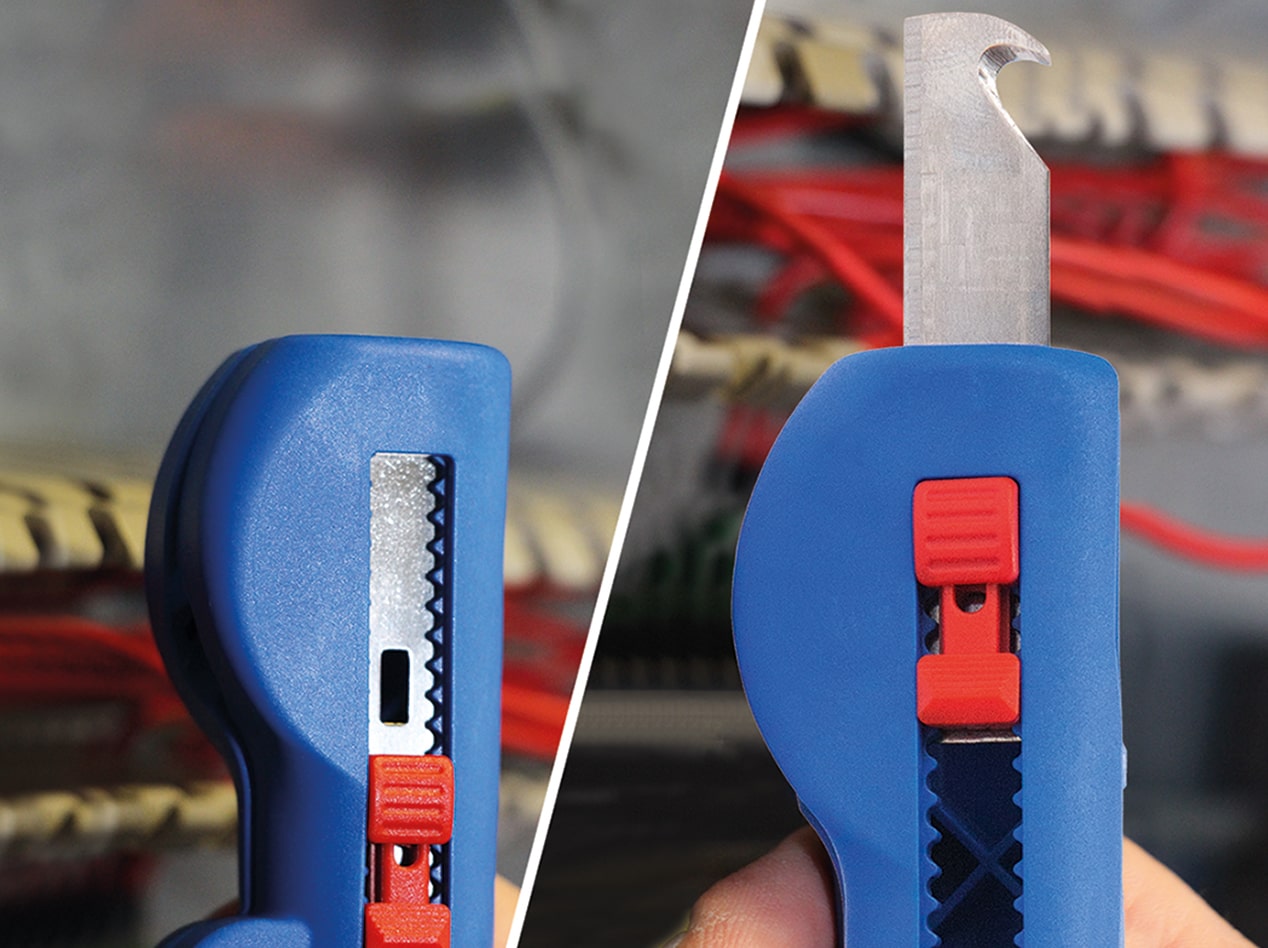

Retractable Hook Knife Blade on the Quadro Cable Stripper No. 16Retractable Hook Blade that can be Locked into Multiple Positions.

Built into the housing of the No. 16 Quadro Cable & Wire Stripper is a retractable hook blade. Adding to the overall versatility of this tool, the hook blade can be locked into multiple positions using the easy to adjust locking mechanism.

Like the rest of the blades on this tool, the hook knife blade is manufactured from high quality German steel and is very long lasting. When it does wear, it can be easily replaced as needed.

German-Engineered Cable Stripper made from Quality Materials.

Our No. 16 Quadro Cable Stripper is manufactured by Weicon in Germany. This tool, like the rest of the Weicon Cable Tool Range, is manufactured using premium-grade materials and is designed to withstand the rigours of professional use.

The outer casing is produced from high strength, fibreglass reinforced polyamide while the knife blades are all made from steel from Solingen. All our Cable Tools are manufactured in Germany and are subjected to extensive testing to ensure quality and safety. As a final check, the Quadro No. 16 has also been safety tested and approved by TUV Nord.

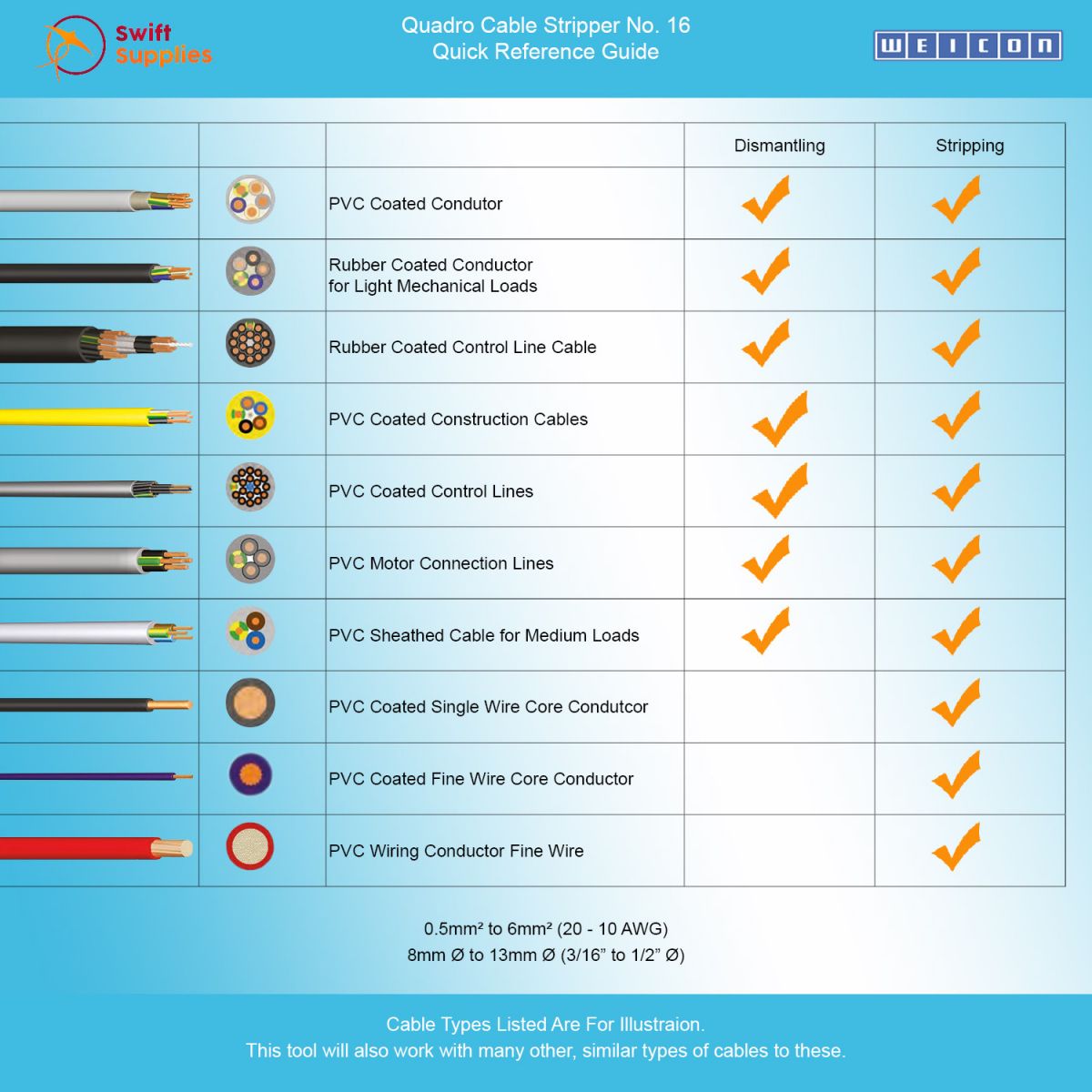

Quadro Cable Stripper No. 16 Cable Compatability Chart.

The image below provides a brief overview of the (many) different sizes and types of cables and wires that can be stripped or dismantled with this tool. The image is designed as a quick guide only, this tool can handle many other similarly sized and insulated cables that are no pictured (click the image to expand).

Quadro Cable Stripper No. 16 Quick Reference and Cable Compatability Guide

Cable Type Flexible and Solid Conductors with PVC Insulation
Field of Use Cables with an external diameter between 8mm & 13mm
Stripping of smaller cables, 0.5mm² to 6mm².
Inner Blade Glued in place, not replaceable.
Additional Features / Benefits Retractable Hook Blade can be locked in any position.
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 125mm
Weight 53gm
Accessories Replacement Hook Blade, 52953040



SKU SWM000197B01V0001
Model # 52000016
Brand Weicon
