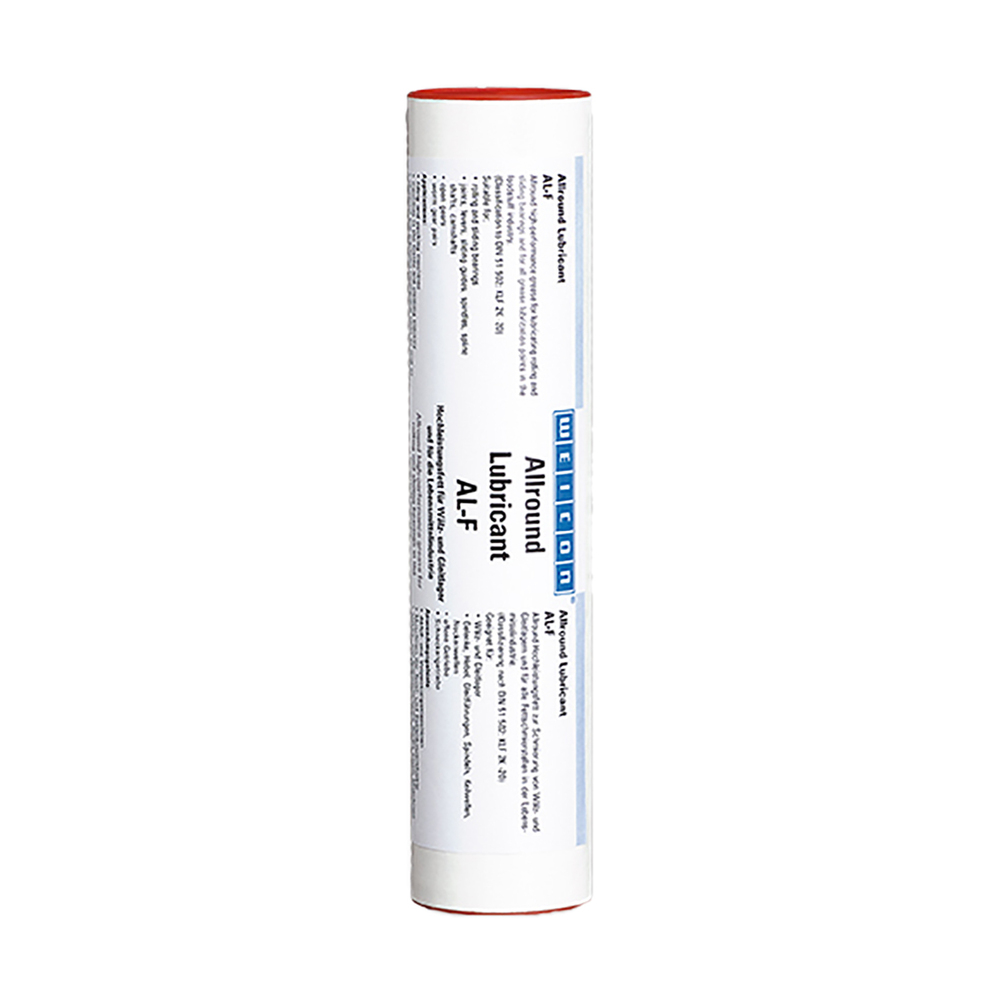

AL-F Food Grade Grease - 400gm Cartridge

SKU: SWM000384B01V0002
MPN: 26550040
Availability: Available for Fast Dispatch.
$32.46
INC. GST
$29.51
EX. GST
Container Size

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 10 and pay only $31.12 each
Buy 11 or above and pay only $29.89 each
  • High Performance Lubricating Grease.
  • Designed especially for use in the food industry with NSF H2 Certification.
  • Versatile grease suitable for lubricating many different types of equipment and parts.

Our AL-F Food Grade Grease is a high performance, all-round lubricant widely used in the food & beverage industries. This versatile grease has been certified in accordance with NSF-H 2, LFGB Section 31 and Section 5.

Al-F is white in colour and able to be used in applications between -30°C and +120°C. More information on its capabilities and performance characteristics is included below:

Industrial Grade Lubricant for Reduced Friction.

AL-F Lubricating Grease has been designed to meet the demands of industry. It is a long-lasting grease that significantly reduces friction and wear.

This quality lubricant has been tested in accordance with numerous international standards, a summary of its performance results is included in the following table.

Abbreviation (DIN 51502) KLF 2K -30
Consistency Assignment (DIN 51818) NLGI-Class 2
Composition Lithium Soap / Mineral Oil
VKA-TEST (DIN 51350) Welding Load 3,600 N
VKA-TEST (DIN 51350) Goods Load 3,400 N
VKA-TEST (DIN 51350)
Spherical Cap Value (1Min/1000N)
0.8mm
Speed Identifying Value (ka . n . dm) 350,000
Worked Penetration (DIN ISO 2137) 280 + 15 1/10mm
Water Resistance (DIN 51807) 1 – 90
Kinematic Viscosity (DIN 51562)
at +40°C
100mm²/s
Kinematic Viscosity (DIN 51562)
at +100°C
9mm²/s

Approved for Use in the Food & Beverage Sections for Lubrication Applications.

Weicon All-Round Lubricant AL-F conforms to the requirements of NSF-H 2, LFGB Section 31 and Section 5.

Suitable for Use with Numerous Equipment Types.

Al-F Food Grade Grease can be used on many different types of bearings, joints, levers, guides, spindles, shafts, gears and cables. The tables below provide a summary of the material and part types known to be compatible with this industrial grease.

Rolling Bearings ?
Sliding Bearings ?
Chains
Joints ?
Levers ?
Sliding Guides ?
Linear Guide Systems
Spindles ?
Spline Shafts ?
Camshafts ?
Springs
Open Gears ?
Worm Gears ?
Cables

Information on this industrial grease's compatability with most common sealing rubbers and plastics is also available on the specifications tab.

Durable with Long Re-Greasing Intervals.

Weicon AL-F Grease is very long lasting. It adheres well to most material types and has good pressure resistance. This results in long lasting lubricating performance and extended re-greasing periods.

Technical Specifications for AL-F Grease.

Abbreviation (DIN 51502) KLF 2K -30
Consistency Assignment (DIN 51818) NLGI-Class 2
Composition Lithium Soap / Mineral Oil
Colour White
Density at +20°C (+68°F) (DIN 51757) 0.9 g/cm³
VKA-TEST (DIN 51350) Welding Load 3,600 N
VKA-TEST (DIN 51350) Goods Load 3,400 N
VKA-TEST (DIN 51350)
Spherical Cap Value (1Min/1000N)
0.8mm
Speed Identifying Value (ka . n . dm) 350,000
Worked Penetration (DIN ISO 2137) 280 +15 1/10 mm
Water Resistance (DIN 51807) 1 - 90
Drop Point (IP 396) > 190°C
Kinematic Viscosity (DIN 51562)
at +40°C
100mm²/s
Kinematic Viscosity (DIN 51562)
at +100°C
9mm²/s
EMCOR Corrosion Test (DIN 51 802): 0 / 0
Temperature Resistance -30°C to +120°C
Storage Stability 24 Months Minimum
Conforms to... NSF-H2, LMBG Section 31 and Section 5

Application Type Compatability for AL-F Grease.

Rolling Bearings ?
Sliding Bearings ?
Chains
Joints ?
Levers ?
Sliding Guides ?
Linear Guide Systems
Spindles ?
Spline Shafts ?
Camshafts ?
Springs
Open Gears ?
Worm Gears ?
Cables

AL-F Food Grade Grease Compatability with Rubber Sealing Materials.

ACM – Acrylate Rubber ++
CR – Chloroprene Rubber +
CSM – Chlorosulfonated PE Rubber ++
EPDM – Ethylene Propylene Diene Rubber 0
FKM – Fluorocaoutchoc / Viton ++
NBR – Nitrile Butadiene Rubber ++
NR – Natural Rubber 0
SBR – Styrene Butadiene Rubber 0
SQM/MVQ – Silicone Rubber ++

AL-F Grease Compatability with Plastic, Polymer-Based Sealing Materials.

ABS ++
CA – Cellulose Acetate ++
EPS – Expanded Polystyrene ++
PA – Polyamide ++
PC – Polycarbonate 0
PE-UHMW – Ultra High Molecular Weight
Polyethylene (UHMWPE)
++
PE-LD Polyethylene with Low Density (LDPE) +
PET – Polyethyleneterephtalate ++
POM – Polyoxylmethylene ++
PP – Polypropylene ++
PPO – Polyphenylene Oxide ++
PS – Polystyrene +
PTFE – Polytetrafluoroethylene ++
PUR – Polyurethane +
PVC – Polyvinylchloride ++
TPE – Thermoplastic Elastomers 0

Compatibility Key Information.

++ = Compatible.
+ = Compatible to a limited extent.
0 = Not Compatible.

The stated compatibility and resistance levels are based on laboratory tests and literature notices. A guarantee cannot be provided due the large number of raw materials used on the one hand the complex chemical and morphological structure of the polymers on the other. In critical application cases we recommend that you carry out tests and/or consult with the Weicon application technology department.

SKU SWM000384B01
Model # 26550000
Brand Weicon
