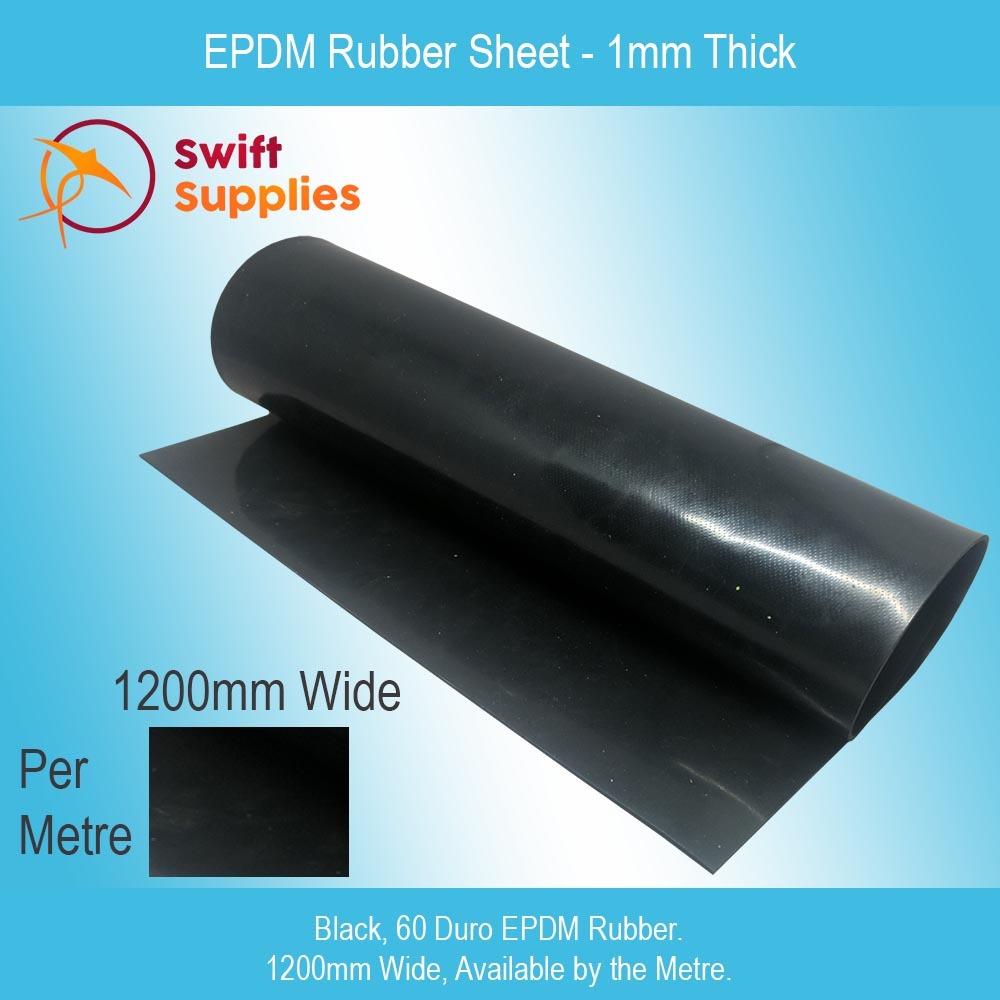

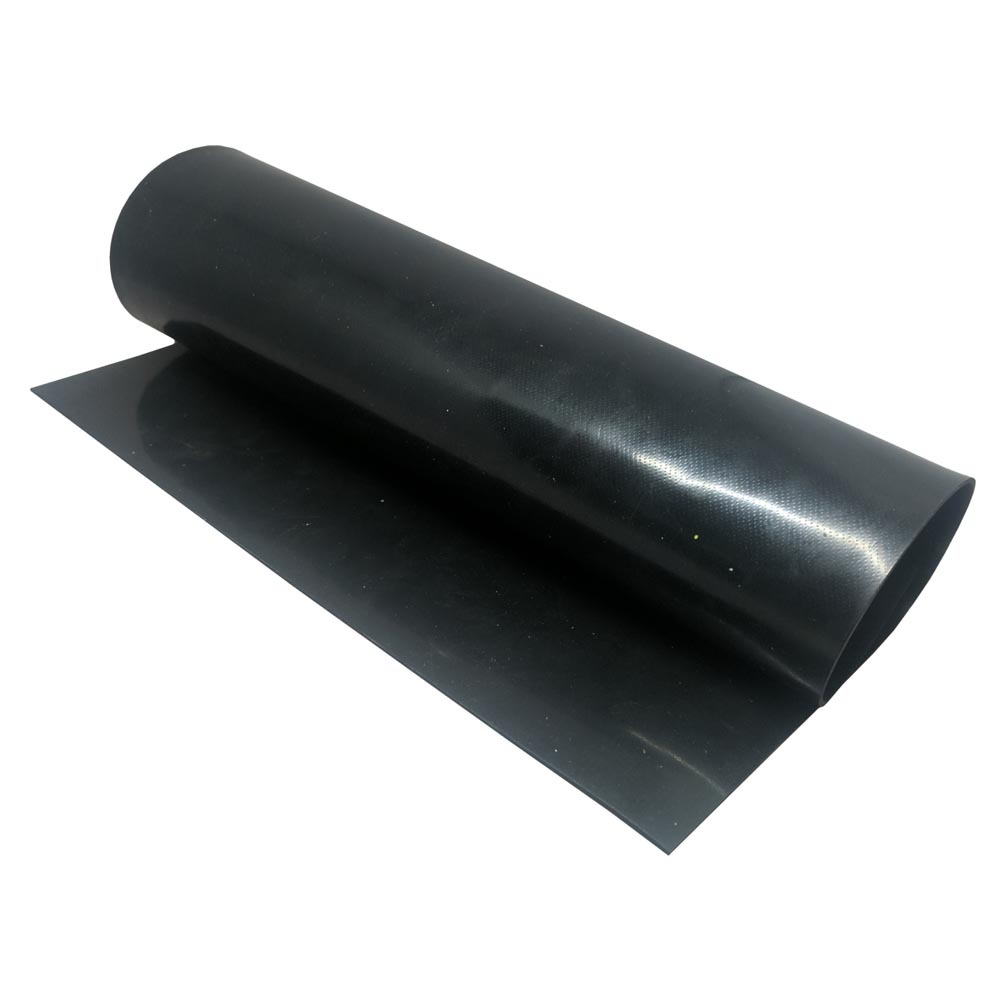

EPDM Rubber Sheet 1mm Thick x 1200mm Wide (Black, 60 Duro, Per Mtr)

SKU: SWM000184B01V0001
Availability: Ships in 1-2 W/Days
$30.81
INC. GST
$28.01
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $28.06 each
Buy 10 - 19 and pay only $25.72 each
Buy 20 or above and pay only $23.16 each
  • Good temperature resistance (120°C) and resistance to ozone and UV.
  • Excellent chemical resistance to most acids and alkalis.
  • Very good physical properties and sealing performance.

Our EPDM Rubber Sheet (Black, 60 Duro) is an industrial grade EPDM rubber widely used for sealing, lining, insulating and protecting applications. This type of rubber offers several advantages including good chemical resistance, excellent UV resistance and physical strength.

EPDM Rubber is often used for making gaskets, seals, washers and lining strips for chemicals. In these applications, its ability to withstand most acids and alkalis is of benefit. It also possesses very good resistance to hot water and steam and can handle temperatures between -30°C and +120°C.

This industrial grade EPDM Rubber is sulphur cured and black in colour. It has very good resistance to UV, sunlight and ozone which makes it ideal for long term outdoor environments. It is also suitable for long term exposure to aquatic applications and will not deteriorate in fresh or saltwater.

One area where EPDM struggles is with hydrocarbons, oils and fuels. It is attacked by these fluids. For sealing these, we usually suggest Nitrile Rubber.

Typical applications for our industrial grade EPDM Rubber Sheet include:

  • Making flange gaskets for pipes and tanks.
  • Making washers, gaskets and seals for chemical applications.
  • Insulating strips and isolation barriers.
  • As a heat resistant skirting rubber.
  • Lining of pipes and tanks.
  • Underwater applications.
  • Protecting steel or other surfaces.
  • Weatherproof flashing and lining work.
Colour Black
Insertion None
Polymer EPDM
Hardness 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature -30°C to +120°C
Elongation at Break 400%
Tear Strength 45 N / mm
Specific Gravity 1.55
Tensile Strength 25kg/cm
Potable Water No
Food Grade No
Abrasion Resistance High
Hydrocarbon and Fuel Resistance Low
Tearing Resistance High
UV / Sunllight Resistance High

For more technical information please see the Technical Data Sheet for our EPDM Rubber located on the media tab.

SKU SWM000184B01
Brand Gaskaseal

Will you supply my order in one continuous length or multiple lengths?

We’ll always supply as long a roll as possible to give you maximum versatility (nothing worse than being just a little too short). Maximum roll length for all thicknesses listed here is 10 metres so if you ordered 8 of one size, it would be supplied in a single roll.
