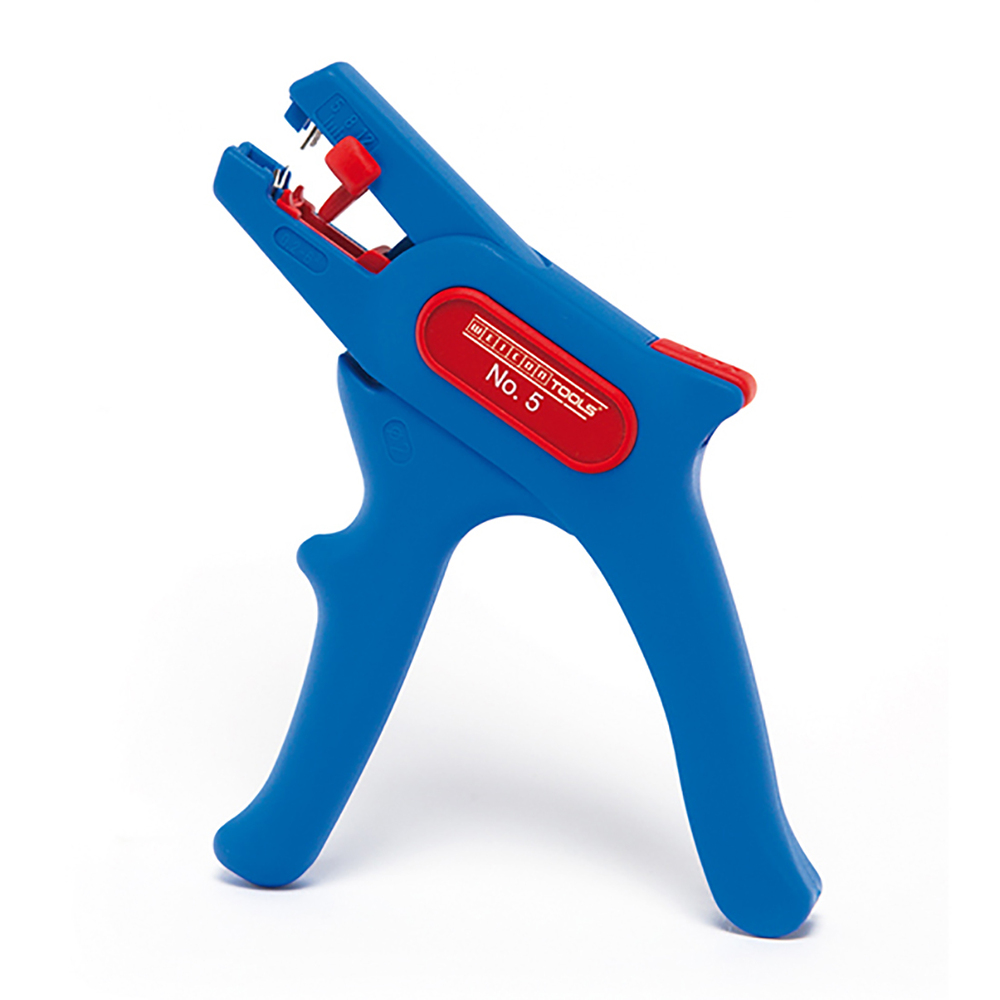

Automatic Wire Stripper No. 5

SKU:
SWM000174B01V0001
MPN:
51000005
Availability:
Available for Fast Dispatch.

Bulk discount rates

All Bulk Prices Below Are Quoted Including GST.

Buy 3 - 5 and pay only $37.59 each
Buy 6 or above and pay only $36.32 each
  • Info Image for our Automatic Wire Stripper No. 5; Automatically adjusting cable & wire stripper.
  • An automatic wire stripper that works with cables between 0.2mm² and 6mm². Our No. 5 is fast, simple and easy to use. Made in Germany from premium materials, this stripper can be adjusted to bare different lengths of conductor.

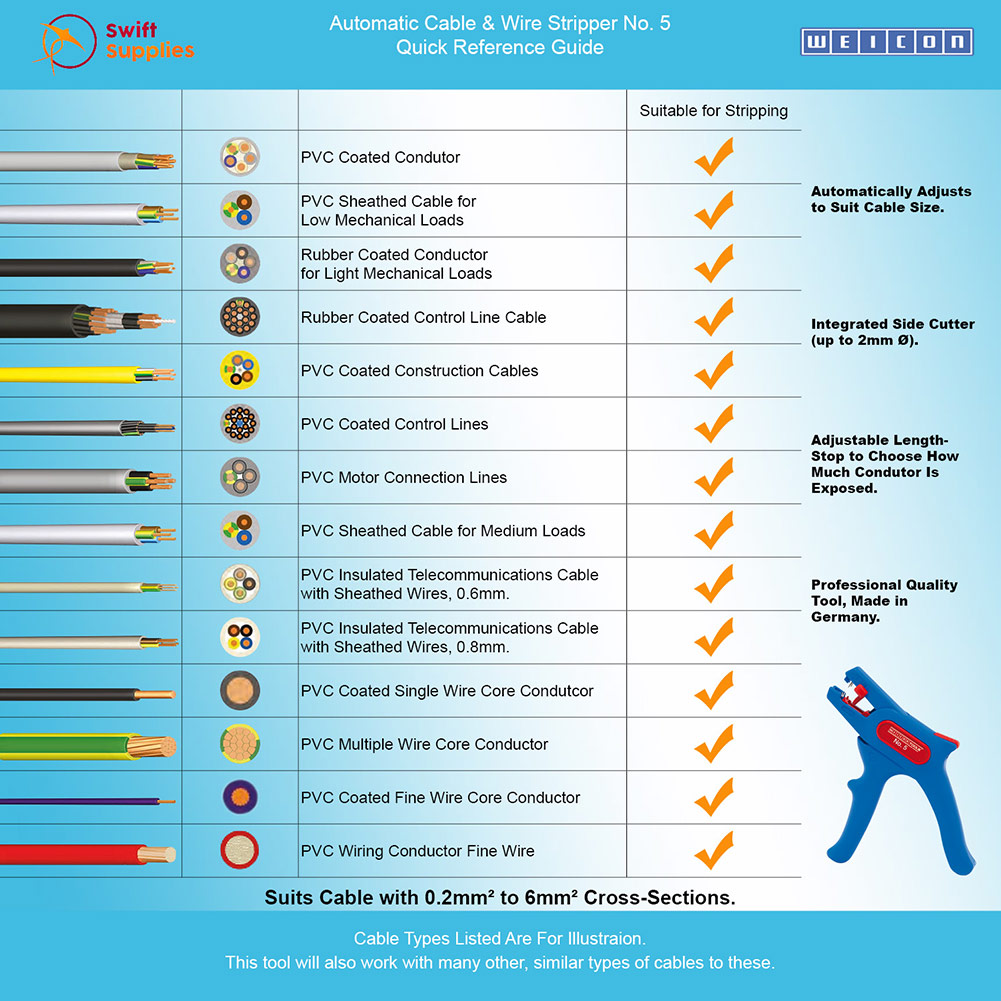

  • Automatic Wire Stripper No. 5 Cable & Wire Compatability Guide

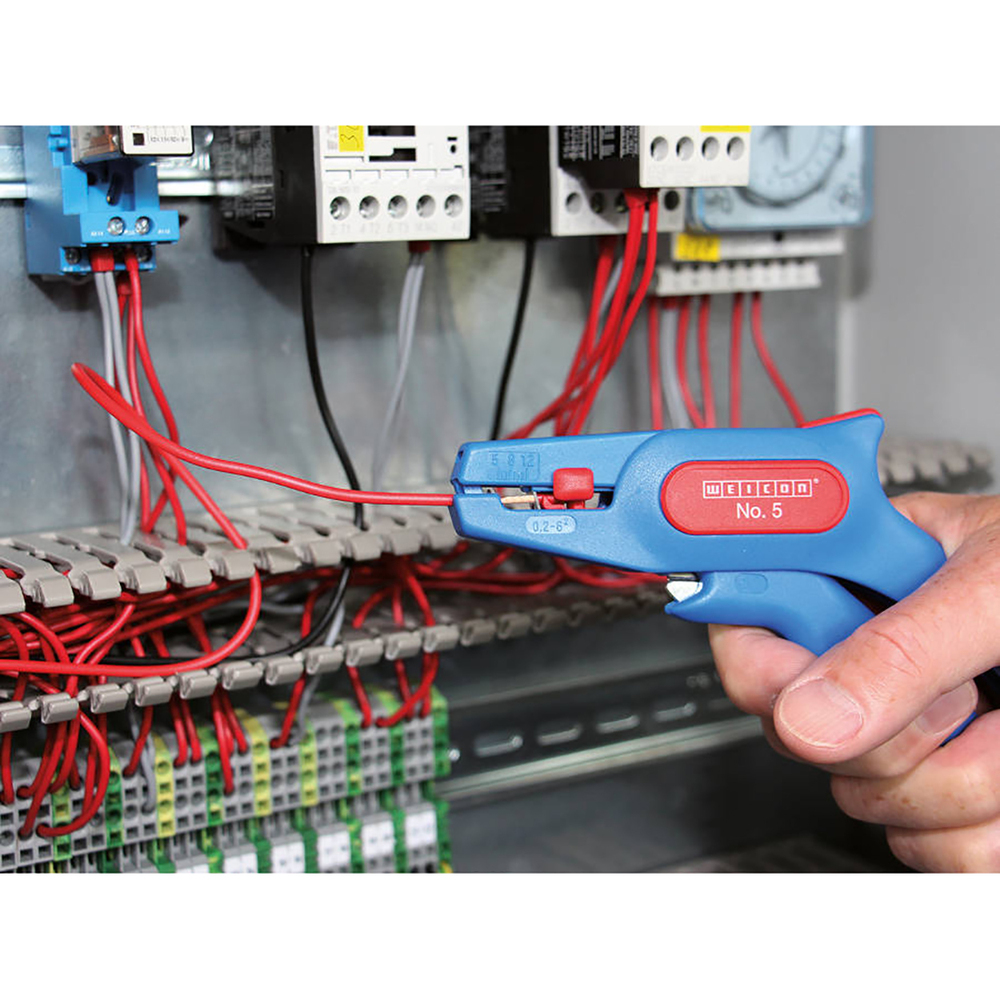

  • Cable being stripped with our Automatic Wire Stripper No. 5

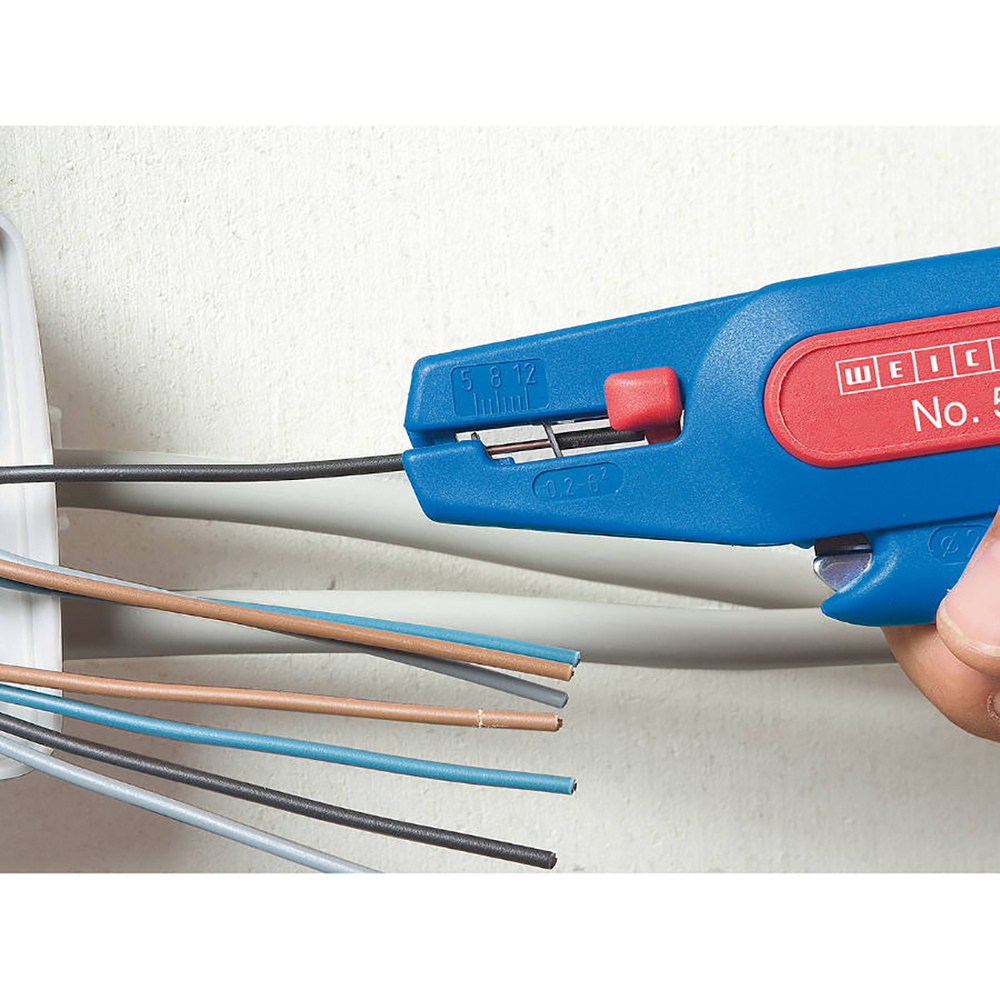

  • Our Automatic Wire Stripper No. 5 being used to strip back the insulation from a cable

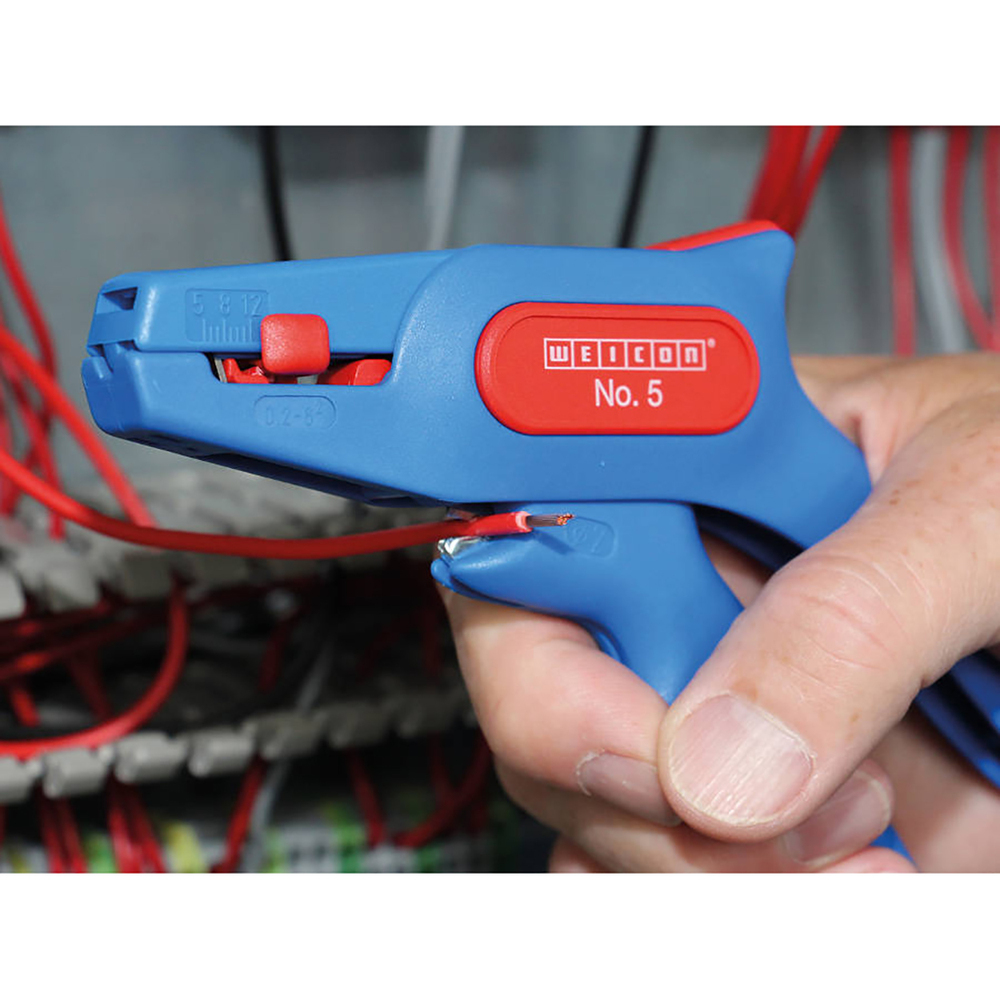

  • The integrated cable cutter on our Automatic Wire Stripper No. 5

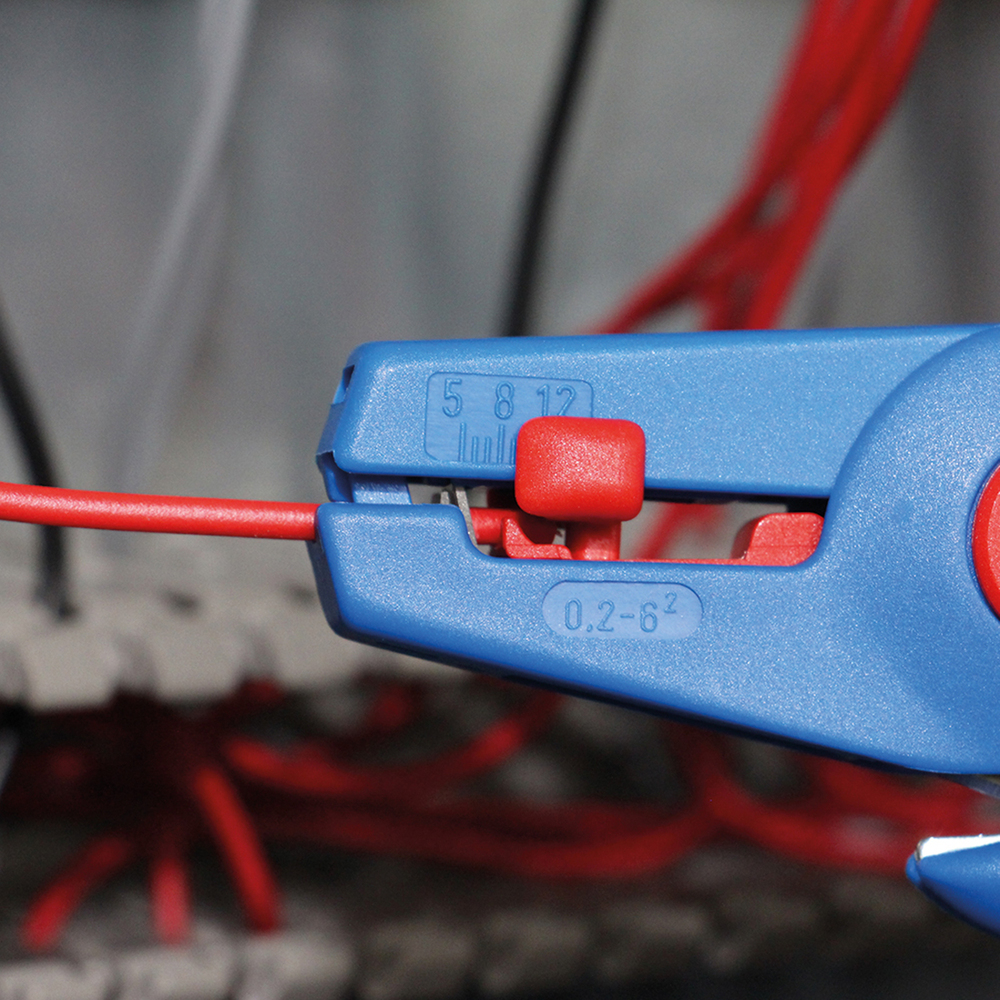

  • Adjustable Length Stop on our Automatic Cable Stripper Number 5
$39.23
Inc. GST
$35.66
Ex. GST
Frequently bought together:

Description

  • Automatically strips back the insulation from any cable or wire between 0.2mm² and 6mm².
  • Can be adjusted to strip back different amounts between 5mm and 12mm.
  • Integrated, easily accessed side cutter in the handle makes cutting cables up to 2mm Ø easy.
  • Automatic wire stripper made in Germany from premium grade materials.
  • Does not damage conductors and does not leave behind "witness marks" on the insulation.

Our Automatic Wire Stripper No. 5 is a fast, incredibly effective and easy to use tool. It strips back the insulation off any cable between 0.2mm² and 6mm² cross-section (24 – 10 AWG) and doesn’t need to be calibrated beforehand. It automatically (hence the name) adjusts to the cable you’re working with and will strip only the insulation, leaving the conductor perfectly intact.

Manufactured by Weicon in Germany, the Automatic Wire Stripper No. 5 is ideal for electricians, contractors, DIYers, hobbyists and anyone else working with wires and cables repeatedly. It can be adjusted so that it will strip back between 5mm and 12mm of insulation from the cable end which makes it perfect for all kinds of cable stripping work.

In the handle of the No. 5 Wire Stripper, you’ll find the integrated cutter. This can handle cables up to 2mm in diameter and is incredibly handy for cutting a cable to length before you strip it. It also features a position lock which lets you safely keep this tool in your pocket without any of the blades being exposed.

Our Automatic Wire Stripper No. 5 is manufactured from hardened, fibreglass reinforced polyamide and uses steel blades from Solingen, a German town known for making impeccable steel. The blades can be replaced when needed.

Dowloands & Resources

Automatic Wire Stripper No. 5 Specifications.

Cable Type Fine Wired and Solid Conductors with PVC Insulation
Field of Use 0.2mm² to 6mm²
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 2mm Ø Cable
Can be locked in the closed position to save space.
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 165mm
Weight 105gm
Accessories Replacement Blade Set. Item No. 51100002

No. 5 Cable Stripper Compatability Info.

This cable stripping tool is able to effectively strip a very large range of cable types and sizes. The chart below provides a brief overview of some of the more common types it can handle (click to expand). It's not a complete list though, this tool will also be able to precisely strip and dismantle many other cable types of a similar size and sheath.
