Cable Stripper No. S 4 - 28 Multi

SKU:
SWM000193B01V0001
MPN:
50057328
Availability:
Available for Fast Dispatch.

Bulk discount rates

All Bulk Prices Below Are Quoted Including GST.

Buy 3 - 5 and pay only $35.64 each
Buy 6 - 11 and pay only $33.44 each
Buy 12 or above and pay only $31.78 each
  • Info Image for our Cable Stripper No. S 4 - 28 Multi; Versatile Cable and Wire Stripping Tool.
  • A professional quality cable stripping tool that can be used with a large range of cable sizes. Automatic conversion from circular to longitudinal cutting with an integrated wire stripper in the handle.
  • Cable Stripper No. S 4 - 28 Multi Quick Reference Guide
  • Cable Stripper No. S 4 - 28 Multi Adjustable Blade Depth

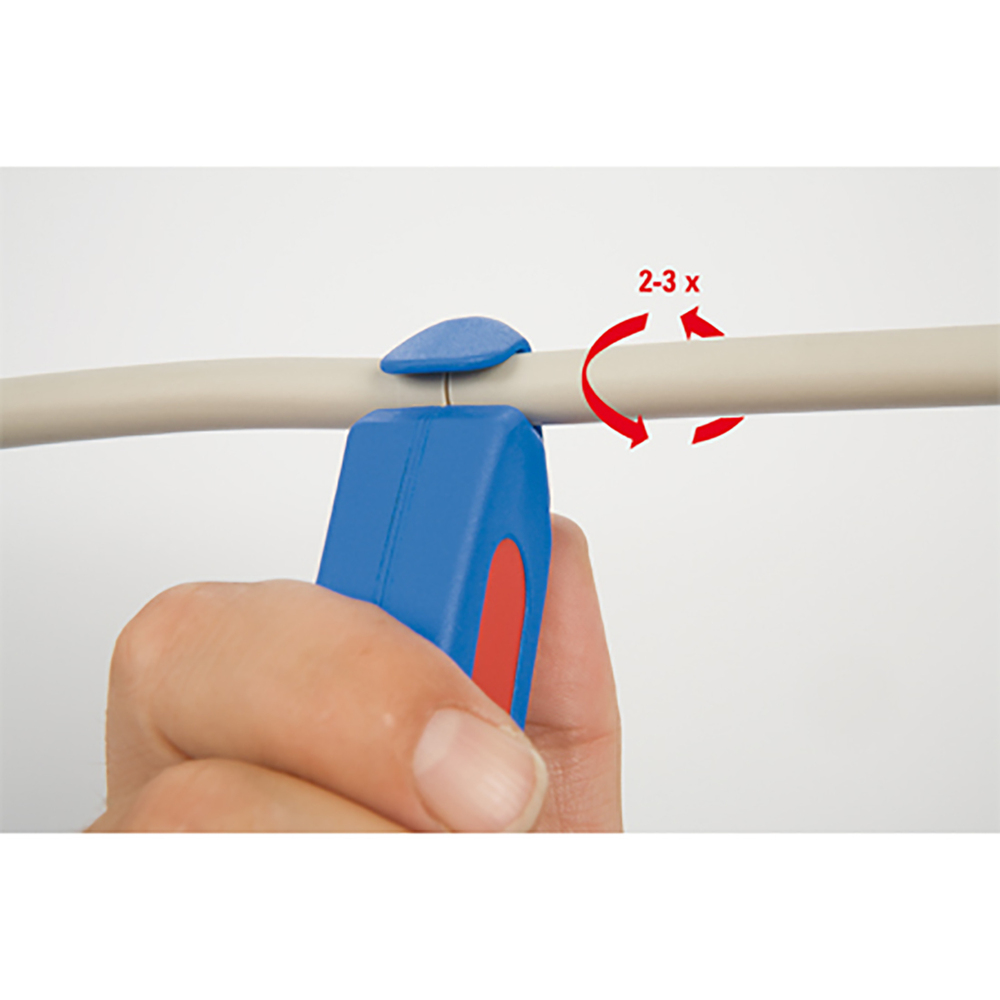

  • Cable Stripper No. S 4 - 28 Multi, Around the Cable

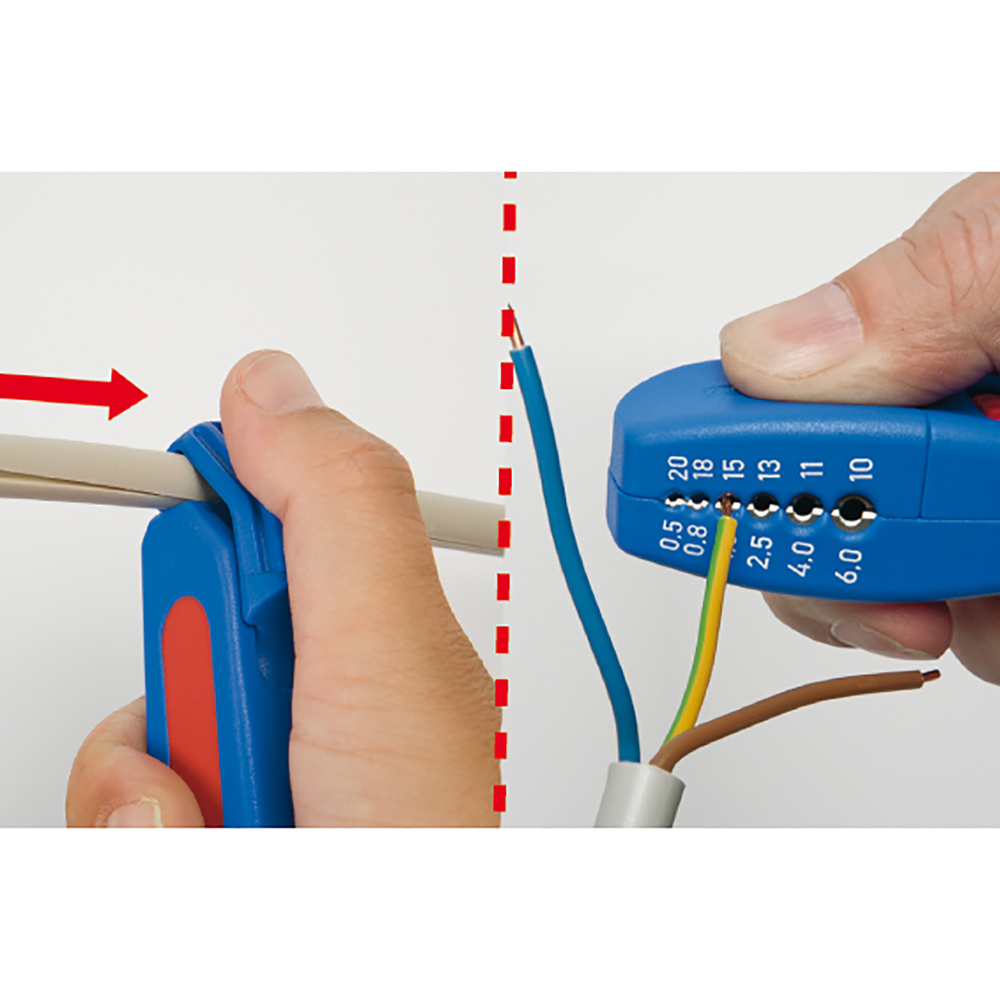

  • Cable Stripper No. S 4 - 28 Multi, Stripping Actions

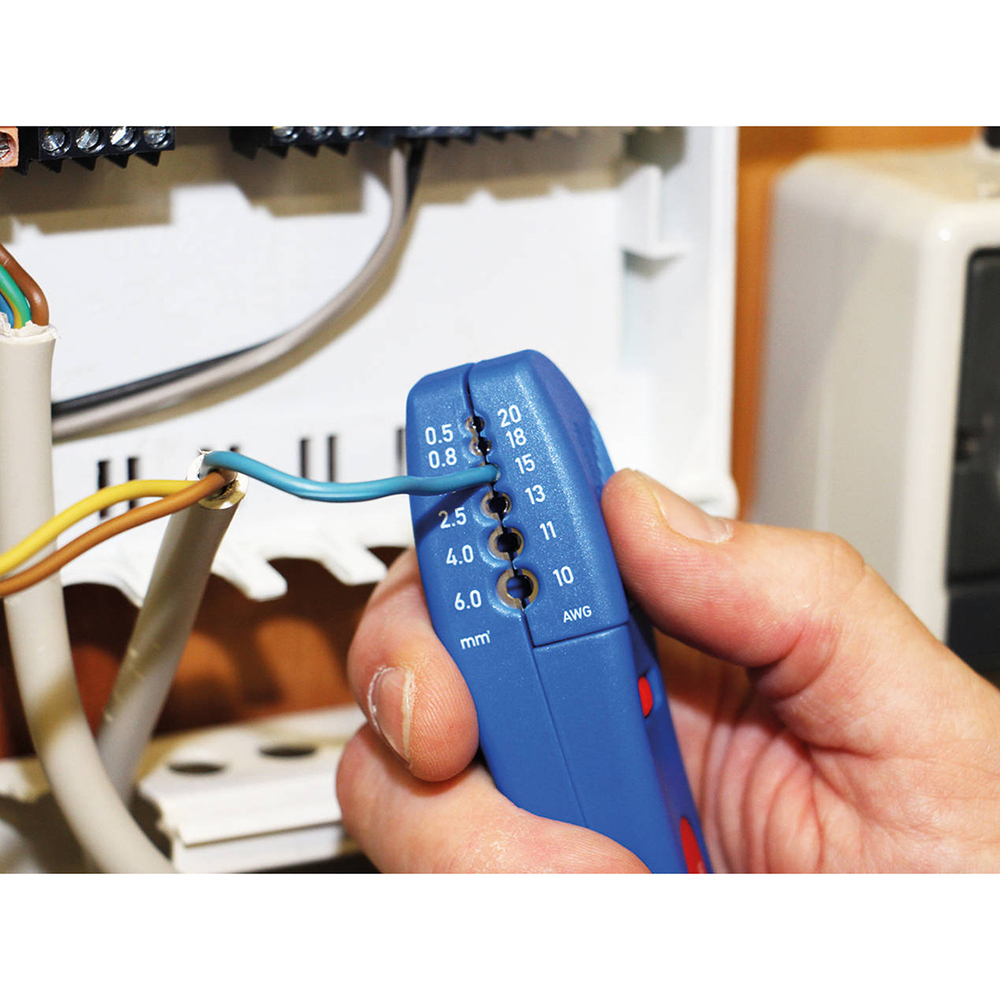

  • Small cable and wire stripper in the handle of our Cable Stripper No. S 4 - 28 Multi

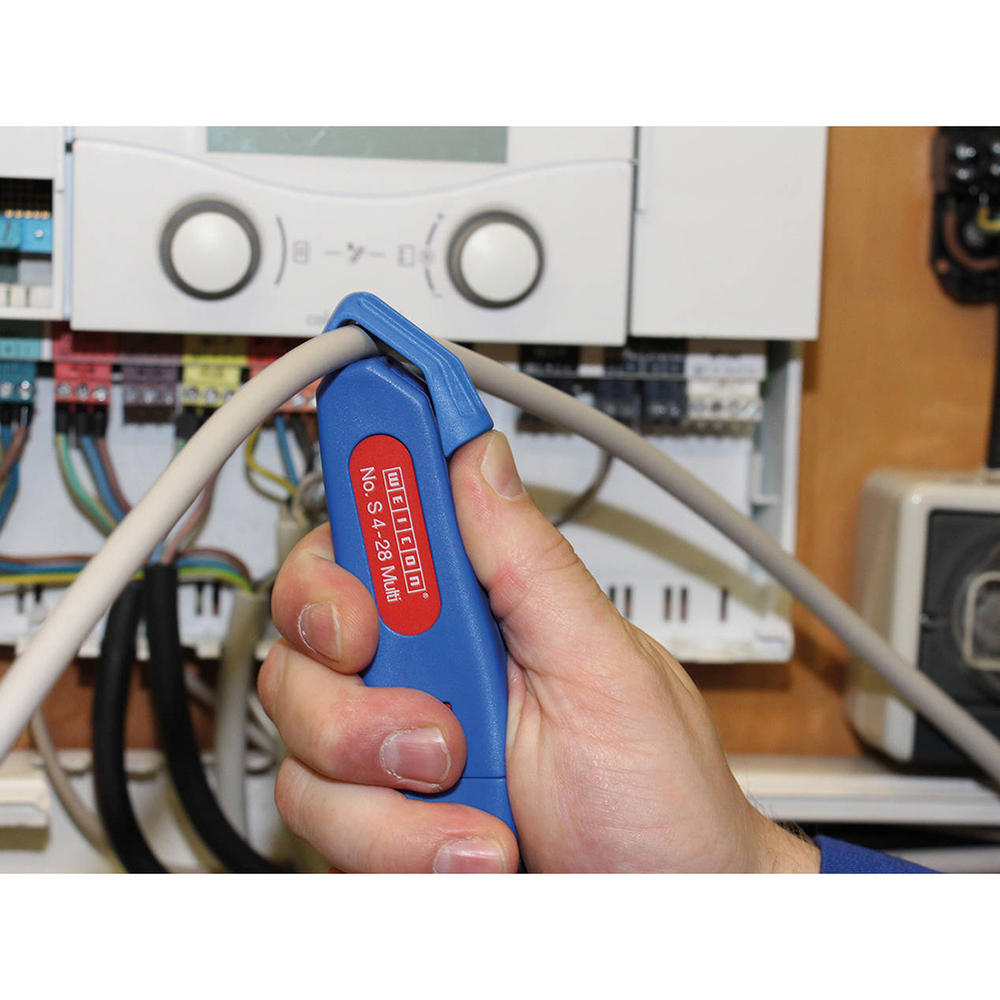

  • Stripping a cable with our Cable Stripper No. S 4 - 28 Multi Tool

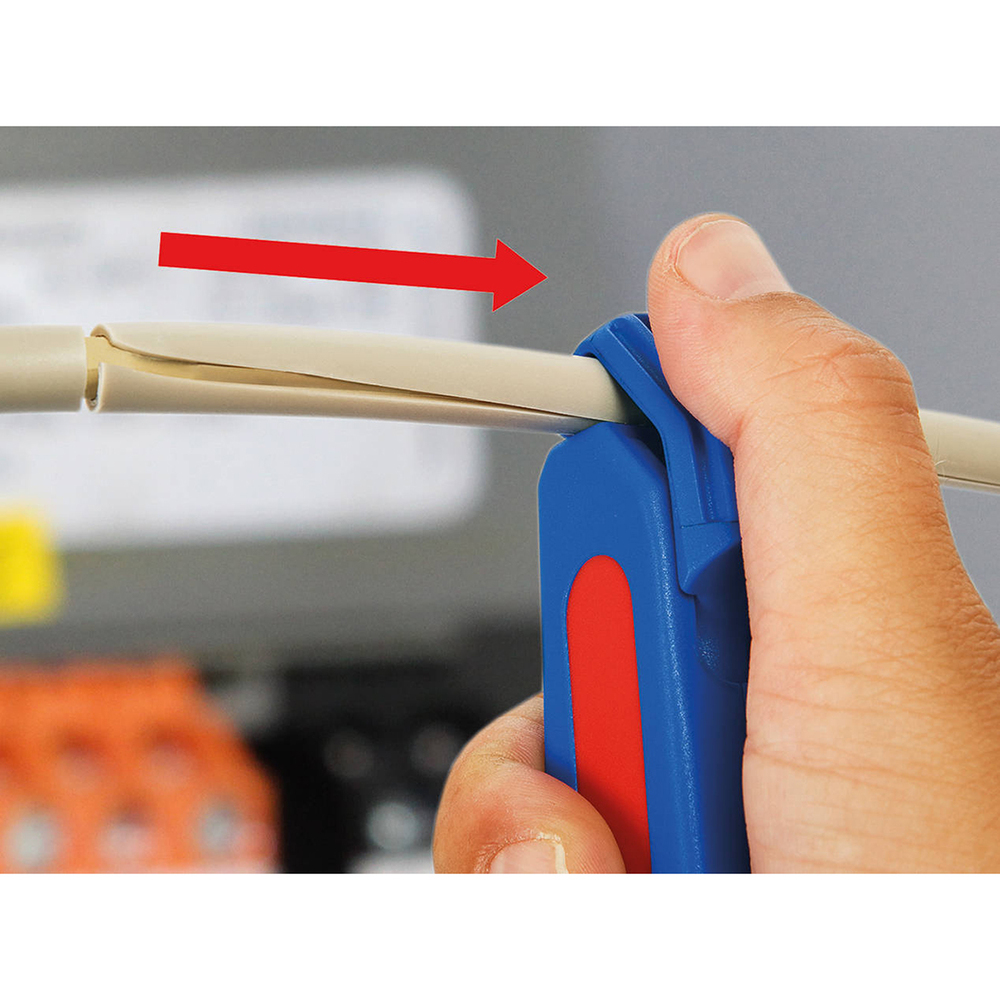

  • Stripping along a multi-core cable with our Cable Stripper No. S 4 - 28 Multi

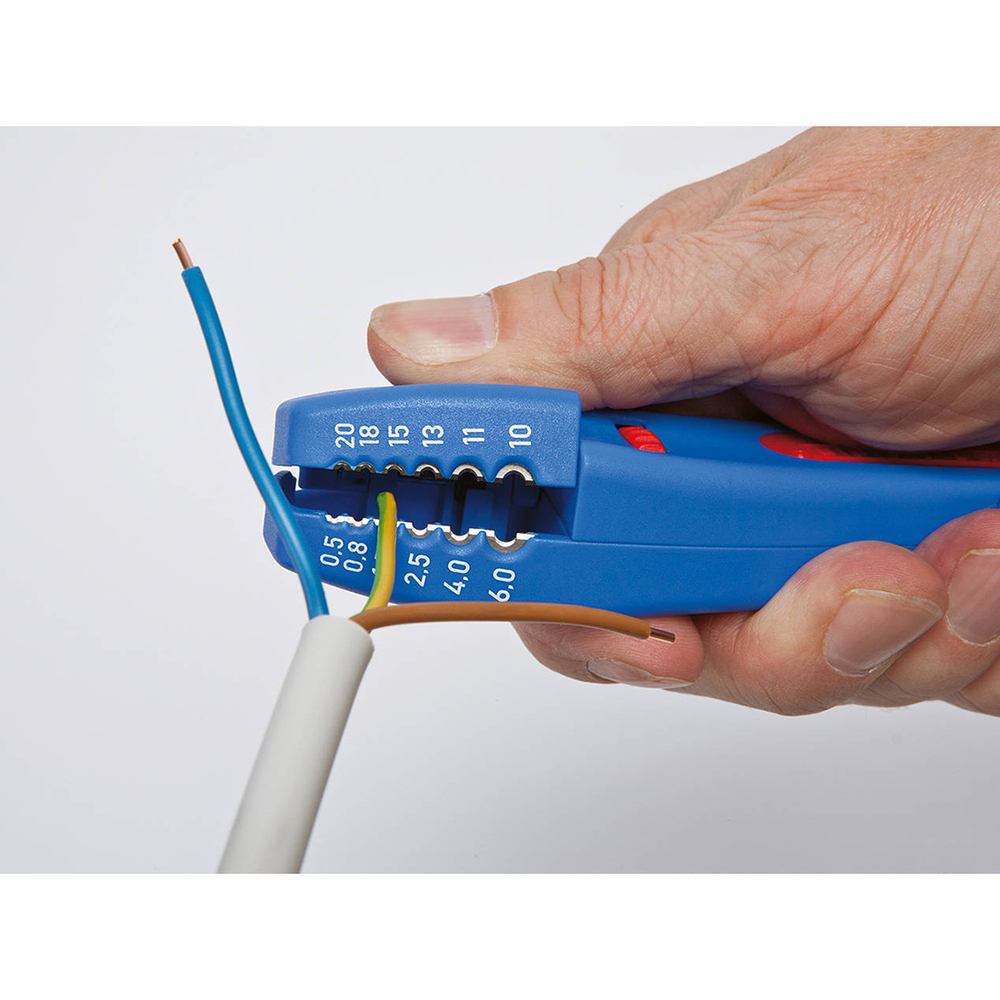

  • Stripping small gauge wires with our Cable Stripper No. S 4 - 28 Multi
$37.77
Inc. GST
$34.34
Ex. GST
Frequently bought together:

Description

  • Precise, fast and safe stripping of cable between 4mm and 28mm diameter with the main blade.
  • Automatic conversion from circular to longitudinal cutting with main blade.
  • Integrated wire stripping function in the handle for fast stripping of wires between 0.5mm² and 6mm².
  • Made in Germany from premium grade materials.

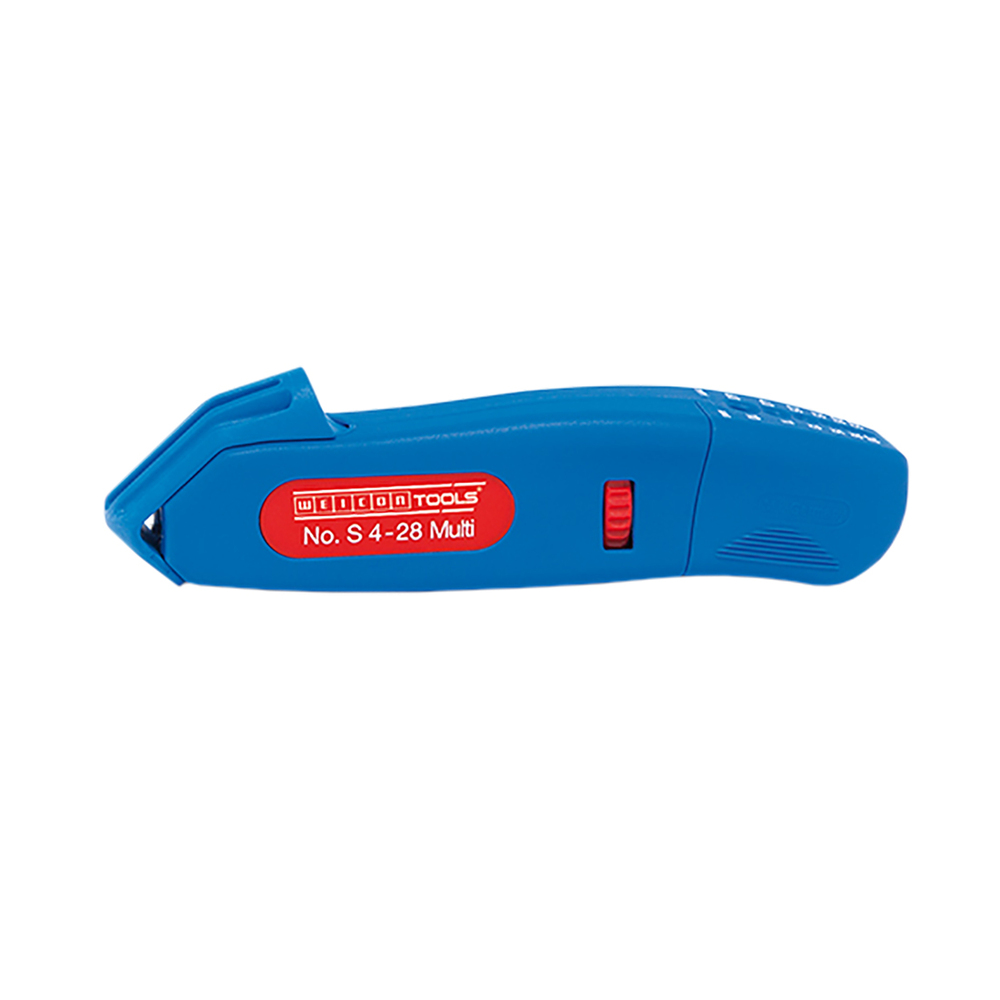

Our Cable Stripper No. S 4 – 28 Multi is a versatile stripping tool that can be used with a large range of cable sizes. This tool combines two distinct functions into one.

The main blade is infinitely adjustable using the rotating wheel in the handle. This allows you to set it so that the tool will precisely strip back the insulation while leaving the conductor untouched. This blade is self-rotating which lets you automatically switch from circular (around the cable) to longitudinal (along the cable) stripping.

The large range of adjustments that can be made to the main blade allows this tool to be used for stripping cables with a cross section between 4mm and 28mm diameter.

Another feature built into this tool is the wire stripper located in the handle. This is ideal for quickly stripping smaller cables and wires. It consists of a series of holes and can accommodate cables and wires between 0.5mm² and 6mm².

Our No. S 4 – 28 Multi Cable Stripper is manufactured by Weicon in Germany from premium grade materials. Weicon have been making cable stripping tools since 1967 and continue to be a world leader when it comes to ease of use, safety, ergonomics and function. This tool is no exception.

The No. S 4 – 28 Cable Stripper Multi is made from insulated, fibreglass reinforced polyamide and utilises premium grade steel blades sourced from Solingen, Germany. These ensure that the tool delivers long lasting performance. It is also safety tested by TUV Nord and very lightweight as it weighs in at just 61gm.

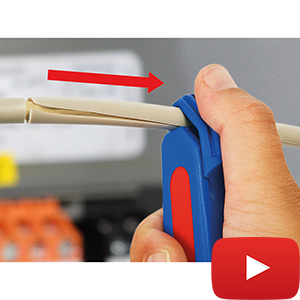

The video available via the link above or on the media tab of this page provides a demonstration of just how easy this tool is to use and shows the stripper removing the outer insulation of a multi-strand cable before individual wires are stripped back using the secondary stripper in the handle.

Downloads & Resources

S4-28 Rotating Blade Stripper Specifications.

Cable Type Fine wired and solid conductors with PVC insulation
Field of Use Cables with an external diameter between 4mm & 28mm
Inner Blade Adjustable & Replaceable
Additional Features / Benefits Strips Conductors between 0.5mm² and 6mm² Cross Section
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 145mm
Weight 61gm
Accessories Replacement Blade Set. Item No. 5010002

S4-28 Multi Cable Stripper Compatability Info.

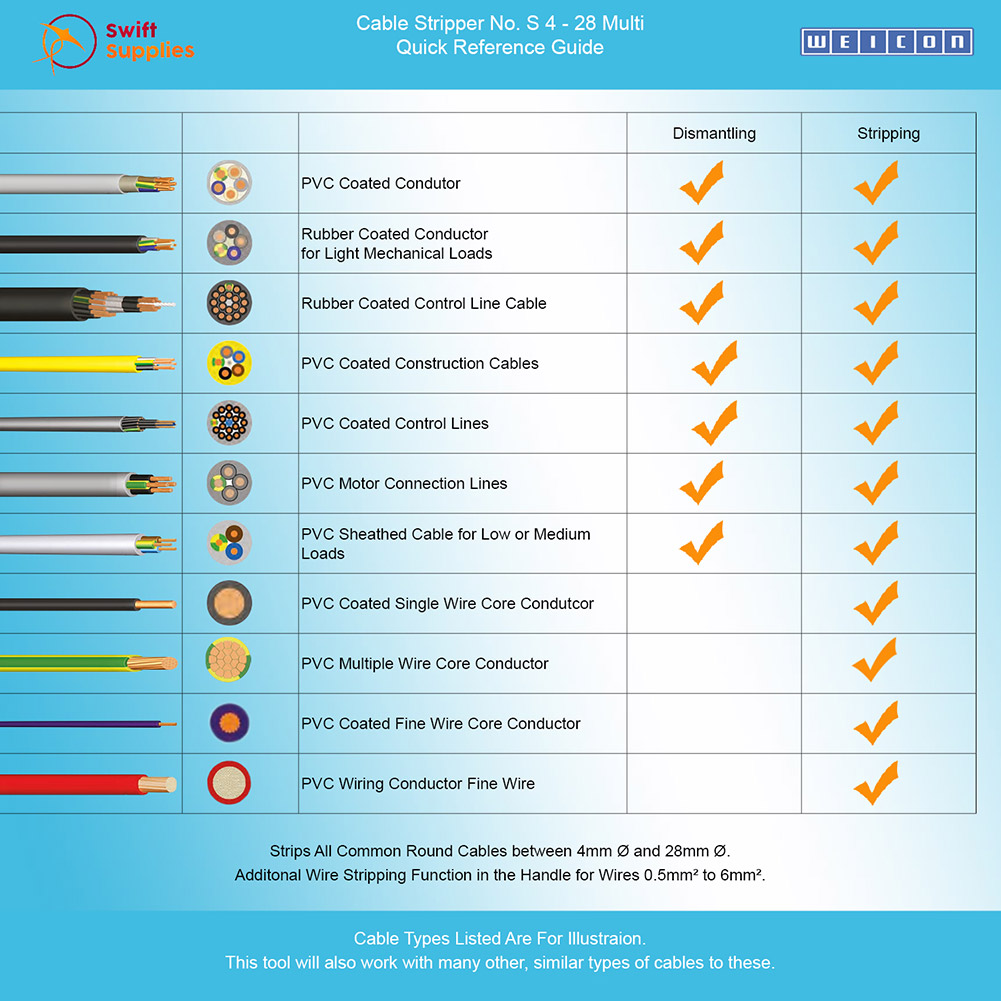

This cable stripping tool is able to effectively strip a very large range of cable types and sizes. The chart below provides a brief overview of some of the more common types it can handle (click to expand). It's not a complete list though, this tool will also be able to precisely strip and dismantle many other cable types of a similar size and sheath.

Cable Stripper No. S 4 - 28 Multi Quick Reference Guide

View AllClose

Additional Information

Colour:
Blue
Food Grade / Potable Water Approvals?:
Not Applicable
